Kenwood eXcelon KFC-X683C 6×8″ 2-Way Custom Fit Speakers
6x8-inch eXcelon custom fit speakers with a carbon-polypropylene Diamond Array cone
$119.99$149.99 (-20%)
Overview

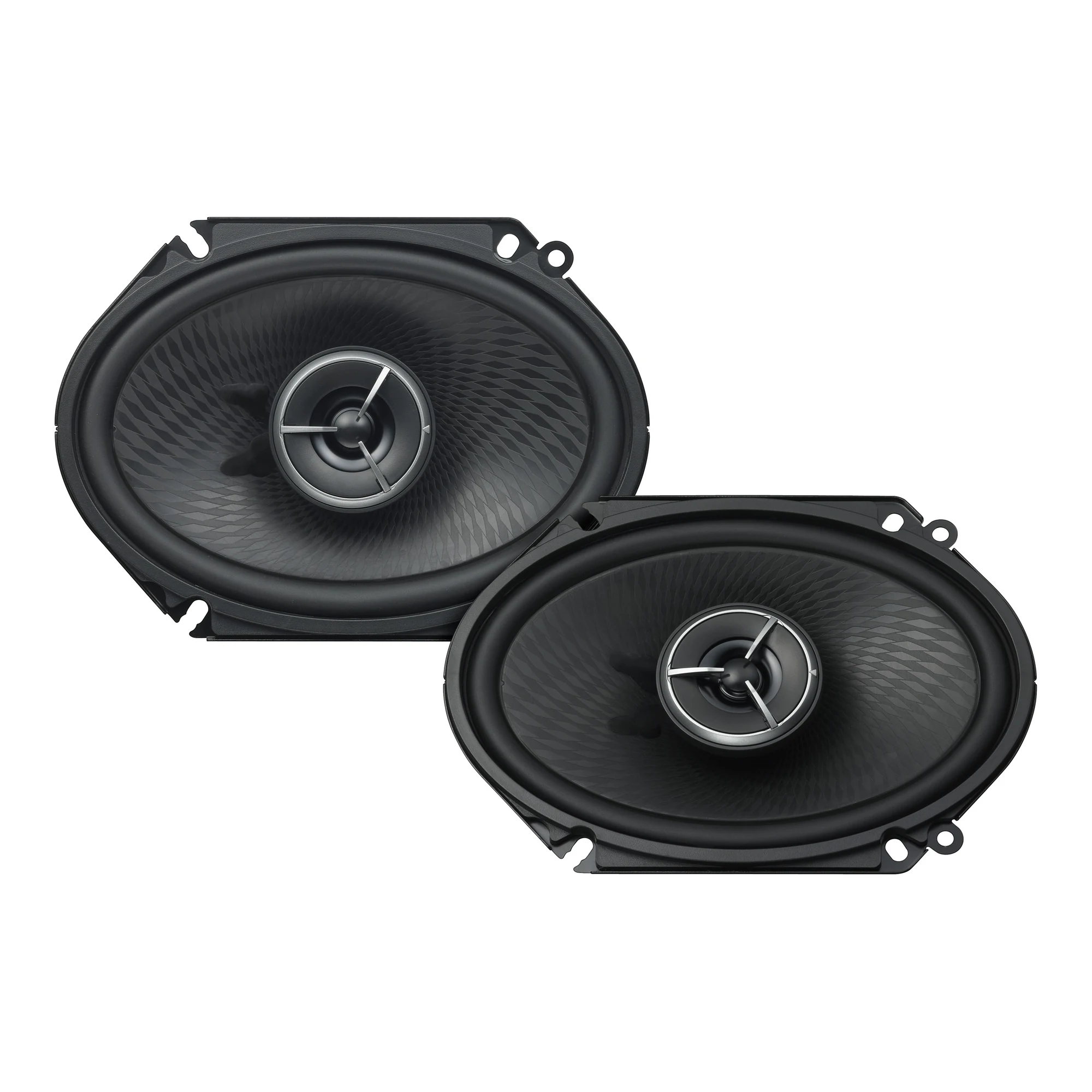

The Kenwood eXcelon KFC-X683C is a pair of 6×8-inch 2-way custom fit car speakers. Each one uses a carbon-polypropylene hybrid woofer cone with Kenwood’s Diamond Array Pattern and a rubber surround, plus a 1-3/16-inch PEI balanced dome tweeter. They handle 60 watts RMS and 180 watts peak at 3 ohms, with 88 dB sensitivity and an 80 Hz to 21 kHz response. Mounting depth is 2-1/2 inches.
Product details
Diamond Array Pattern cone
The KFC-X683C woofer uses a carbon-polypropylene hybrid cone with Kenwood’s Diamond Array Pattern, the textured surface you can see in the photos. The 6 x 8-inch (145 x 204 mm) injection-molded polypropylene cone has a rubber surround, a black steel basket and a ferrite magnet.
PEI balanced dome tweeter
A 1-3/16-inch (30 mm) PEI balanced dome tweeter is mounted at the center of each woofer and handles the high frequencies, making each speaker a complete 2-way unit for a 6×8-inch opening. Kenwood calls the KFC-X683C a custom fit speaker system.
Power and fit
Each speaker handles 60 watts RMS and 180 watts peak at a nominal 3 ohms. Sensitivity is 88 dB at 1 watt/1 meter, and frequency response runs from 80 Hz to 21 kHz. Without the grille, each speaker measures 8 inches (203.7 mm) wide, 5-11/16 inches (145 mm) high and 3-1/8 inches (80 mm) deep, and the mounting depth is 2-1/2 inches (64 mm).
Before you install
Measure the opening and the space behind it in your vehicle. The KFC-X683C needs at least 2-1/2 inches of clear depth behind the mounting surface, its frame measures 8 x 5-11/16 inches without the grille, and the overall depth is 3-1/8 inches. Kenwood does not publish an accessory list for this model, so grilles and mounting hardware are not listed here.
Key features
- 6x8-inch 2-way custom fit coaxial speakers from the Kenwood eXcelon line, sold as a pair
- Carbon-polypropylene hybrid woofer cone with the Diamond Array Pattern
- Rubber surround, black steel basket and ferrite magnet on the woofer
- 1-3/16-inch (30 mm) PEI balanced dome tweeter in each speaker
- Handles 60 watts RMS and 180 watts peak at 3 ohms
- Sensitivity of 88 dB and frequency response from 80 Hz to 21 kHz
- Mounting depth of 2-1/2 inches with a 3-1/8-inch overall depth
Specifications
| Size | 6×8 inch |
|---|---|
| Speaker Type | Coaxial |
| Brand | Kenwood |
| Series | eXcelon |
| Model | KFC-X683C |
| Product type | 6×8" 2-way custom fit speakers (pair) |
| Woofer | 6 x 8 in (145 x 204 mm) carbon-PP hybrid cone, Diamond Array Pattern |
| Surround | Rubber |
| Basket | Steel, black |
| Woofer magnet | Ferrite |
| Tweeter | 1-3/16 in (30 mm) PEI balanced dome |
| RMS power | 60 W |
| Peak power | 180 W |
| Impedance | 3 ohms |
| Sensitivity | 88 dB (1 W/1 m) |
| Frequency response | 80 Hz – 21 kHz |
| Mounting depth | 2-1/2 in (64 mm) |
| Dimensions without grille | 8 x 5-11/16 x 3-1/8 in (203.7 x 145 x 80 mm) |
Important notes
- Impedance is 3 ohms. Check that your receiver or amplifier is rated for a 3-ohm load.
- Mounting depth is 2-1/2 inches. Check the space behind the mounting location before installing.
- Kenwood does not publish an accessory list for this model, so grilles and hardware are not listed here.
