Kenwood DRV-A510WDP Front & Rear GPS Wi-Fi Dash Cam
Dual-pack dash cam with 2K front, 1080p rear, GPS and Wireless Link
$249.99
Overview
The Kenwood DRV-A510WDP is a Dual Pack dashboard camera system with a 2-inch color screen, built-in GPS and Wireless Link for the Kenwood Dash Cam Manager app. The front camera records in 2K (2560 x 1440) at 30 fps, and the included rear camera records Full HD 1080p. A G-sensor can lock files after a hard impact, and parking mode is available with the optional CA-DR1130 hardwire kit, sold separately. A microSD card is required and not included.
Product details
2K front and Full HD rear

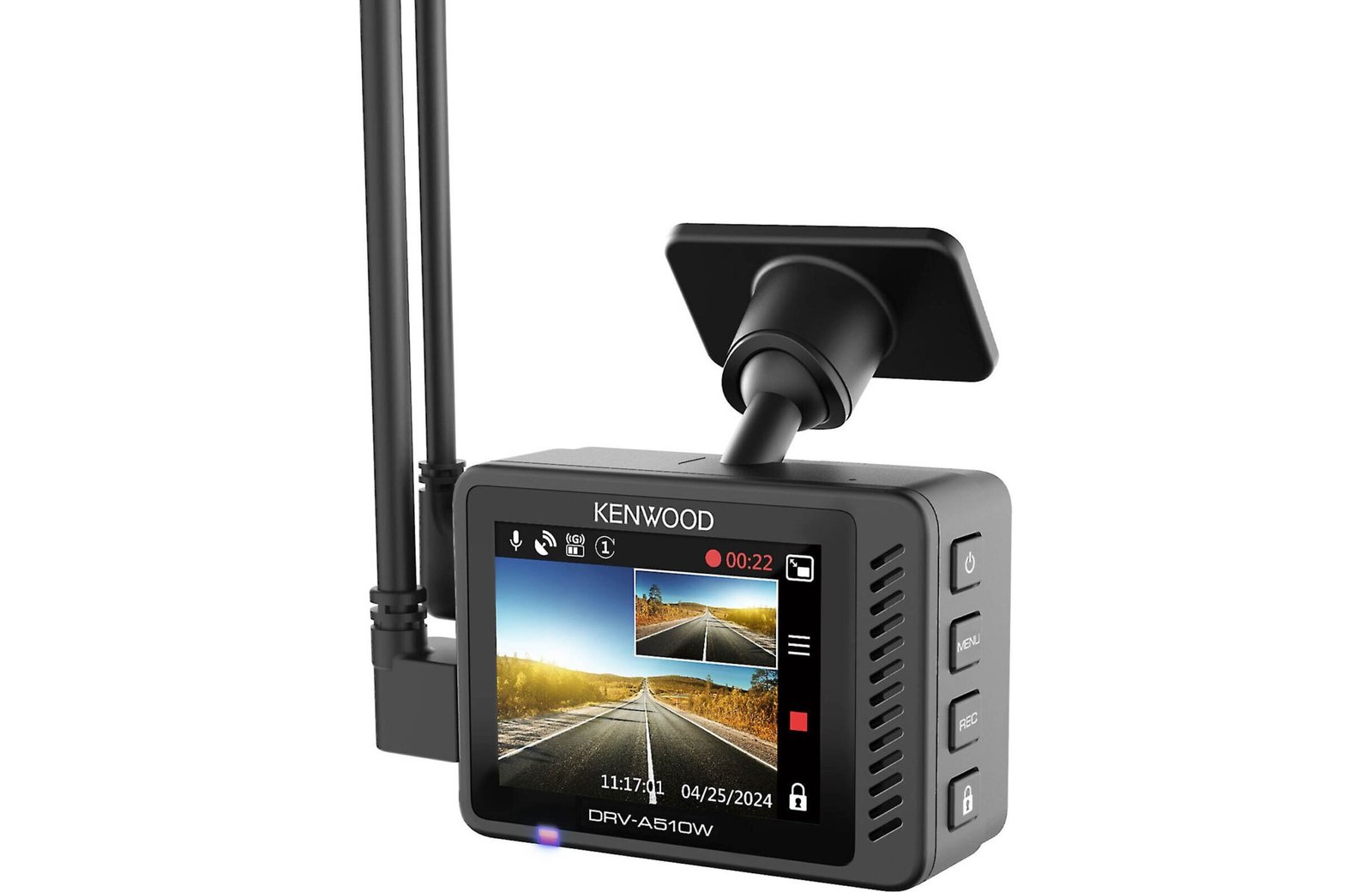

The Dual Pack pairs a front camera that records 2K video at 2560 x 1440 and 30 fps with an included rear camera that records 1920 x 1080. The front lens is rated 136 degrees at F1.8; the rear lens is 131.6 degrees at F2.0 and carries an IP67 dust and water rating in Kenwood’s manual. A 2-inch color screen (320 x 240) lets you aim the camera and play back clips in the vehicle.
GPS, G-sensor and Wireless Link
GPS data from the magnetic mount can be written into recordings so you can review location and speed later. The built-in G-sensor can protect files after a hard impact, and you can also lock a clip manually. Wireless Link works with Kenwood’s Dash Cam Manager app so you can preview, control and download video from a compatible phone. Built-in microphone and speaker support in-unit playback.
Power, storage and parking mode
The camera runs from the supplied Type-C car power cable on 12-24 V and uses a built-in super capacitor. It accepts microSD / SDHC cards up to 256 GB (not included). Parking mode needs the optional CA-DR1130 hardwire kit for constant power. The front unit measures about 2.3 x 1.68 x 0.96 inches and weighs 70 g.
Key features
- Dual Pack dash cam with included rear camera for front and rear recording
- Front records 2K (2560 x 1440) at 30 fps; rear records Full HD 1080p at 30 fps
- 2-inch color LCD (320 x 240) for aiming and in-car playback
- Built-in GPS via the magnetic mount for location and speed data in recordings
- G-sensor file protection after a hard impact, plus manual file lock
- Wireless Link with Kenwood Dash Cam Manager app on a compatible phone
- Rear camera IP67 rated for dust and water resistance (Kenwood manual)
- microSD / SDHC support up to 256 GB (card not included)
- 12-24 V operation with supplied Type-C car power cable and super capacitor
- Parking mode with optional CA-DR1130 hardwire kit, sold separately
Specifications
| Weight | 2 lbs |
|---|---|
| Dimensions | 4 × 3.25 × 6.5 in |
| Brand | Kenwood |
| Model | DRV-A510WDP |
| Product type | Front and rear dashboard camera Dual Pack |
| Front recording | 2K (2560 x 1440) @ 30 fps |
| Rear recording | Full HD (1920 x 1080) @ 30 fps |
| Screen | 2.0 in, 320 x 240 |
| Front lens | 136 deg, F1.8 |
| Rear lens | 131.6 deg, F2.0 |
| Rear protection | IP67 (Kenwood manual) |
| GPS | Yes (magnetic mount) |
| G-sensor | Yes |
| Wireless Link | Kenwood Dash Cam Manager app |
| Storage | microSD / SDHC up to 256 GB (not included) |
| Power | 12-24 V DC; 5 V / 1.5 A; super capacitor |
| Parking mode | Optional CA-DR1130 hardwire kit |
| Unit dimensions | 2.3 x 1.68 x 0.96 in (5.85 x 4.28 x 2.44 cm) |
| Weight | 70 g |
| Camera Type | Dash Cam |
Important notes
- A microSD card is required and is not included. Kenwood recommends a quality UHS Speed Class 3 card.
- Parking mode needs the optional CA-DR1130 hardwire kit for constant 12/24 V power.
- The supplied Type-C car power cable is for power only and does not transfer data. Kenwood does not support USB-C PD fast-charge cables for this camera.

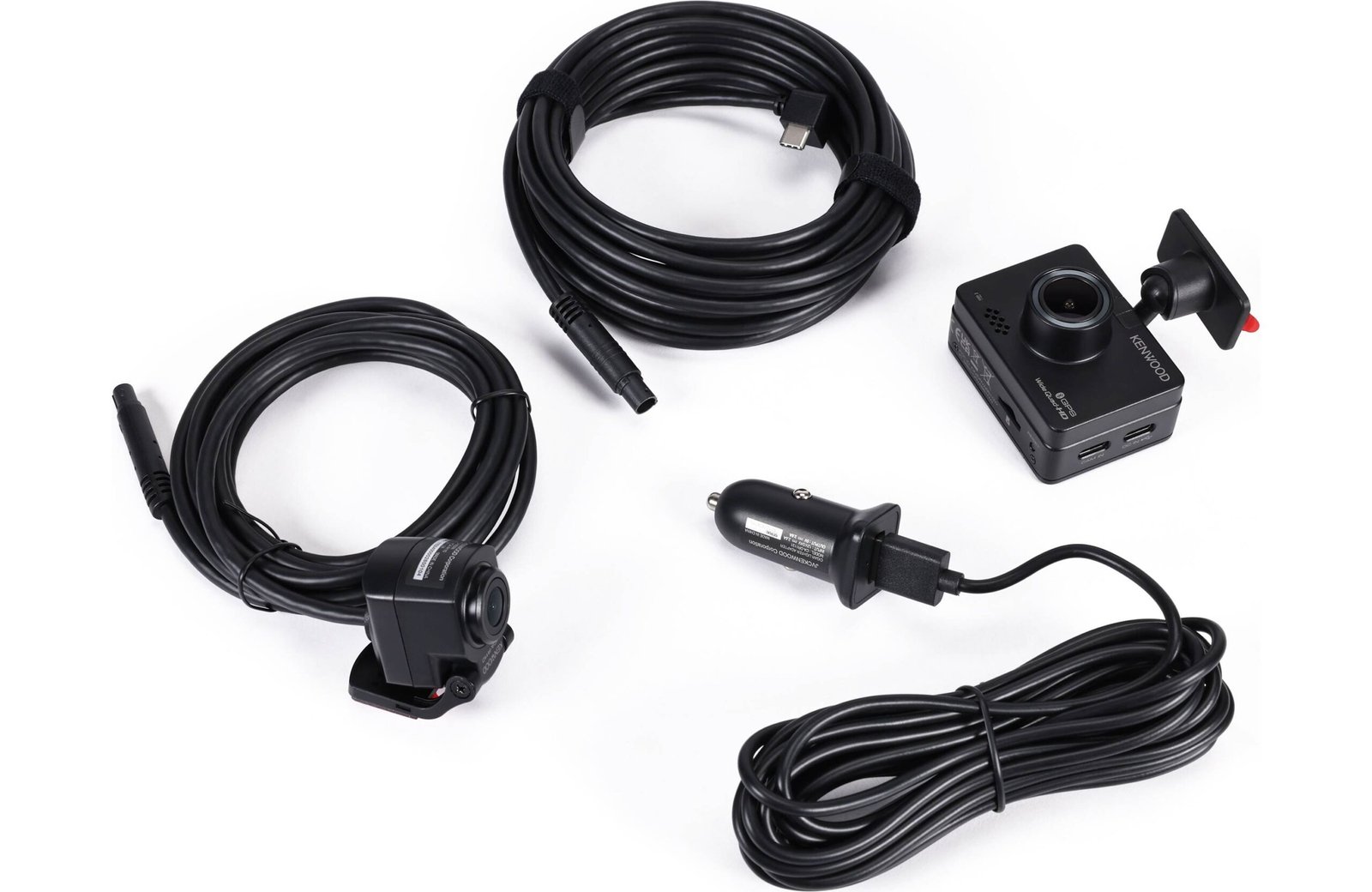

What's in the box
- Kenwood DRV-A510W front camera (Dual Pack)
- Rear camera (Dual Pack)
- Adhesive mount
- Car power cable (Type-C)
- USB car charger
- Cable clips
- Static side film
