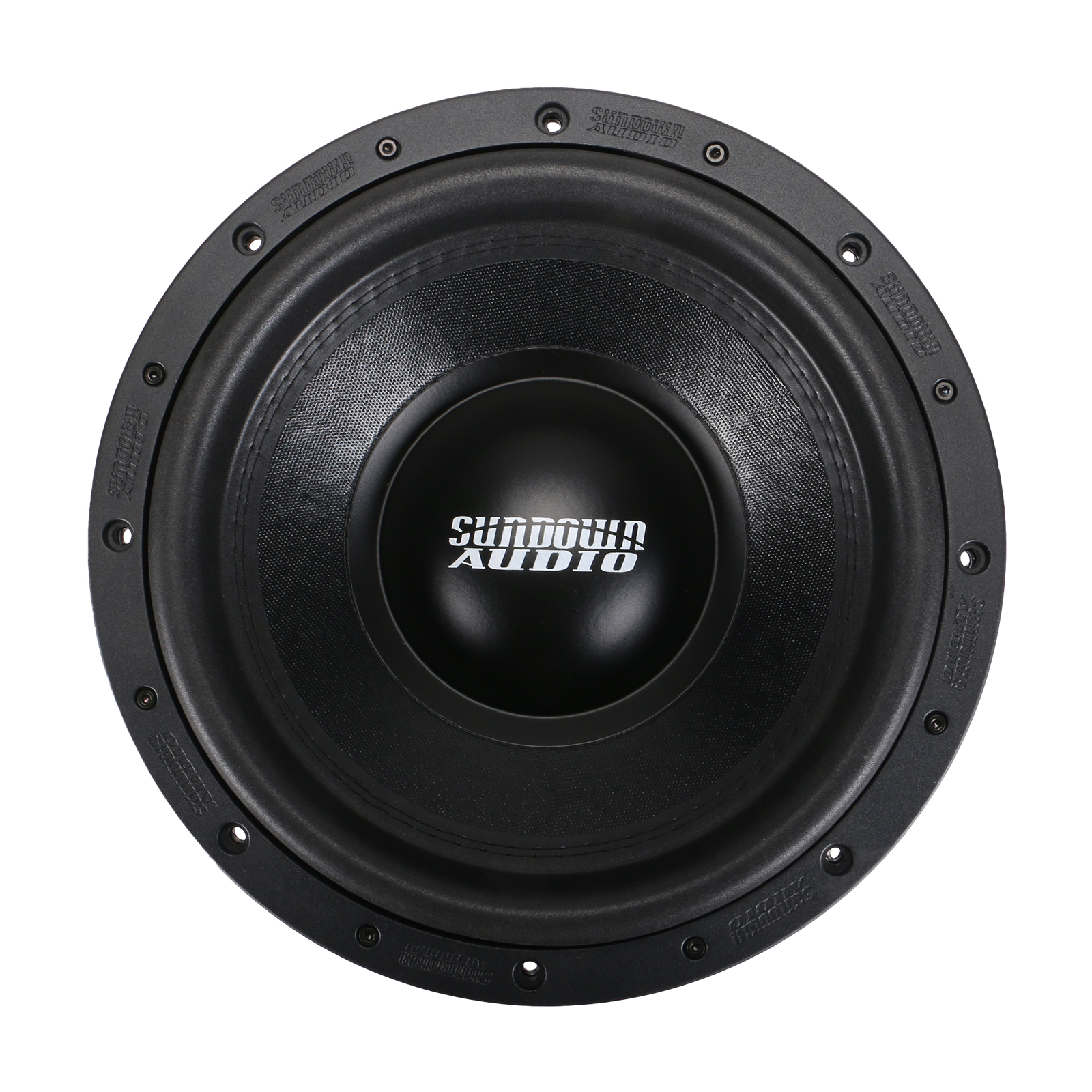

Sundown SA-Series v.3 12″ D4 Car Audio Subwoofer

1500 W RMS 12-inch dual 4-ohm cast-frame subwoofer

$429.99

In stock

Overview

The Sundown SA-Series v.3 12-inch D4 is rated 1500 W RMS / 3000 W peak on dual 4-ohm voice coils with about 22 mm Xmax. A 2.75-inch aluminum voice coil former, Faraday rings, cast aluminum frame, and multi-layer spider target high excursion with lower distortion. Recommended sealed volume is about 1.0 cu ft; ported about 1.75 cu ft near 35 Hz.

Want it installed? Chat with us for an installation quote. We'll add the labor right to your cart. Chat about installation
Compare
SKU: SWSAV312D4 Category: Brand:
Product details

v.3 upgrades

Versus SA v.2, the v.3 adds coil length for ~22 mm linear Xmax, taller cones, wider spiders, and a locked-in Faraday ring held by the T-yoke.

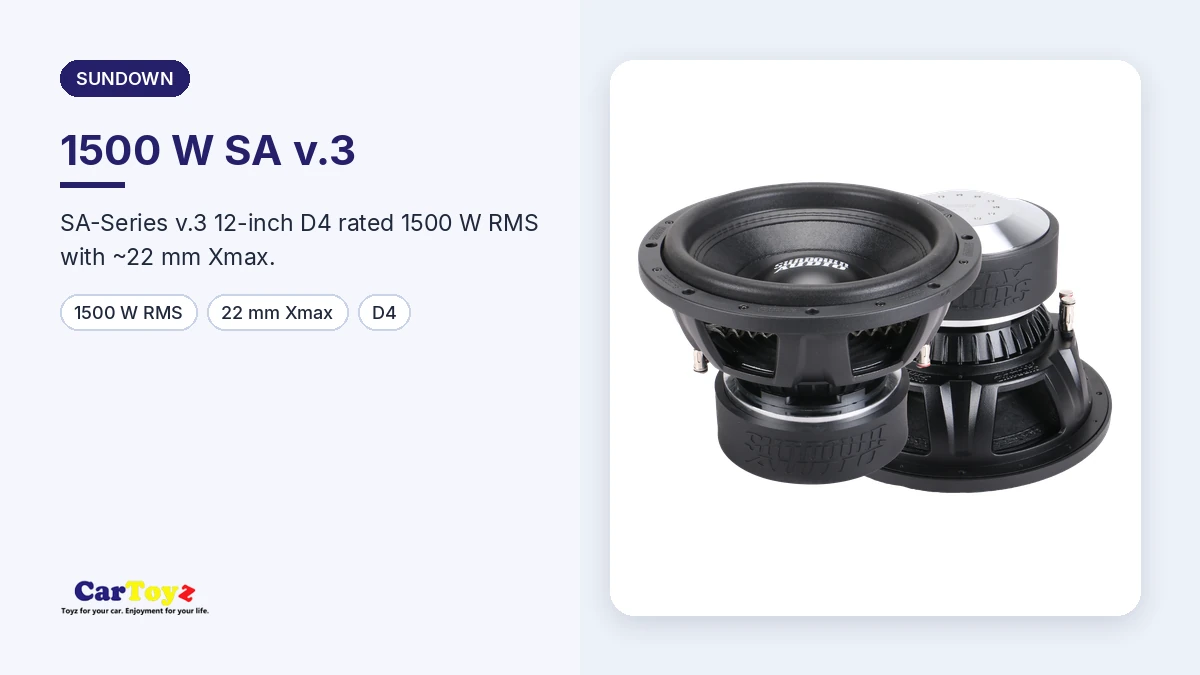

Sundown SA12D4V3 graphic: 1500 W SA v.3

Motor and cooling

Vented magnetic gap with solid pole and vent channels, aluminum 2.75-inch former, magnet ID Faraday ring, and pole-cap Faraday ring for smoother response.

Sundown SA12D4V3 graphic: Faraday Ring Motor

Enclosure guidance

Sealed about 1.0 cu ft; ported about 1.75 cu ft with 26 sq in port area at 35 Hz. Mounting depth about 8.4 inches.

Key features
  • 12-inch SA-Series v.3 subwoofer
  • 1500 W RMS / 3000 W peak
  • Dual 4-ohm voice coils (D4)
  • About 22 mm one-way linear Xmax
  • 2.75" aluminum voice coil former
  • Magnet ID and pole-cap Faraday rings
  • Cast aluminum frame
  • Stitched double XL tinsel leads
  • Spring-loaded terminals
Specifications
Weight 33.3 lbs
Dimensions 15.5 × 15.8 × 15 in
Brand

Sundown

Model

SA v.3 12 D4

SKU

SA12D4V3

Product type

Subwoofer

Size

12 inch

Voice coils

Dual 4 ohm

RMS power

1500 W

Peak power

3000 W

Xmax

22 mm

Mounting depth

8.4"

Sealed volume

1.0 cu ft

Ported volume

1.75 cu ft

Size

12 inch

Important notes
  • Requires a compatible amplifier and enclosure (sold separately)
  • Dual 4-ohm coils — make sure wiring for the intended final load
  • Deep mounting depth (~8.4") — check clearance
  • Professional installation recommended
What's in the box
  • Sundown SA-Series v.3 12" D4 subwoofer
  • Mounting hardware as packaged
Manuals and downloads
