Kenwood eXcelon KFC-X134 5-1/4″ 2-Way Car Speakers
5-1/4-inch eXcelon 2-way speakers with a soft dome tweeter and grilles included
$79.99$99.99 (-20%)
Overview
The Kenwood eXcelon KFC-X134 is a pair of 5-1/4-inch 2-way car speakers. Each speaker pairs an oversized 130 mm polypropylene woofer cone with a rubber surround and a 1-inch soft dome tweeter with a neodymium magnet. They handle 40 watts RMS (CTA-2031) and 160 watts peak at 4 ohms, with 87 dB sensitivity and a 76 Hz to 21 kHz response. Grilles and mounting hardware are included.
Product details
Two-way speaker design

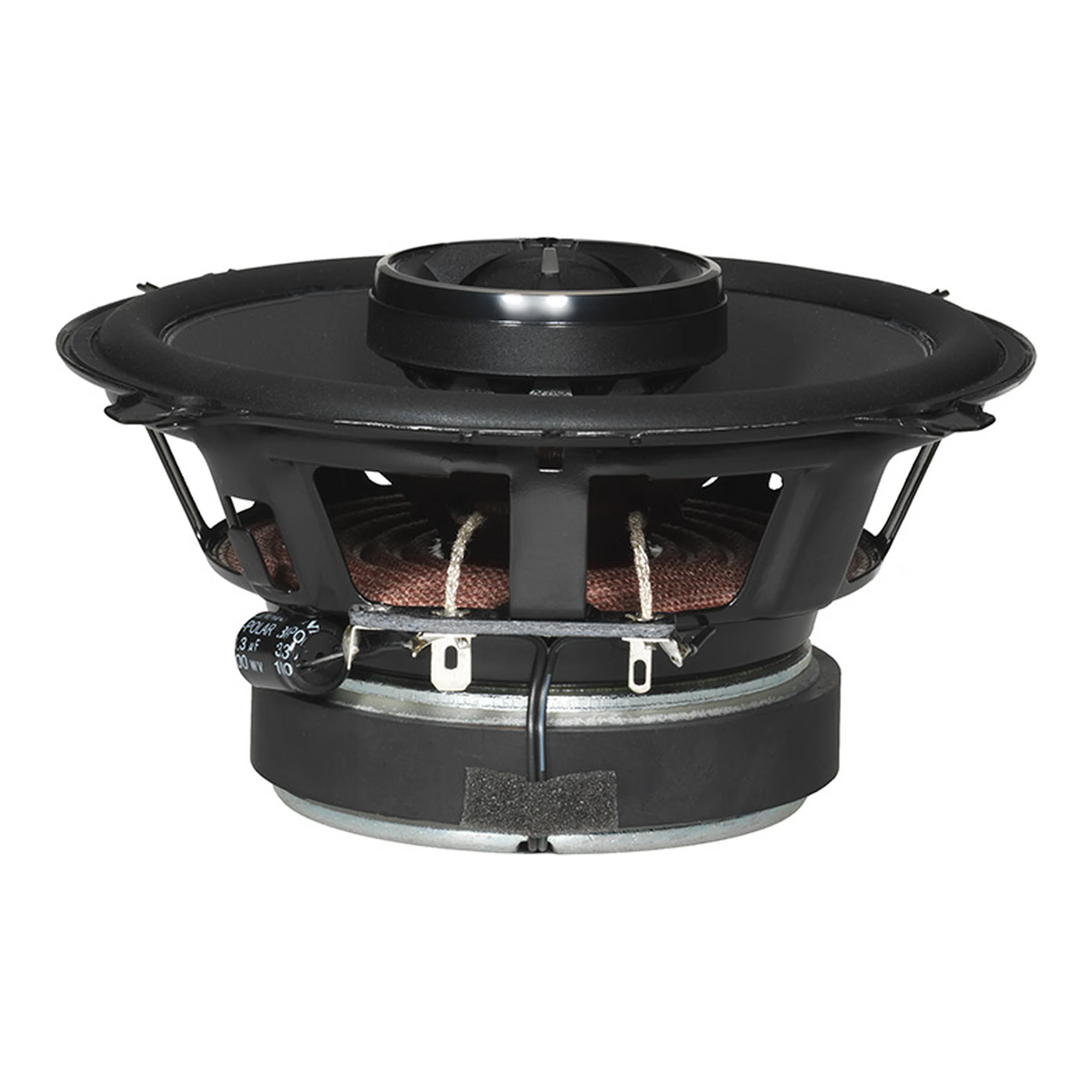

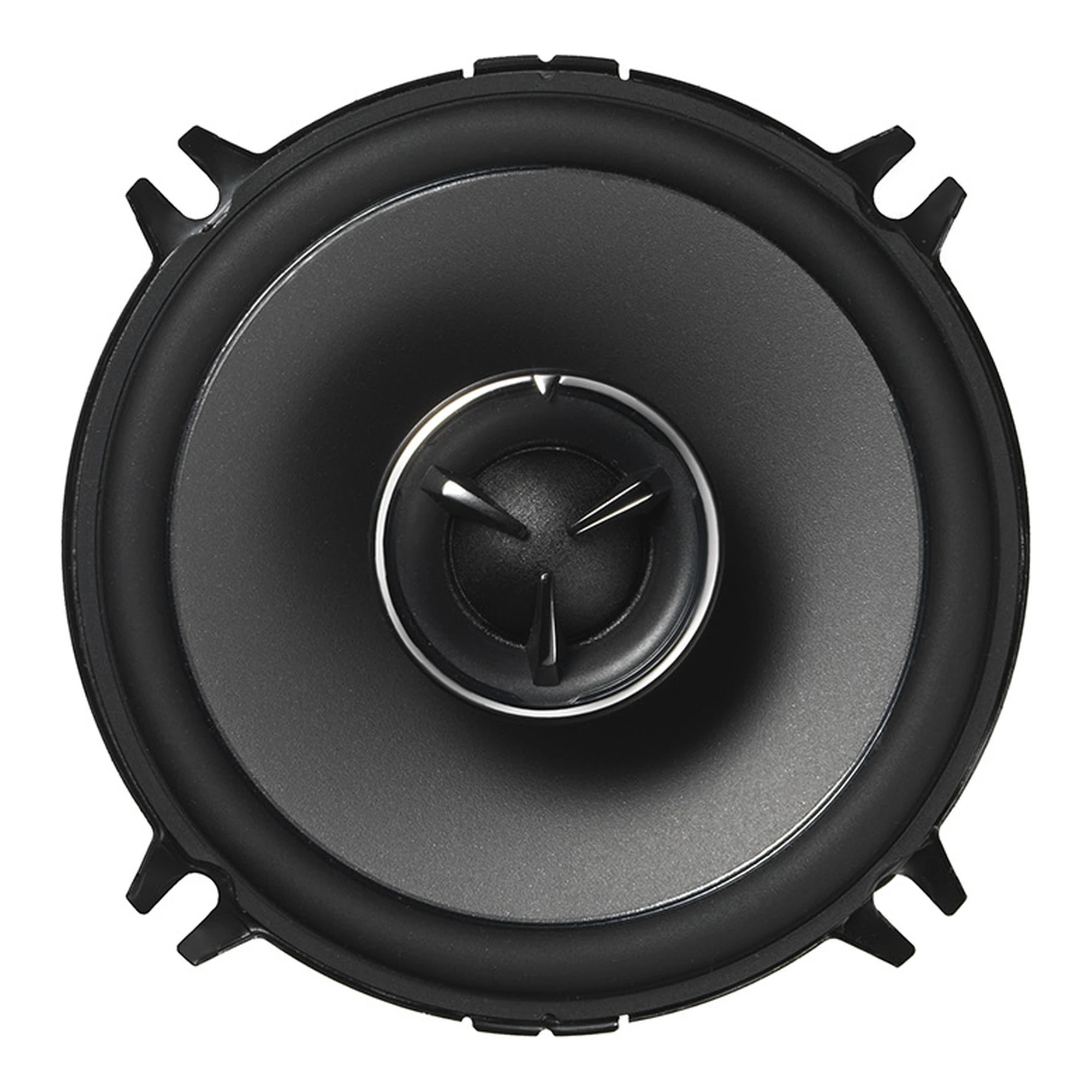

The KFC-X134 uses an oversized 130 mm (5-1/4-inch) injection-molded polypropylene woofer cone in gray, with a rubber surround, a steel basket and a ferrite magnet. A 1-inch (25 mm) soft dome tweeter with a neodymium magnet is mounted on the woofer frame, with a -6 dB per octave network for the tweeter.
Power and response
Each speaker handles 40 watts RMS under the CTA-2031 standard and 160 watts peak. Impedance is 4 ohms, sensitivity is 87 dB at 1 watt/1 meter, and frequency response runs from 76 Hz to 21 kHz.
Fit and dimensions
The cutout diameter is 4-3/4 inches (120 mm) and the mounting depth is 2-3/8 inches (60 mm). The tweeter rises 9/16 inch (14 mm). With the grille fitted, each speaker measures 6-5/16 x 6-5/16 x 3-3/16 inches (160 x 160 x 81.5 mm); without it, 5-3/16 x 5-3/16 x 2-15/16 inches (132 x 132 x 74 mm).
Included hardware
Kenwood includes two grilles, eight 4 x 25 mm binding head tapping screws, eight speed nuts, a 0.3 m speaker cord set and adhesive tape. Before you install, check the 2-3/8-inch mounting depth and the 4-3/4-inch cutout against the speaker location in your vehicle, and allow for the tweeter height behind the grille.
Key features
- 5-1/4-inch 2-way car speakers from the Kenwood eXcelon line, sold as a pair
- Oversized 130 mm injection-molded polypropylene woofer cone with a rubber surround
- 1-inch (25 mm) soft dome tweeter with a neodymium magnet
- Handles 40 watts RMS (CTA-2031) and 160 watts peak at 4 ohms
- Sensitivity of 87 dB and frequency response from 76 Hz to 21 kHz
- Needs a 4-3/4-inch cutout and 2-3/8 inches of mounting depth
- Grilles, tapping screws, speed nuts, speaker cords and adhesive tape are included
Specifications
| Size | 5.25 inch |
|---|---|
| Speaker Type | Coaxial |
| Brand | Kenwood |
| Series | eXcelon |
| Model | KFC-X134 |
| Product type | 5-1/4" 2-way car speakers (pair) |
| Woofer | Oversized 130 mm (5-1/4 in) injection PP cone, rubber surround |
| Tweeter | 1 in (25 mm) soft dome, neodymium magnet |
| Basket | Steel |
| Woofer magnet | Ferrite |
| RMS power | 40 W (CTA-2031) |
| Peak power | 160 W |
| Impedance | 4 ohms |
| Sensitivity | 87 dB (1 W/1 m) |
| Frequency response | 76 Hz – 21 kHz |
| Cutout diameter | 4-3/4 in (120 mm) |
| Mounting depth | 2-3/8 in (60 mm) |
| Tweeter height | 9/16 in (14 mm) |
| Dimensions with grille | 6-5/16 x 6-5/16 x 3-3/16 in (160 x 160 x 81.5 mm) |
| Dimensions without grille | 5-3/16 x 5-3/16 x 2-15/16 in (132 x 132 x 74 mm) |
| Grilles | Included |
Important notes
- Mounting depth is 2-3/8 inches (60 mm). Check the space behind the mounting location before installing.
- The tweeter rises 9/16 inch above the mounting surface, so check grille clearance at the speaker location.
What's in the box

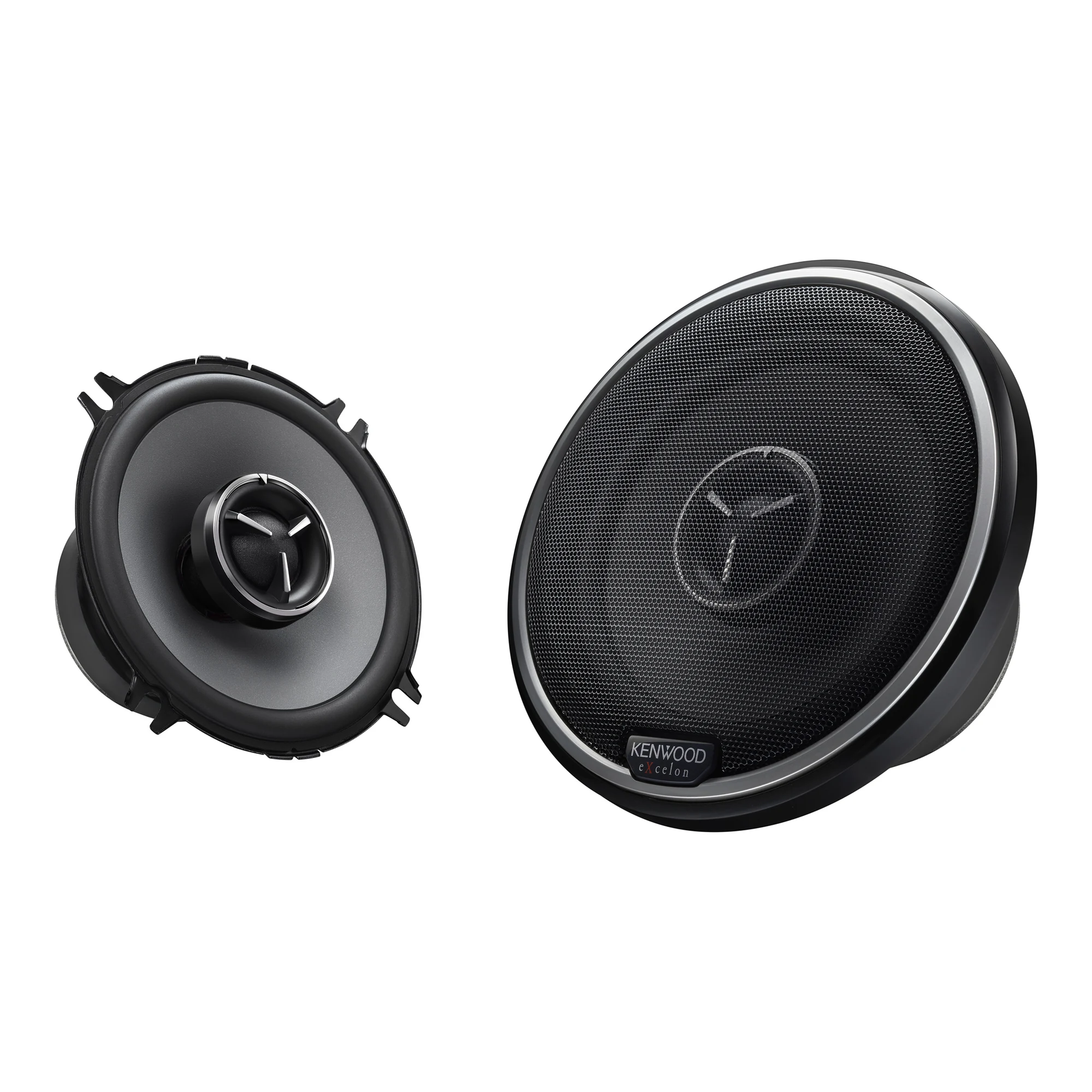

- Kenwood eXcelon KFC-X134 speakers (pair)

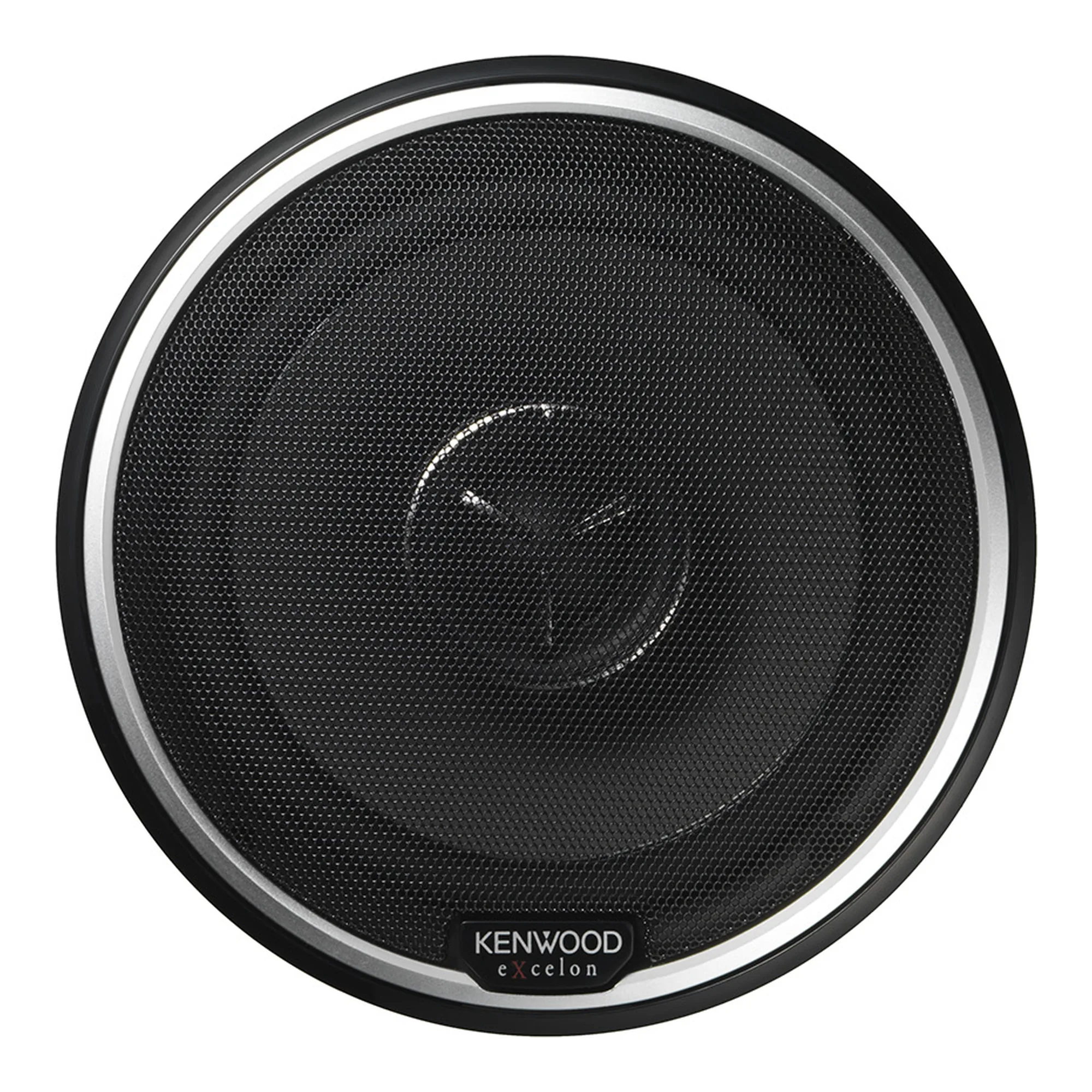

- Grilles (2)
- Binding head tapping screws 4 x 25 mm (8)
- Speed nuts (8)
- Speaker cord set (0.3 m)
- Adhesive tape
