Kenwood P-HD1F eXcelon Harley Front Audio Kit
XM160-2 amp and XM65F speakers for select 2014-up Glides
$729.99
Overview
The Kenwood eXcelon P-HD1F is a plug-and-play front audio package for select 2014-up Harley-Davidson Street Glide, Ultra and Road Glide models. It pairs one XM160-2 Class-D 2-channel amplifier with a pair of XM65F 6.5-inch 2-way speakers, plus model-specific mounting plates, Street Glide metal-mesh grilles and harnesses. Speaker-level inputs work with the Harley OEM radio or an aftermarket receiver, and a bypass port supports later expansion.
Product details

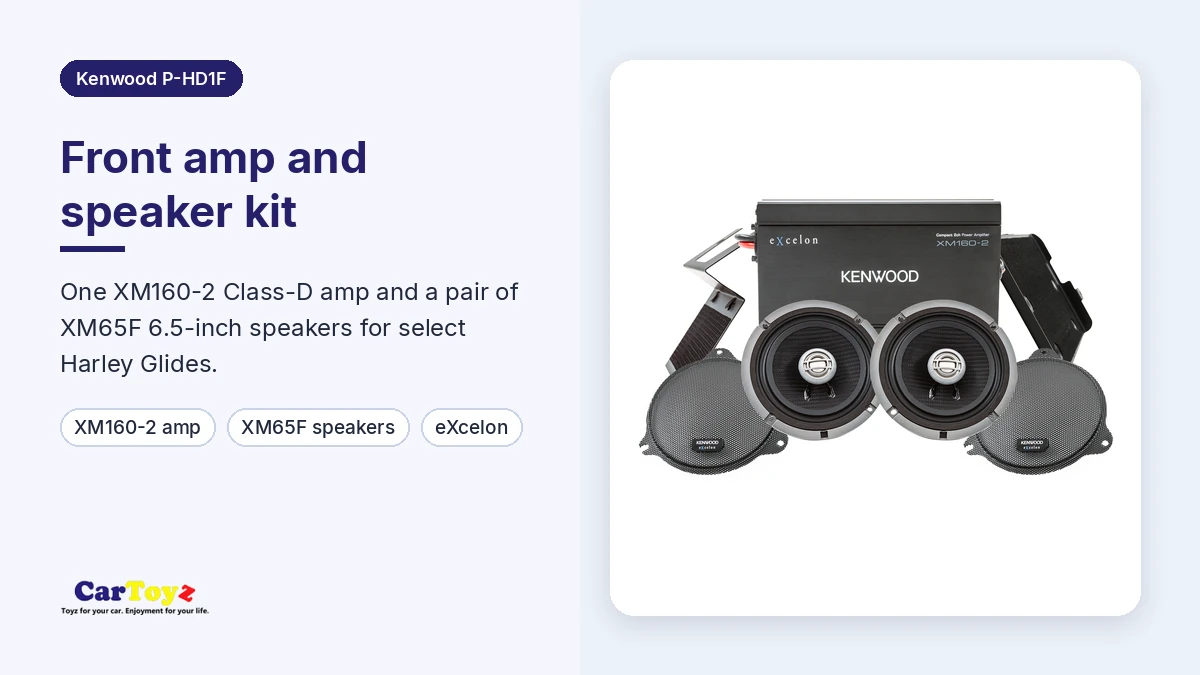

Front amp and speakers in one kit
The P-HD1F combines one XM160-2 Class-D 2-channel amplifier (80 W x 2 RMS at 2 ohms) with a pair of XM65F 6.5-inch 2-way speakers. Kenwood designs the package for plug-and-play installs on select 2014-up Harley touring models without a radio flash.

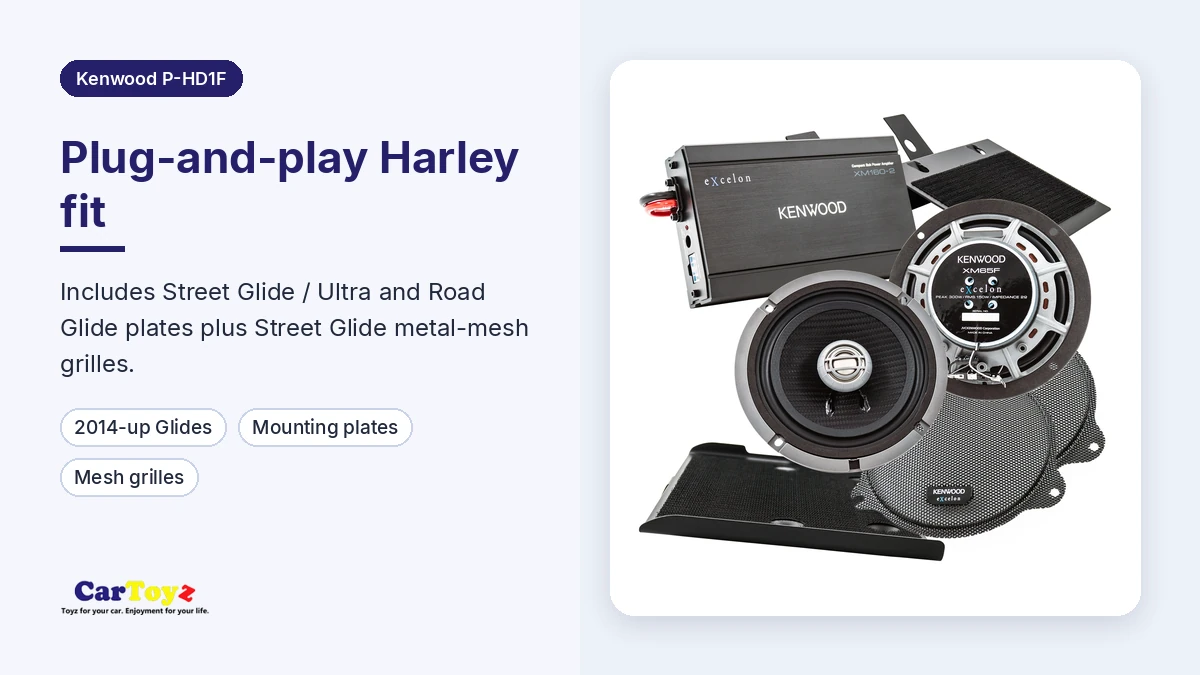

Harley-specific hardware
The kit includes Street Glide / Ultra and Road Glide mounting plates, Street Glide metal-mesh grilles, and plug-and-play power, speaker and input wiring. Speaker-level inputs work with the Harley OEM radio or an aftermarket receiver. A bypass port supports later system expansion.

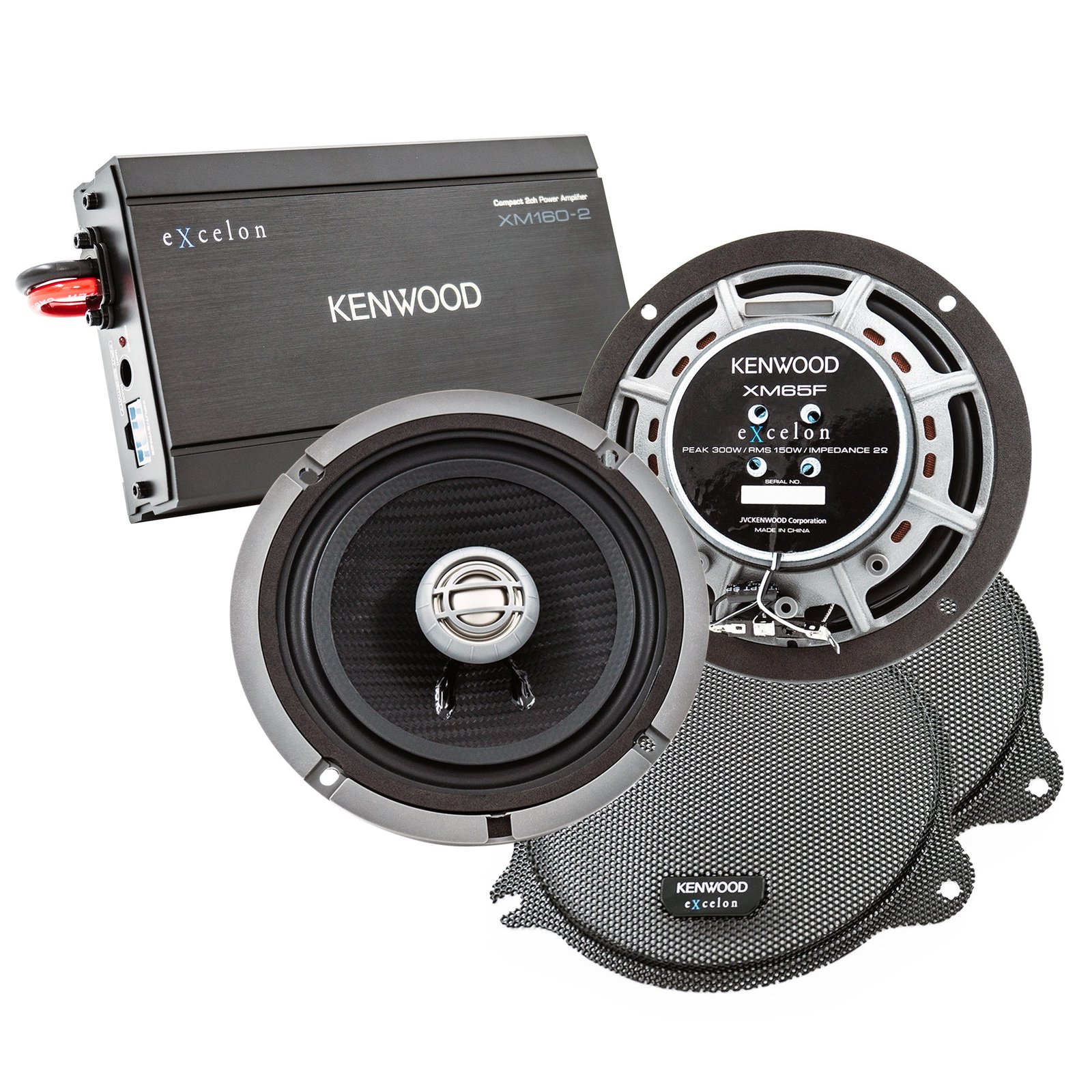

XM65F speakers
Each XM65F uses an IMPP woofer cone and a 1-inch PEI dome tweeter. Kenwood lists 2-ohm impedance, 2.25-inch mounting depth, 92 dB sensitivity, 40 Hz–25 kHz response, 150 W RMS and 300 W peak power handling per speaker.
Key features
- eXcelon front audio package: 1x XM160-2 amp + pair of XM65F 6.5-inch speakers
- 80 W x 2 RMS at 2 ohms Class-D amplification
- Plug-and-play power, speaker and input wiring; no radio flash required
- Street Glide / Ultra and Road Glide mounting plates included
- Street Glide metal-mesh grilles included
- Speaker-level input for Harley OEM radio or aftermarket receiver
- Bypass port for later system expansion
- XM65F: 2 ohm, 150 W RMS / 300 W peak, 2.25 in mounting depth
Specifications
| Brand | Kenwood |
|---|---|
| Model | P-HD1F |
| Product type | Motorcycle front amplifier and speaker package |
| Kenwood range | eXcelon Motorsports |
| Amplifier | XM160-2 Class-D 2-channel (qty 1) |
| Amplifier power | 80 W x 2 RMS at 2 ohms |
| Speakers | XM65F 6.5-inch 2-way (pair) |
| Speaker impedance | 2 ohm |
| Speaker power | 150 W RMS / 300 W peak (each) |
| Speaker sensitivity | 92 dB |
| Frequency response | 40 Hz – 25 kHz |
| Mounting depth | 2.25 in |
| Tweeter | 1 in PEI dome |
| Inputs | Speaker-level OEM or aftermarket |
| Included hardware | Street Glide/Ultra plate; Road Glide plate; Street Glide mesh grilles; harnesses |
| Application | Select 2014-up Harley Street Glide / Ultra / Road Glide (see Kenwood fit list) |
Important notes
- Confirm motorcycle year/model against Kenwood's fit list (2014-up Street Glide / Ultra and Road Glide families as listed by Kenwood).
- Amplifier and speakers are 2-ohm oriented; do not mix with incompatible loads.

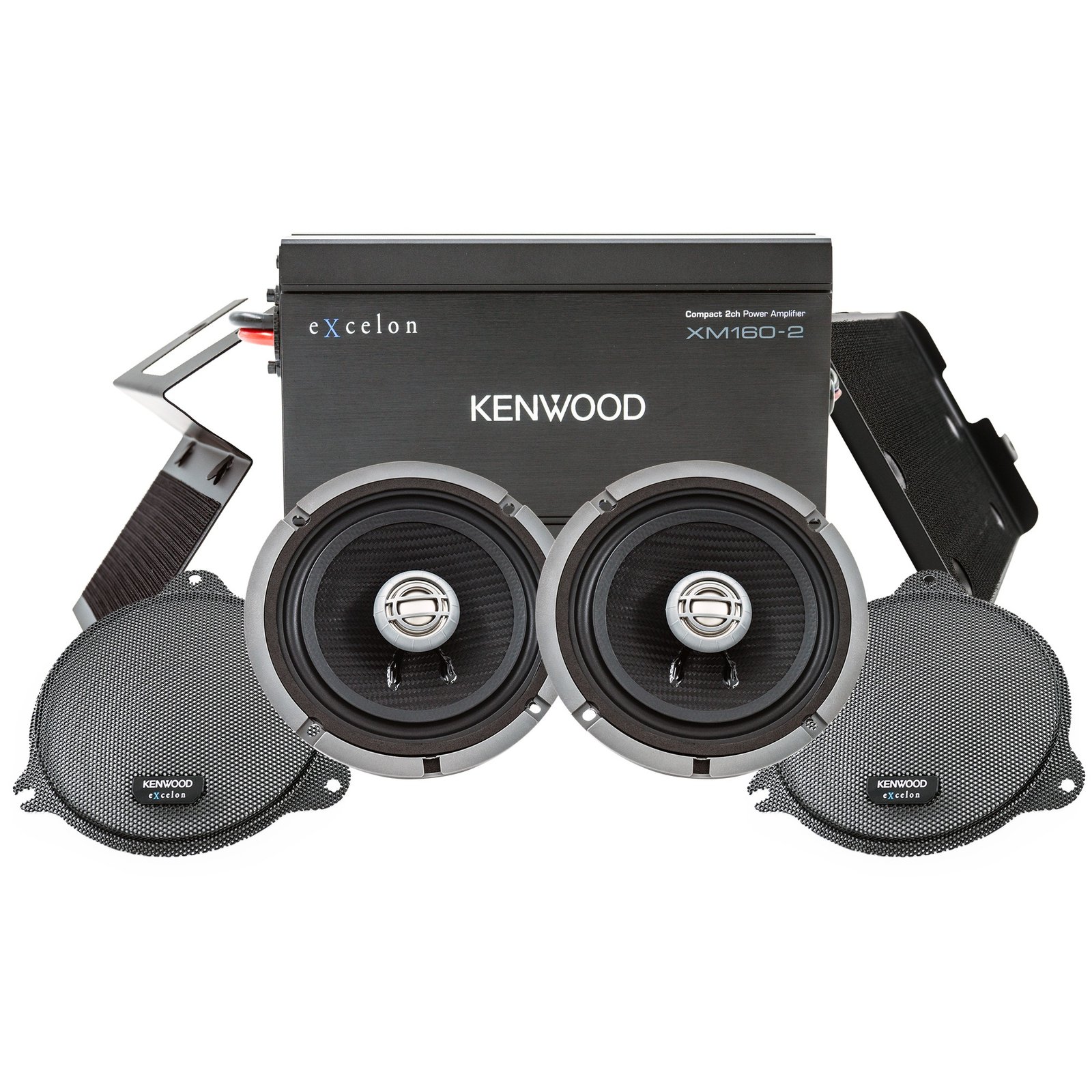

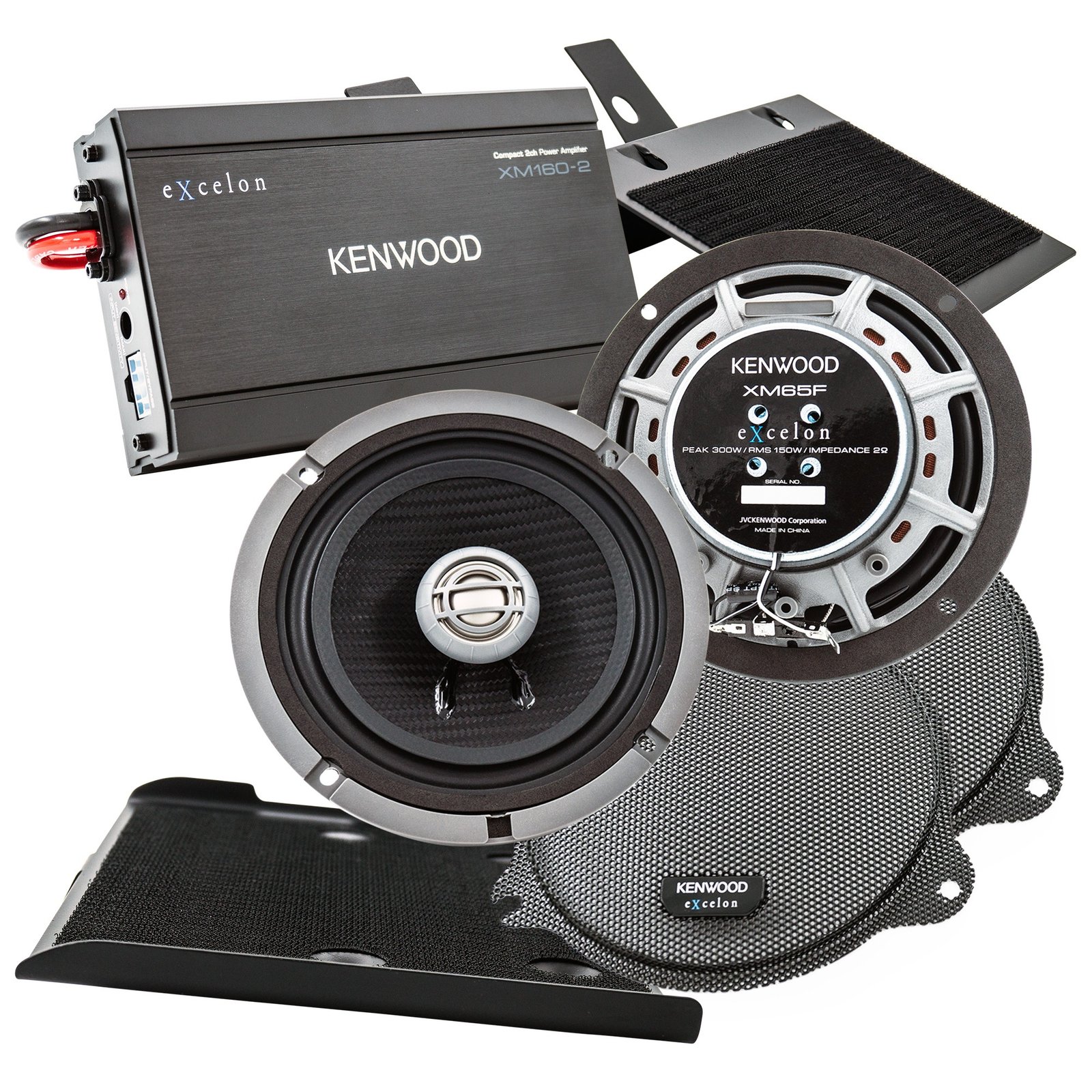

What's in the box
- 1x Kenwood XM160-2 Class-D 2-channel amplifier
- 1x pair Kenwood XM65F 6.5-inch 2-way speakers
- Street Glide / Ultra mounting plate
- Road Glide mounting plate
- Street Glide metal-mesh grilles
- Plug-and-play power, speaker and input wiring
