Pioneer DMH-WT6000NEX 10.1″ Floating Single-DIN Receiver with HD Radio
10.1-inch HD floating 1-DIN receiver with wireless CarPlay, Android Auto, and HD Radio
$1,099.99
Overview
The Pioneer DMH-WT6000NEX floats a 10.1-inch HD capacitive display from a single-DIN chassis with CarPlay and Android Auto available wirelessly or through USB. Built-in HD Radio, Wi-Fi, and six RCA preouts at 4 volts support phone-first listening and an amplified system. A rear USB Type-A port handles media and charging.
Product details

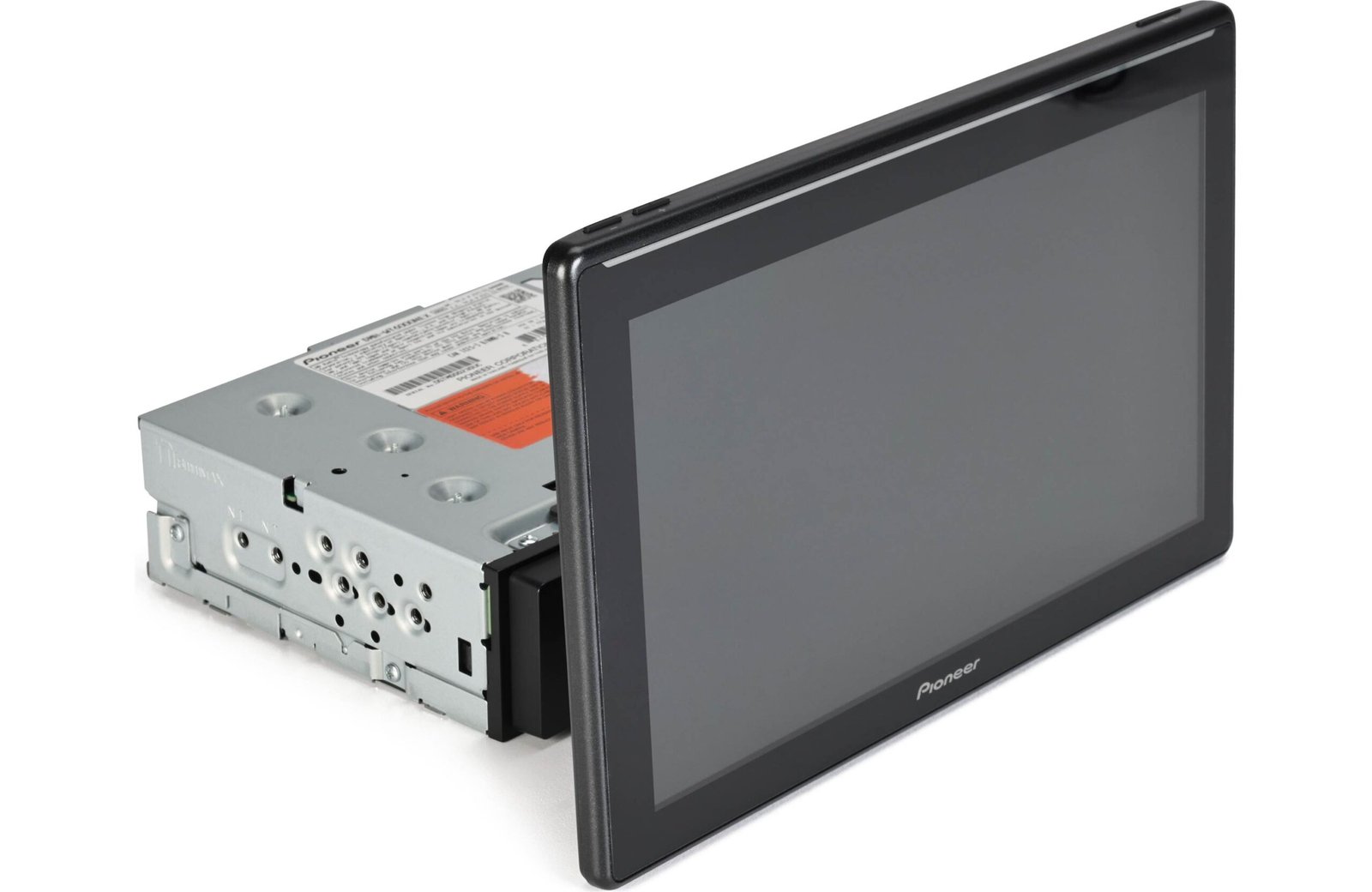

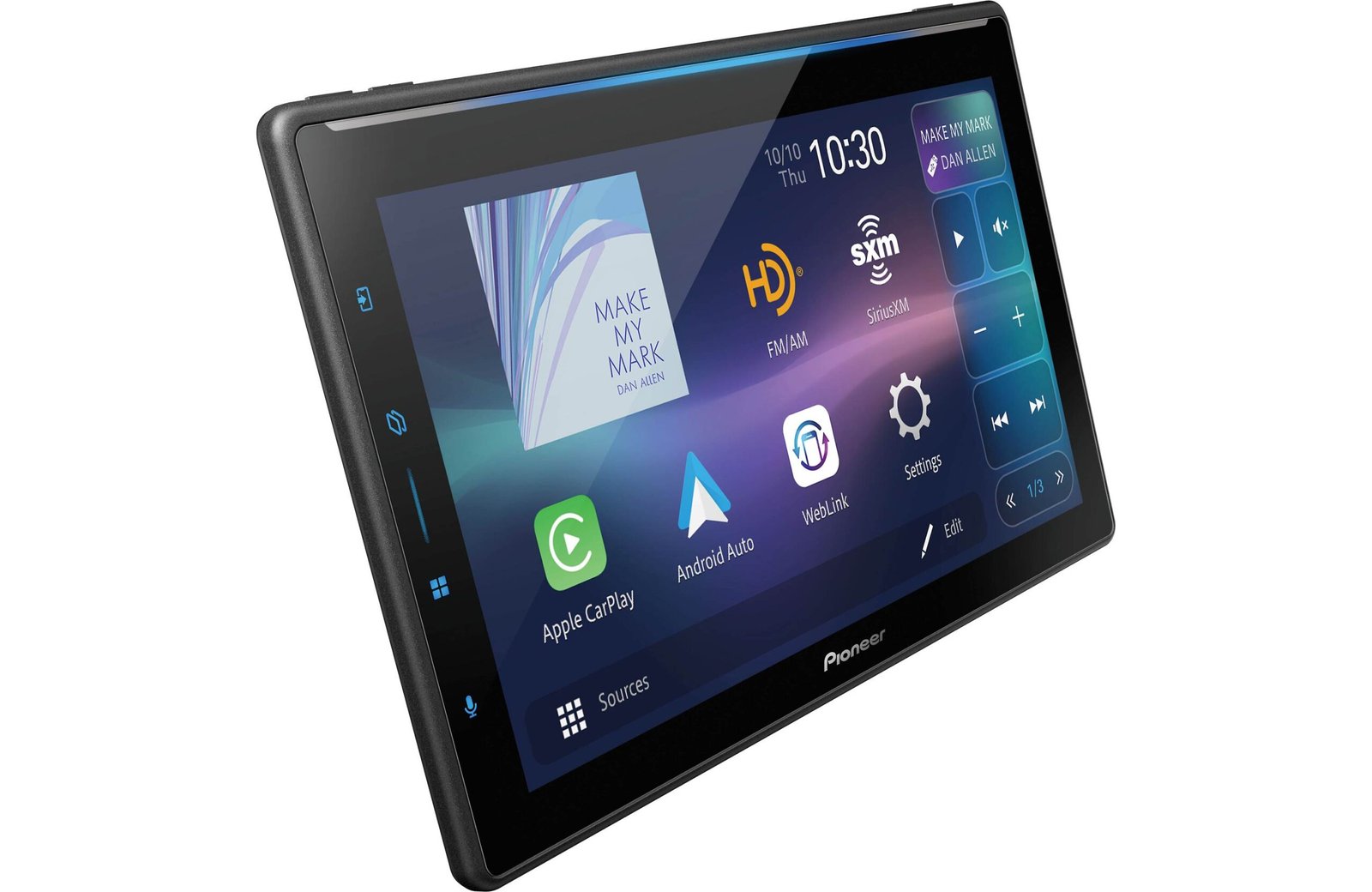

10.1-inch HD floating display
DMH-WT6000NEX steps up to a 10.1-inch HD capacitive panel on a floating single-DIN chassis. CarPlay and Android Auto available wirelessly or through USB fill the larger screen with maps and media while the radio body still occupies a 1-DIN opening.
HD Radio and 4V amp outputs
Built-in HD Radio and SiriusXM-Ready cover terrestrial and satellite sources. Six-channel RCA preouts at 4 volts and a 13-band EQ support multi-amp installs; the MOSFET section is rated 14 W RMS x 4 (CTA-2006). Wi-Fi enables wireless phone projection, and a rear USB Type-A port (5 V / 1.5 A) plays compatible media.
Install notes
The larger panel needs more dash and windshield clearance than a 9-inch floater. Add-on SiriusXM tuners, cameras, and steering-wheel adapters ship separately. Pioneer includes the microphone.
Key features
- 10.1-inch HD capacitive floating display
- Single-DIN floating chassis for 1-DIN openings
- CarPlay and Android Auto available wirelessly or through USB
- HD Radio reception with SiriusXM-ready connection for an add-on tuner
- Wi-Fi support for wireless phone projection
- 6-channel RCA preouts at 4 volts
- Thirteen-band graphic equalizer with crossover settings
- Rear USB Type-A (5 V / 1.5 A)
- Backup-camera input ready
- Integrated amp rated 14 W RMS x 4 CTA-2006 and 50 W x 4 max
Specifications
| Weight | 5.6 lbs |
|---|---|
| Dimensions | 10.31 × 7.12 × 2.06 in |
| Brand | Pioneer |
| Model | DMH-WT6000NEX |
| SKU | DMHWT6000NEX |
| UPC | 884938518895 |
| Product type | Floating Multimedia Receiver |
| Screen Size | 10.1"/16:9 |
| Resolution | HD-720 |
| DIN Size | Single DIN (1-DIN), Floating |
| Apple CarPlay | Wireless or Wired USB |
| Android Auto | Wireless or Wired USB |
| HD Radio | Built In |
| SiriusXM | Ready (tuner sold separately) |
| Wifi | Yes (wireless CarPlay/Android Auto) |
| Bluetooth | Yes |
| RCA Preamp Outputs | 6-ch |
| RCA Preout Voltage | 4V |
| EQ Bands | 13 Band |
| Camera Input | Ready |
| USB | Single Rear Type-A (5 V, 1.5 A) |
| Built-in Amplifier | MOSFET 50 W x 4 |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
| Max Power Output | 50 W x 4-ch 4 ohm |
| Continuous Power Output | 22 W x 4-Channel |
| Microphone Included | Included |
| Steering Wheel Control Ready | Yes (adapter sold separately) |
| Stereo Type | Mechless, Video |
| Chassis Size | 1 DIN |
| Screen Style | Halo |
Important notes
- Confirm 10.1-inch panel clearance against the dash, cluster, and windshield.
- Wireless projection requires a compatible phone and powered receiver Wi-Fi.
- SiriusXM tuner, camera, and SWC adapter are sold separately.
- Check single-DIN depth and harness fitment before install.

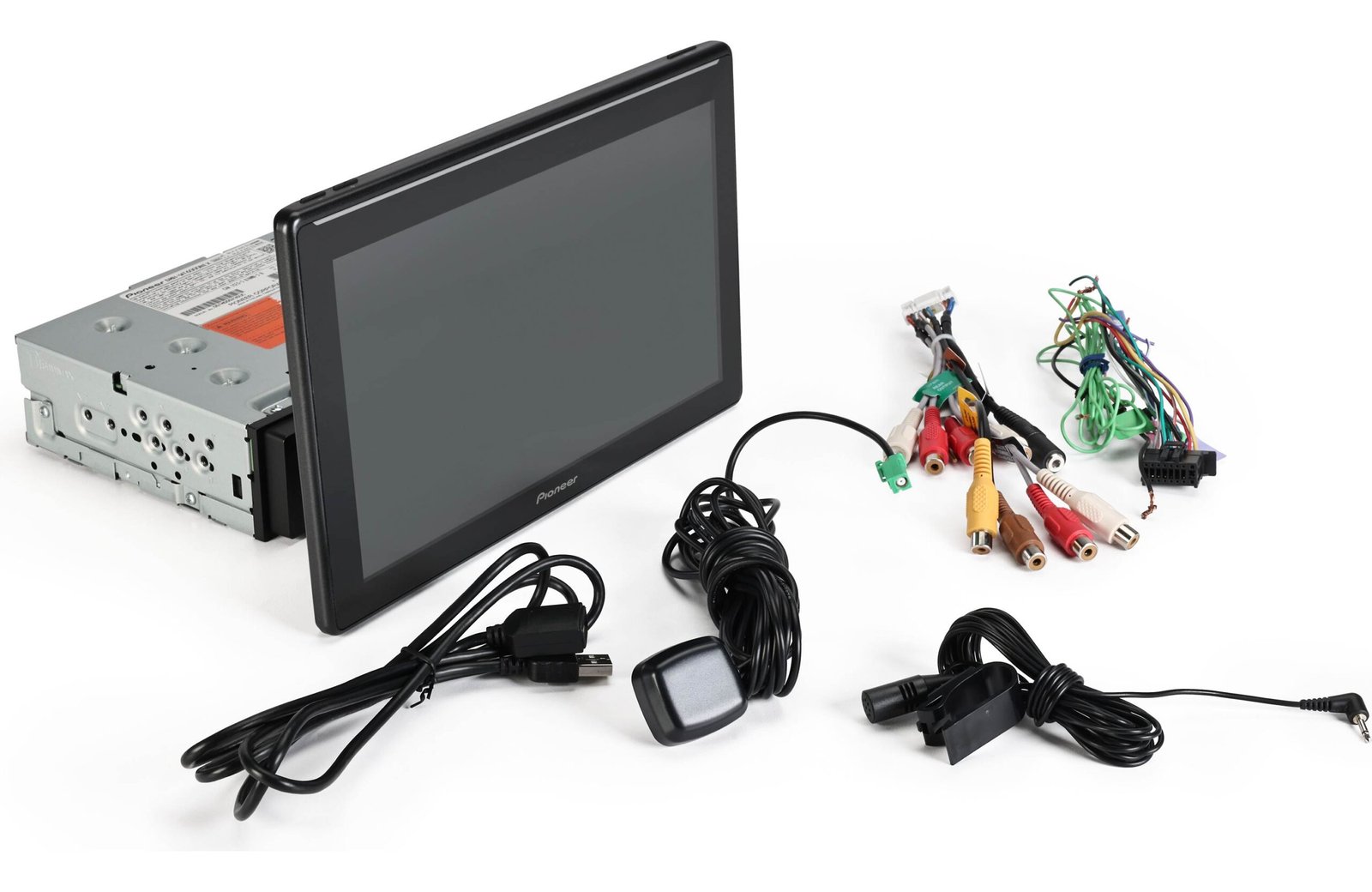

What's in the box
- Pioneer DMH-WT6000NEX floating multimedia receiver
- Wiring harness
- Microphone with clip
- Floating-panel mounting hardware
- Owner's manual and quick-start guide
