Rockford Fosgate PAUX Punch Universal Auxiliary Input Port
Dash-mount USB and 3.5 mm AUX port with six-foot extensions
$29.99$59.99 (-50%)
Overview
The PAUX Punch Universal Auxiliary Input Port puts a USB jack and 3.5 mm AUX jack in a 1-inch dash hole with a retaining nut and water-resistant cover. About six feet of cable reach a hideaway head unit with a female USB extension and male stereo RCA outputs. Passive USB path supports passive charging up to 5.1 V DC at 2.1 A when the head unit allows it.
Product details
USB and AUX where you can reach them
Hideaway radios and marine black boxes leave you hunting for a USB port. The PAUX is a panel-mounted Punch Universal Auxiliary Input Port: drill a 1-inch (25 mm) hole, feed the cables through, seat the port, and tighten the retaining nut from behind. An attached water-resistant cover helps keep dust and moisture off the jacks when they are idle.
Six-foot reach to the head unit
Roughly six feet (182 cm) of cable run from the panel to a female USB extension and a pair of male stereo RCA jacks for AUX. That length is enough to reach a glove box, under-dash pocket, or console-mounted head unit. Passive USB charging is specified up to 5.1 V DC at 2.1 A when the connected head unit supplies charge current. Confirm your head unit has a free USB and AUX/RCA input before ordering.
Key features

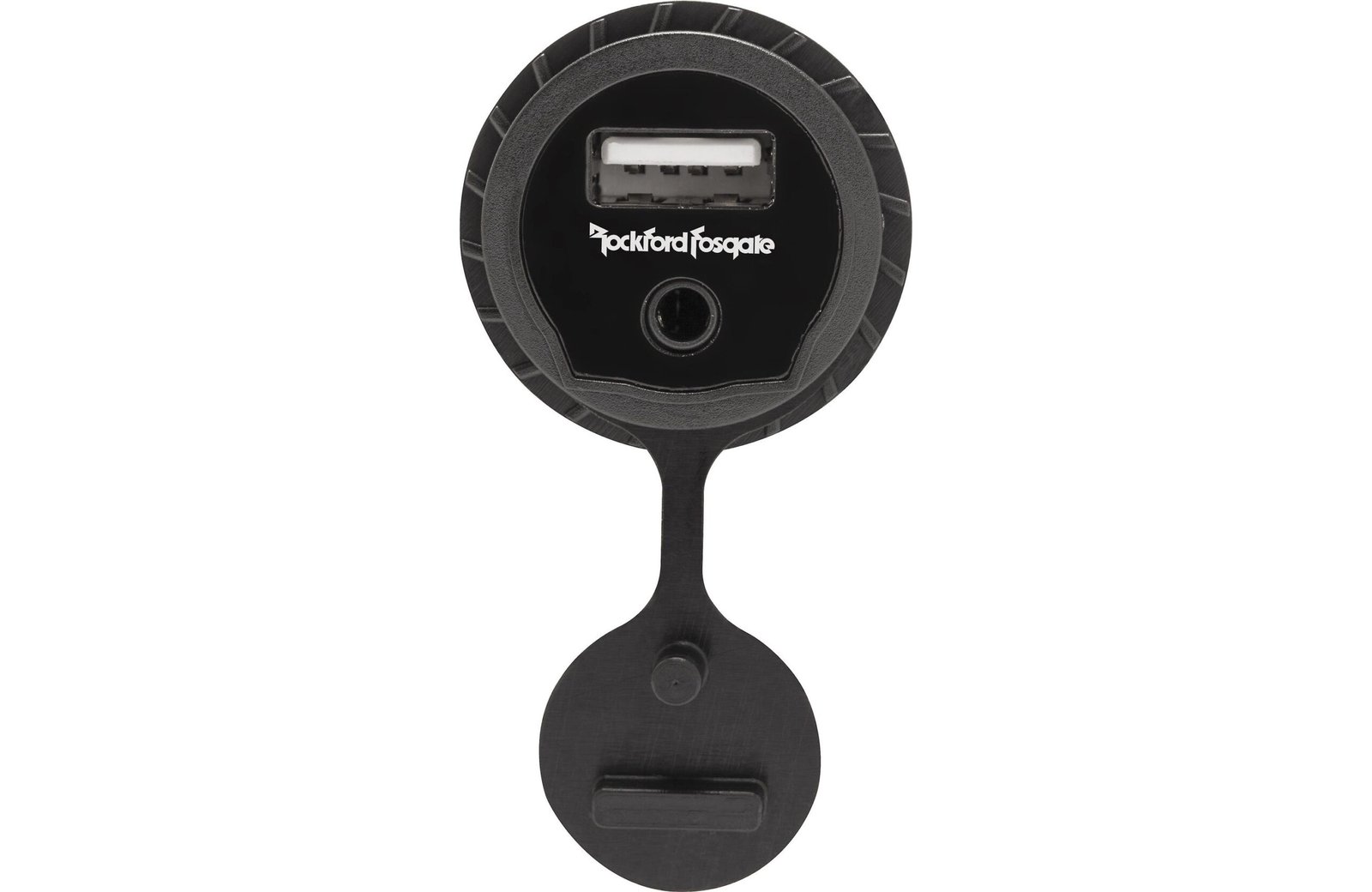

- Panel-mounted USB and 3.5 mm AUX jacks for dash or console installs
- Fits a standard 1-inch (25 mm) round hole with a retaining nut
- Approximately six-foot cables reach a hideaway head unit

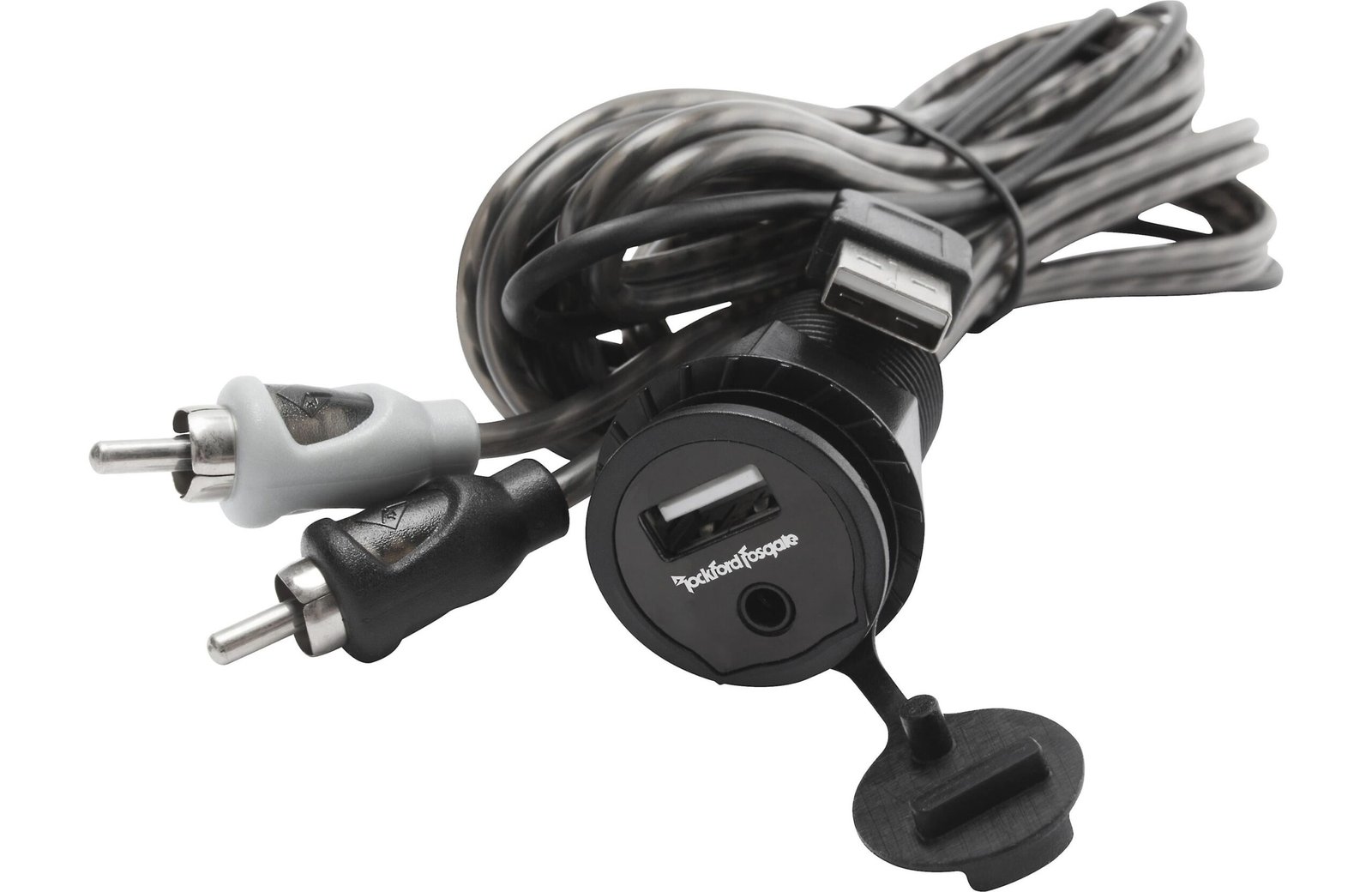

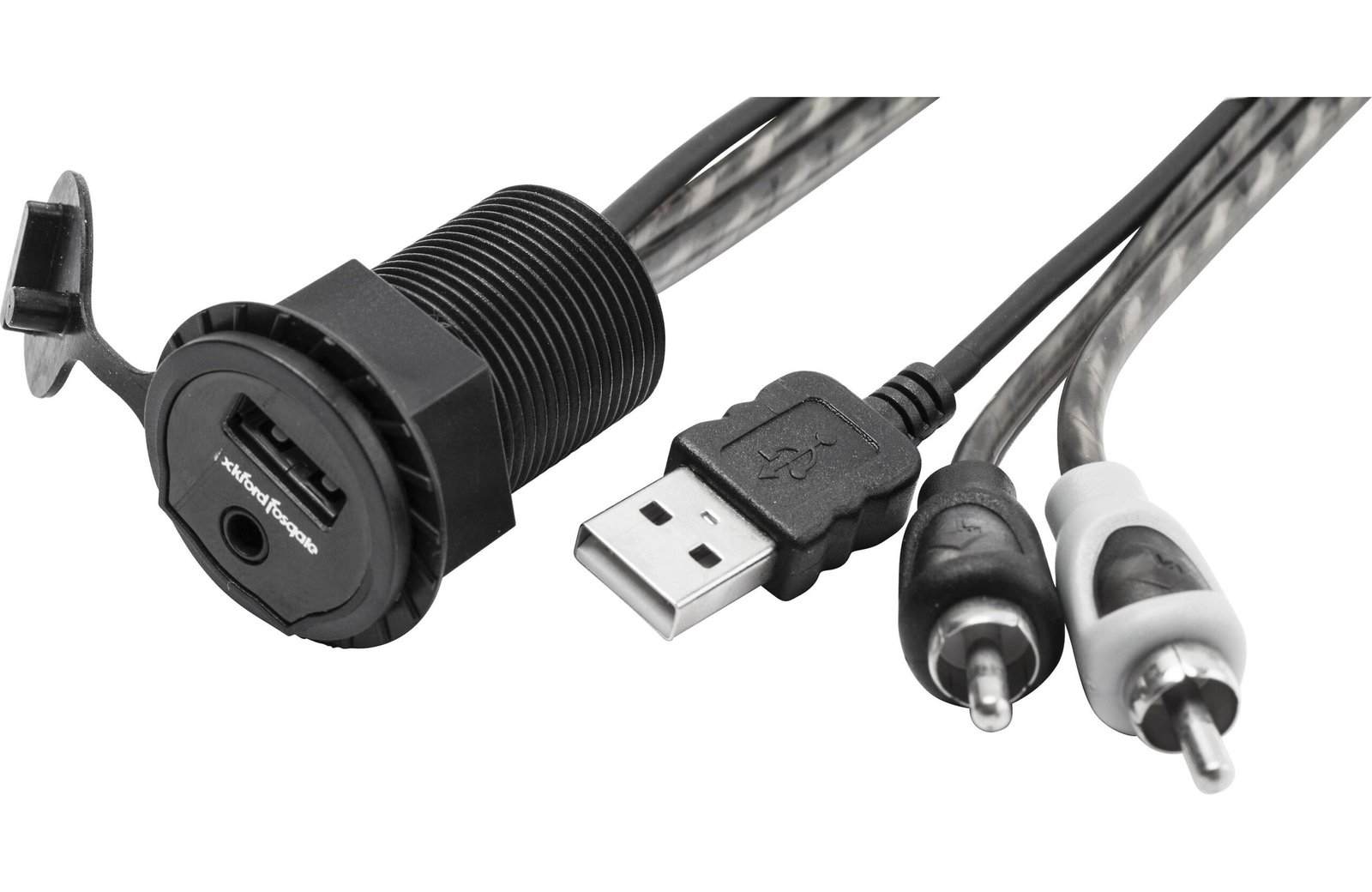

- USB female extension plus male stereo RCA outputs for AUX audio

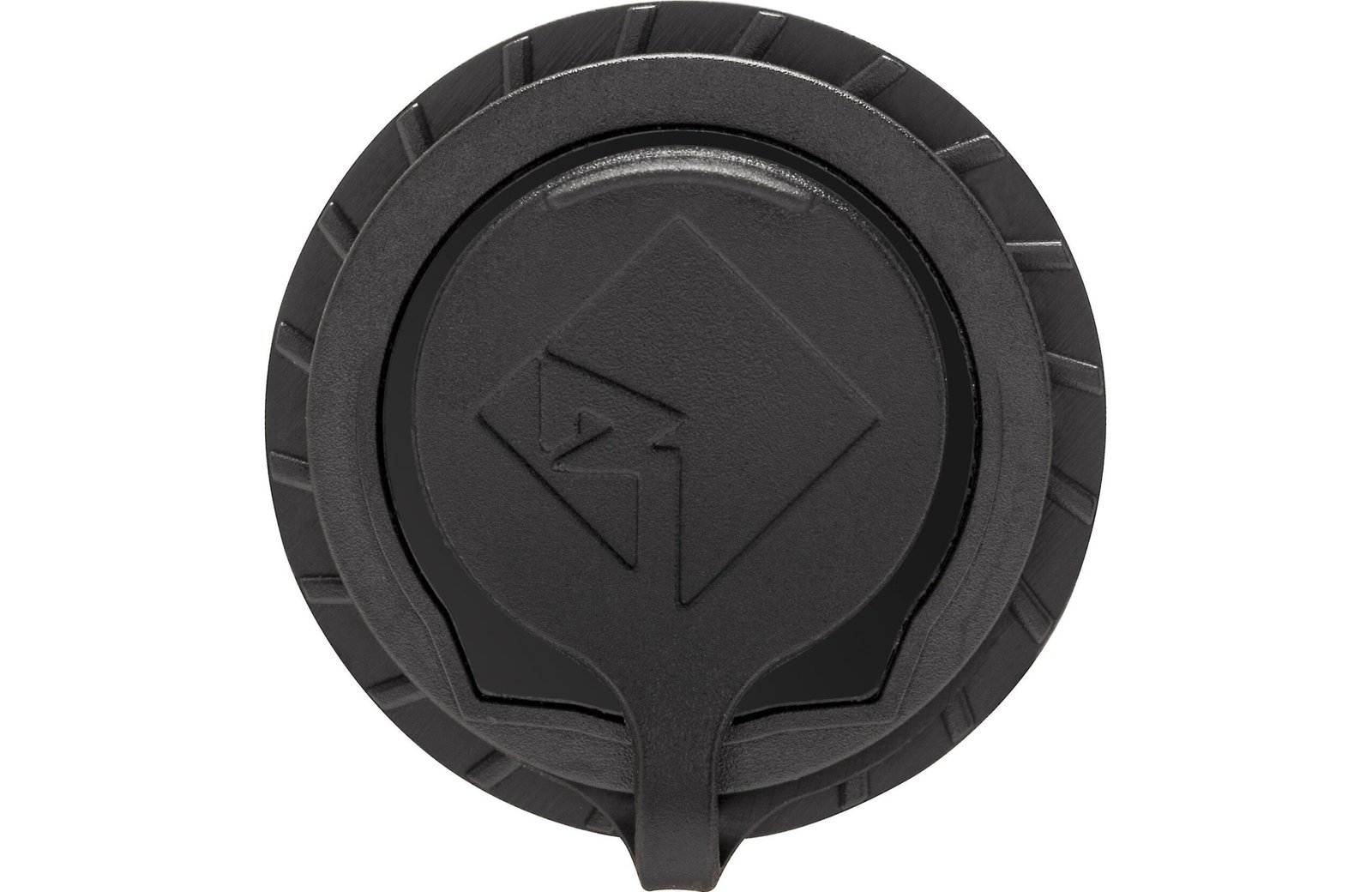

- Attached water-resistant cover helps protect idle jacks from spray
- Passive USB charging up to 5.1 V DC at 2.1 A when the head unit allows
Specifications
| Weight | 0.44 lbs |
|---|---|
| Dimensions | 10.23 × 7.28 × 1.97 in |
| Brand | Rockford Fosgate |
| Model | PAUX |
| SKU | PAUX |
| Product type | Accessory |
| Accessory Type | USB & AUX Input Port |
| Signal Input | 3.5 mm stereo jack + USB-A |
| Signal Output | 2-channel stereo via RCA; USB female extension |
| Mounting | 1" (25 mm) diameter hole with retaining nut |
| Cable Length | Approx. 6 ft (182 cm) |
| USB Charging | Passive up to 5.1 V DC @ 2.1 A |
| Cover | Attached water-resistant cover |
Important notes
- Requires a head unit with available USB and AUX/RCA inputs
- USB charging is passive and depends on the head unit’s charge supply
- Confirm a clean 1-inch panel location before drilling
What's in the box
- PAUX panel port with attached cover
- USB and AUX/RCA extension cables as supplied
- Retaining nut
