Rockford Fosgate PMX-RGB Color Optix Controller
Color Optix RGB lighting controller for Element Ready speakers
$99.99
Overview
The Rockford Fosgate PMX-RGB is the Color Optix plug-and-play lighting controller for Element Ready M0, M1, and M2 speakers and subwoofers. It can illuminate up to eight Color Optix speakers or subs on one unit, with RF Connect app control when paired. Operating voltage is 9 to 24 VDC with a 2-amp internal fuse and stainless mounting hardware in the carton.
Product details
Color Optix lighting control

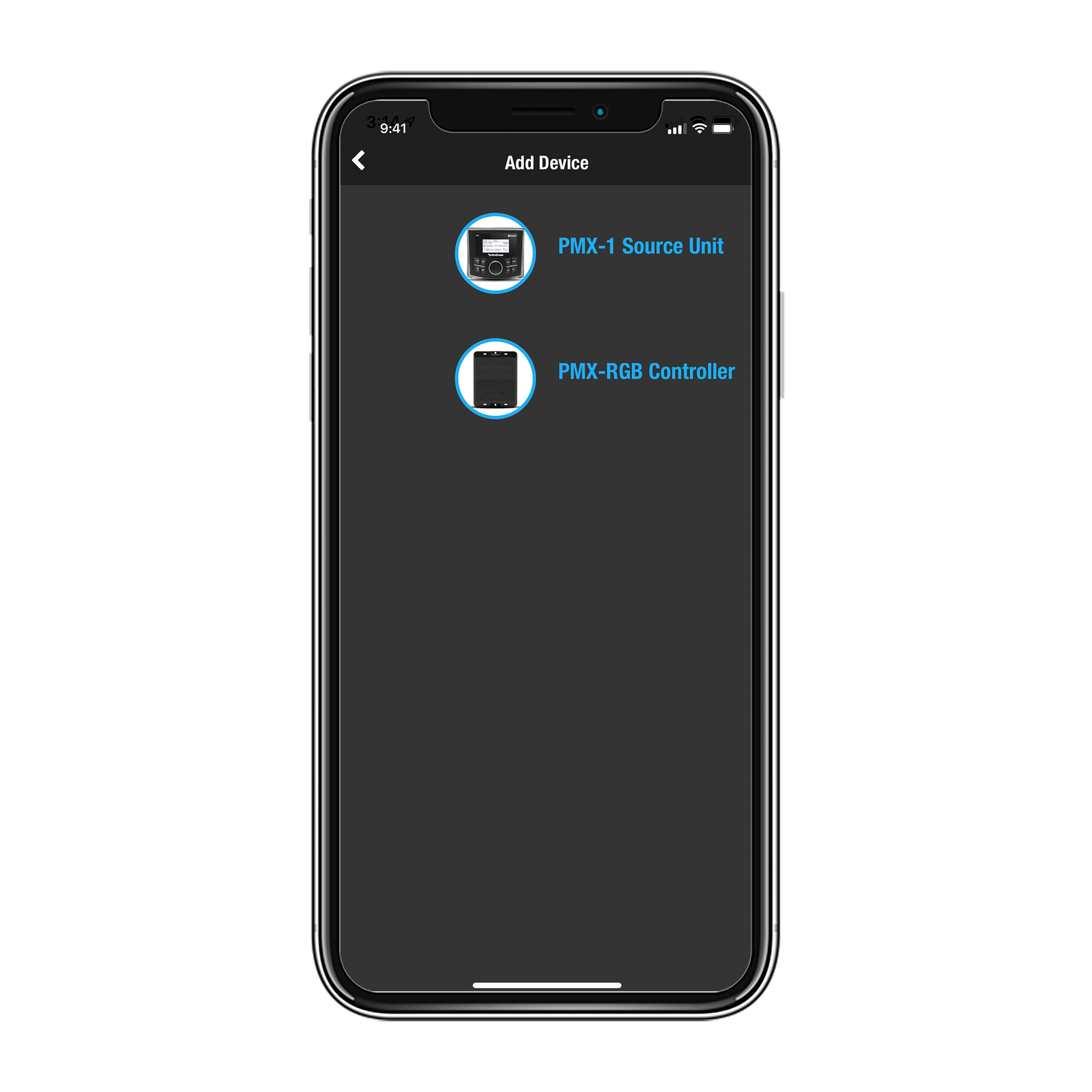

The PMX-RGB drives RGB lighting for Rockford Fosgate Color Optix marine and motorsports speakers and subwoofers. One controller illuminates up to eight Color Optix speakers or subs; slight dimming may occur at the end of a long string. RF Connect app compatibility lets you adjust colors and effects from a phone when the controller is set up on the vehicle network.
Power and cable limits
Operating voltage is 9 to 24 VDC. Red and black power leads extend about 16 inches from the box, and eight female signal outputs extend about 16.5 inches. Maximum cable length is 100 feet including Y-adapters. An unlimited number of PMX-RGB units can join an RF Connect network when you need more than eight lighted speakers.
What you still need
Color Optix speakers, RGB extension cables, and Y-adapters are sold separately. Confirm Gen-2 versus earlier Color Optix cable pin-outs before ordering adapters. Stainless steel mounting hardware is included.
Key features
- Color Optix plug and play RGB lighting controller for Element Ready speakers
- Illuminates up to eight Color Optix speakers or subwoofers on one unit
- RF Connect app compatible for phone based color and effect control
- Operating voltage from 9 to 24 VDC with a 2 amp internal fuse
- Eight female signal outputs extend about 16.5 inches from the controller box
- Maximum cable length is 100 feet including Y adapter runs
- Stainless steel mounting hardware included for marine and motorsports installs
- Multiple PMX-RGB units can join one RF Connect network for larger lighting systems
Specifications
| Brand | Rockford Fosgate |
|---|---|
| Model | PMX-RGB |
| SKU | PMXRGB |
| Product type | Accessory |
| Max Speaker Capacity | Up to 8 Color Optix speakers/subs per unit |
| Operating Voltage | 9 VDC – 24 VDC |
| Internal Fuse | 2 Amp |
| Power/Ground Cable | Red & black leads extend ~16" from box |
| Signal Cable | 8 female outputs extend ~16.5" from box |
| Max Cable Length | 100 ft (30.48 m) including Y-adapters |
| RF Connect Capacity | Unlimited number of PMX-RGB units on network |
| Mounting Hardware | Stainless steel included |
Important notes
- Color Optix speakers, RGB cables, and Y-adapters are sold separately.
- One unit lights up to eight speakers; add more PMX-RGB units for larger systems.
- Confirm Gen-2 Color Optix cable pin-outs before ordering extension cables.
- Requires a switched 9–24 VDC power source with proper fuse protection.
What's in the box
- (1) PMX-RGB Color Optix controller
- Stainless steel mounting hardware
