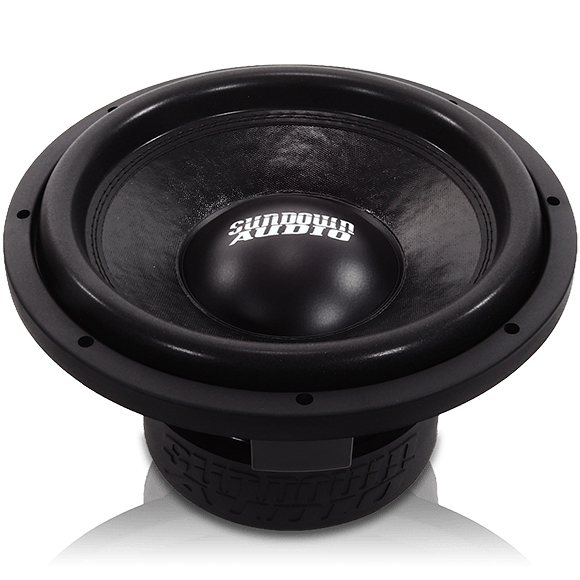

Sundown SA-Classic 12″ D4 Car Audio Subwoofer
1000 W RMS cast-frame 12-inch dual 4-ohm subwoofer
$359.99
Overview
The Sundown SA-Classic 12-inch D4 is rated 1000 W RMS / 2000 W peak on dual 4-ohm voice coils with 19 mm Xmax. A cast aluminum frame, 2.5-inch voice coil, double-layered Nomex spider, and competition-grade paper cone work in sealed, small ported, or band-pass boxes. Recommended sealed volume is about 1.0 cu ft; ported about 1.75 cu ft near 35 Hz.
Product details
Classic power and excursion
Rated 1000 W RMS / 2000 W peak with 19 mm Xmax. URL and older packaging may still reference 750 W; current published specs use 1000 W RMS.
Build

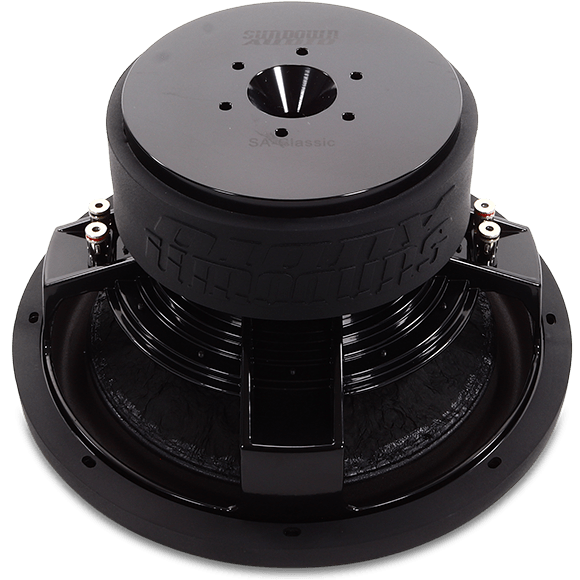

Cast aluminum frame, large aluminum Faraday ring, spring-loaded terminals, and stitched XL tinsel leads. Dual 2-ohm or dual 4-ohm coils are offered; this listing is D4.
Enclosure flexibility
Optimized for small ported, sealed, and band-pass designs. Typical sealed about 1.0 cu ft; ported about 1.75 cu ft with 26 sq in port area at 35 Hz.
Key features
- 12-inch SA-Classic subwoofer
- 1000 W RMS / 2000 W peak
- Dual 4-ohm voice coils (D4)
- 19 mm Xmax
- Cast aluminum frame
- 2.5-inch voice coil
- Large aluminum Faraday ring
- Double-layered Nomex spider
- Spring-loaded terminals; XL tinsel leads
Specifications
| Brand | Sundown |
|---|---|
| Model | SA-Classic 12 D4 |
| SKU | SACLASSIC12D4 |
| UPC | 810111130783 |
| Product type | Subwoofer |
| Size | 12 inch |
| Voice coils | Dual 4 ohm |
| RMS power | 1000 W |
| Peak power | 2000 W |
| Xmax | 19 mm |
| Mounting depth | 6.5" |
| Sealed volume | 1.0 cu ft |
| Ported volume | 1.75 cu ft |
| Size | 12 inch |
Important notes
- Requires a compatible amplifier and enclosure (sold separately)
- Professional installation recommended
What's in the box
- Sundown SA-Classic 12" D4 subwoofer
- Mounting hardware as packaged
