Kenwood eXcelon Reference XR-1801P 7″ Hi-Res Component Speakers

Hi-Res certified 7-inch component system

The XR-1801P is a complete 2-way set: two 7-inch woofers, two tweeters and two external crossover networks. Each woofer uses a glass fiber cone with a rubber surround and a ferrite magnet. Kenwood rates the system from 35 Hz to 40 kHz (-10 dB), or 52 Hz to 35 kHz at -3 dB, with 87 dB sensitivity, and the set carries High-Resolution Audio certification.

Titanium dome tweeters with flexible mounting

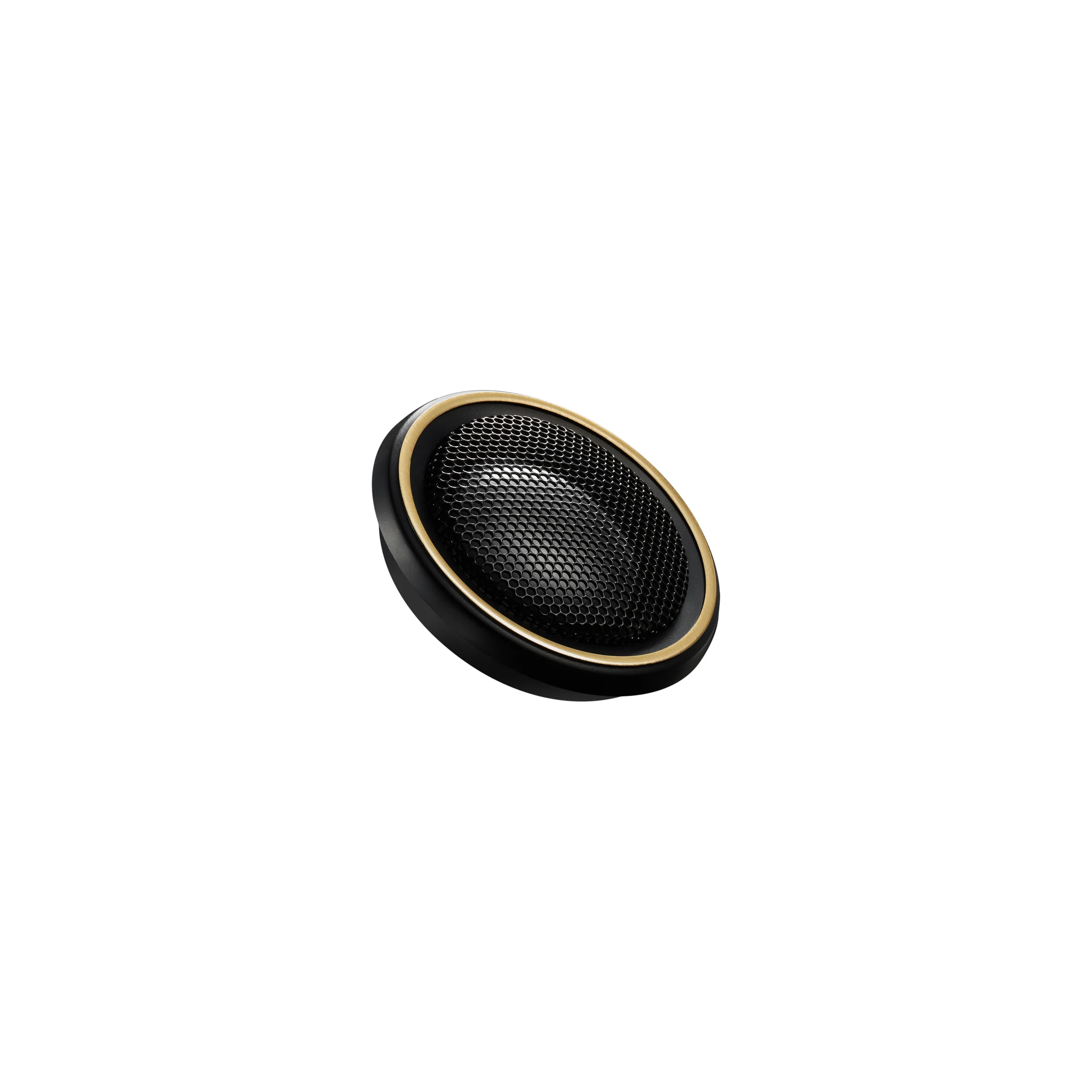

The 1-3/16-inch (30 mm) titanium dome tweeters use neodymium magnets. You can flush mount them in a 1-13/16-inch (45.5 mm) cutout or use the supplied brackets for angled mounting, which lets you aim them toward the listening position.

Bi-amp ready crossover networks

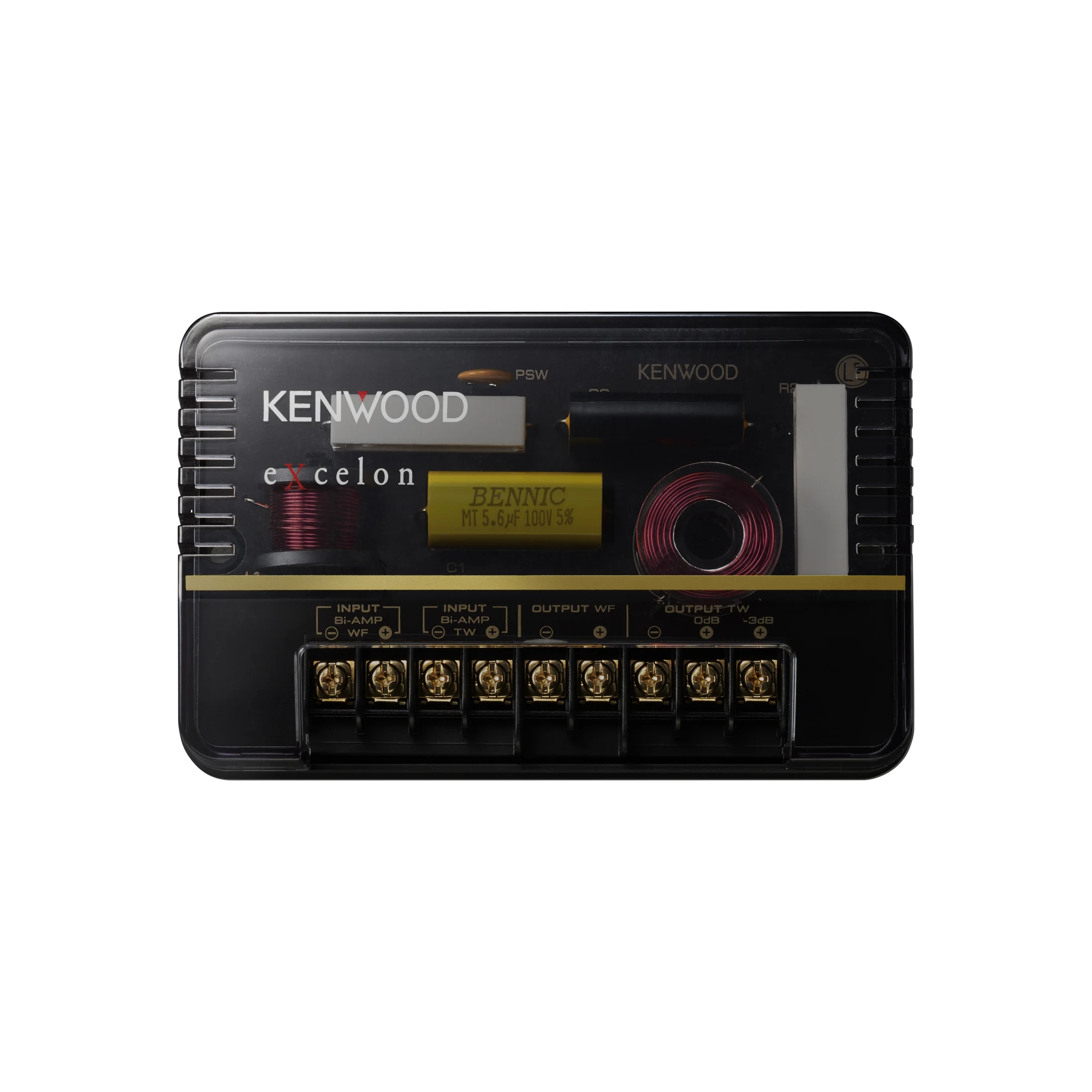

Each side has its own network box with 12 dB per octave high-pass and low-pass filters. The tweeter level can be set to 0 or -3 dB by choosing the terminal connection, and a polyswitch helps protect the tweeter from overload. Separate inputs allow bi-amping, so you can drive the woofers and tweeters from different amplifier channels.

Fitting the woofers

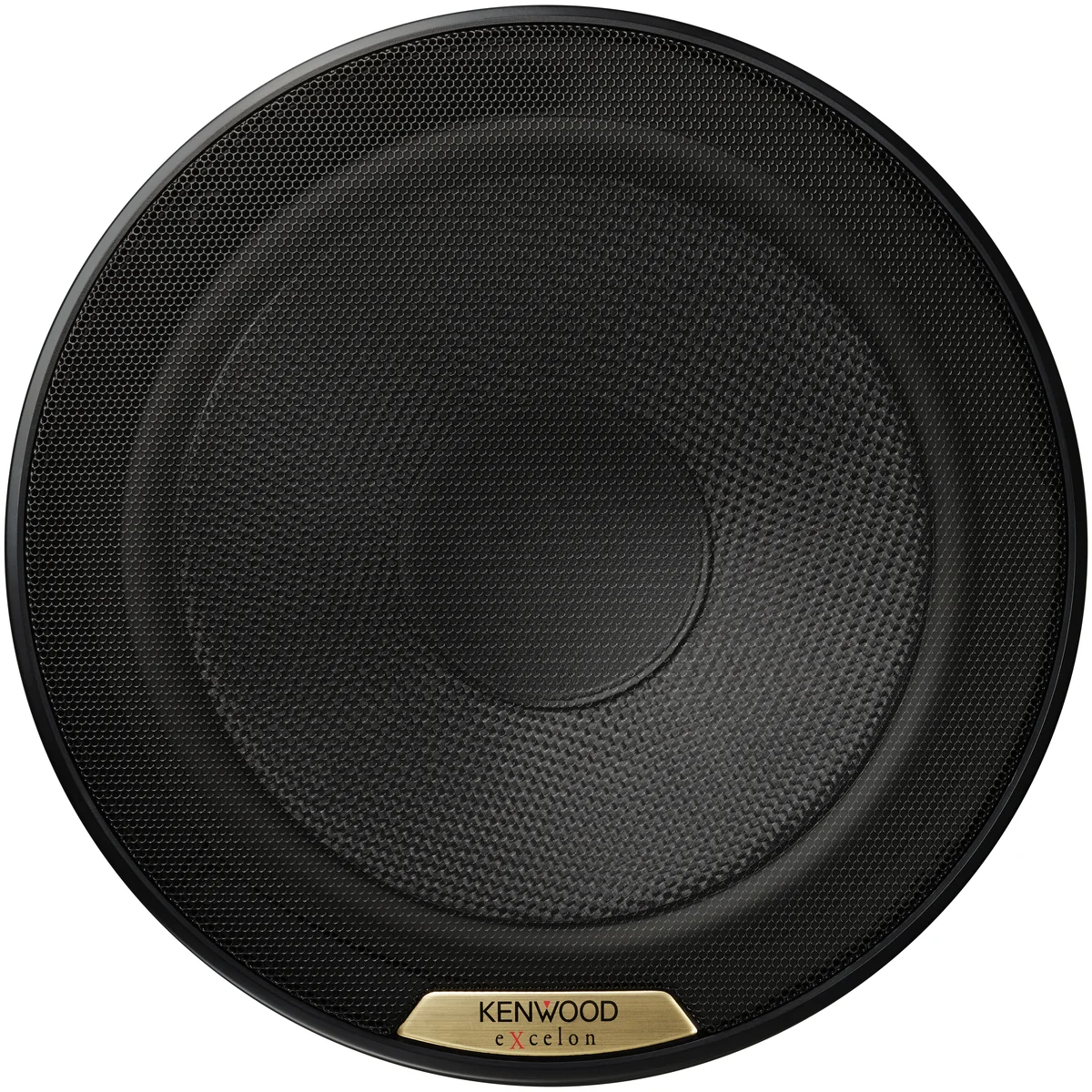

The woofer frame is 7-5/8 inches (193.5 mm) across and needs a 6-inch (152.5 mm) cutout with 2-7/16 inches (62 mm) of mounting depth. It sits 15/16 inch above the mounting surface with the grille fitted. Multi-fit brackets and 6×9-inch adapter brackets come in the box. Speaker wire is not supplied; Kenwood recommends 12 to 22 AWG cable. Kenwood backs eXcelon Reference products with a 2-year warranty.

• High-Resolution Audio certified 7-inch 2-way component speaker system
• 7-inch glass fiber cone woofers with rubber surrounds and ferrite magnets
• 1-3/16-inch titanium dome tweeters driven by neodymium magnets
• Rated for 120 watts RMS and 330 watts peak power at 3 ohms
• External crossover networks with 12 dB per octave slopes and bi-amp inputs
• Selectable 0 or -3 dB tweeter level plus polyswitch tweeter protection
• Tweeters can be flush mounted or angle mounted with the included hardware
• Includes woofer multi-fit brackets and 6x9-inch adapter brackets
• 87 dB sensitivity with a rated response of 35 Hz to 40 kHz (-10 dB)

• Speaker wire is not supplied. Kenwood recommends 12 to 22 AWG speaker cable.
• Nominal impedance is 3 ohms. Check that your amplifier or receiver is rated to drive a 3-ohm load.
• Woofers need a 6-inch cutout and 2-7/16 inches of mounting depth; flush-mounted tweeters need a 1-13/16-inch cutout.
• Bi-amping needs separate amplifier channels for the woofers and tweeters. Amplifiers are sold separately.
• Kenwood backs eXcelon Reference products with a 2-year warranty.

• 7-inch woofers (2)
• 1-3/16-inch tweeters (2)
• External crossover network boxes (2)
• Woofer grille assemblies (2)
• Woofer multi-fit brackets (2)
• Woofer 6x9-inch brackets (2)
• Tweeter brackets (2)
• Tweeter mounting hardware (2)
• Adhesive tape (1 set)
• Tapping screws, 4 x 25 mm (12)
• Tapping screws, 4 x 18 mm (8)
• Tapping screws, 4 x 16 mm (4)
• Machine screws, M4 x 6 mm (2)
• Speed nuts (16)
• Instruction manual
• Warranty card

• Kenwood XR-1801P instruction manual (PDF, English/French/Spanish)
