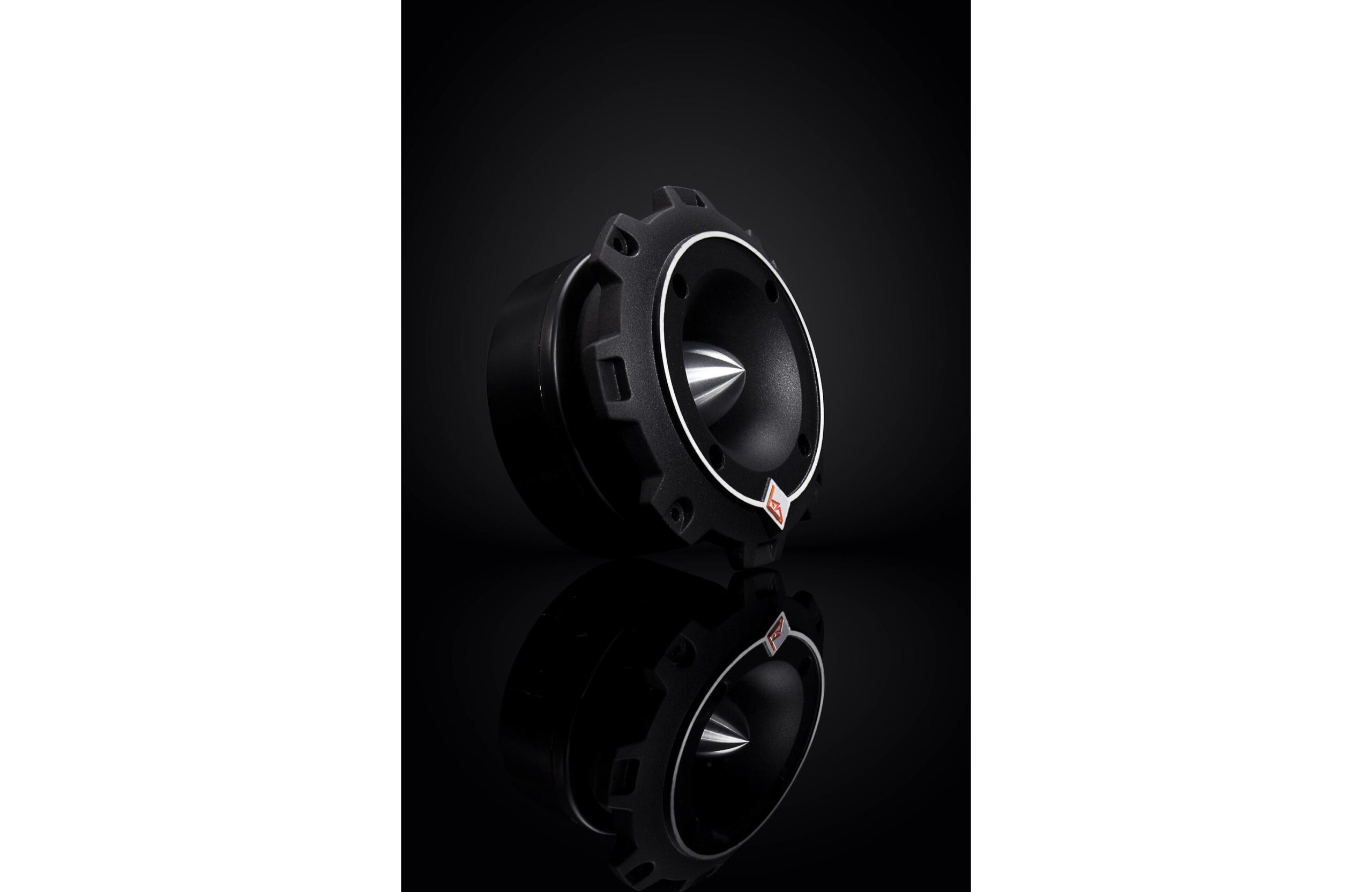

Rockford Fosgate PP4-T Punch Pro 1.5″ 4-Ohm Tweeter
High-SPL Punch Pro 1.5-inch tweeter, sold individually
$99.99
Overview
The PP4-T is a Punch Pro 1.5-inch 4-ohm tweeter built for high SPL systems. It is rated at 50 watts RMS and 100 watts max, with frequency response from 4 kHz to 20 kHz and 105 dB sensitivity. A die-cast aluminum housing, Kapton former, billet phase plug, and built-in 6 dB/octave crossover come ready for loud mid-high duty. Order two units when you need a matched left and right pair.
Product details
Punch Pro tweeter for SPL stages
Competition and loud daily systems need a tweeter that will not fold when the midranges are screaming. The PP4-T is Rockford Fosgate’s Punch Pro 1.5-inch 4-ohm tweeter, rated at 50 watts RMS and 100 watts max. Sensitivity is a very high 105 dB (1 W/1 m), and frequency response runs from 4 kHz to 20 kHz—ideal above a Punch Pro midrange.
Die-cast housing and built-in network
A die-cast aluminum housing and billet-machined aluminum phase plug give the driver a rigid platform. The voice coil uses a high-temp Kapton former, and all-metal spring terminals accept heavy gauge wire. A built-in 4.5 kHz high-pass at 6 dB/octave means you can run the tweeter without a separate passive network in many layouts. Mounting depth is 2.59 inches with a 4.33-inch mounting diameter.
Sold each
The PP4-T ships as a single tweeter with mounting hardware for panel or baffle installs. Grilles and trim rings are not included. Pair it with a Punch Pro midrange, and confirm your amplifier can supply clean power near the 50-watt RMS rating with an appropriate high-pass filter.
Key features
- Punch Pro 1.5-inch 4-ohm tweeter loudspeaker, sold each
- 50 watts RMS / 100 watts max power handling for high SPL use
- Die-cast aluminum housing with billet-machined aluminum phase plug
- High-temp Kapton former voice coil and all-metal spring terminals
- Built-in 4.5 kHz high-pass crossover at 6 dB/octave
- Frequency response 4 kHz – 20 kHz; 105 dB sensitivity (1 W/1 m)
- Mounting hardware is included; mounting depth measures 2.59 inches
Specifications
| Weight | 4.05 lbs |
|---|---|
| Dimensions | 6.5 × 7 × 4.5 in |
| Brand | Rockford Fosgate |
| Model | PP4-T |
| SKU | PP4T |
| Product type | Speakers |
| Tweeter Size | 1.5" |
| Voice Coil Diameter | 1.475" (37.5 mm) |
| Tweeter Mounting Depth | 2.59" (65.8 mm) |
| Tweeter Mounting Diameter | 4.33" (110 mm) |
| Nominal Impedance | 4 Ω |
| Frequency Response | 4 kHz – 20 kHz |
| Sensitivity (1W/1M) | 105 dB |
| Power Handling | 50 W RMS / 100 W Max |
| Crossover | 4.5 kHz @ 6 dB/octave |
| Grille/Trim Ring Included | No |
| Mounting Hardware | Yes |
| Speaker Type | Tweeters |
| Size | 1.5 inch |
| Shipping Weight | 4.05 lbs (1.83 kg) |
Important notes
- Sold individually — order two for a left/right tweeter pair
- Grilles and trim rings are not included
- Use the built-in network or an active high-pass to protect the tweeter
- An amplifier capable of clean power near 50 watts RMS is recommended
What's in the box
- One Punch Pro 1.5-inch tweeter
- Mounting hardware
