Rockford Fosgate R2-300X4 Prime 4-Channel Amp
Prime 300-watt 4-channel Class-D amplifier with C.L.E.A.N. setup
$309.99
Overview
The Rockford Fosgate R2-300X4 is a Prime 300-watt 4-channel Class-D amplifier rated at 50 watts x 4 into 4 ohms, 75 watts x 4 into 2 ohms, or 150 watts x 2 bridged at 4 ohms. Top-mounted controls, C.L.E.A.N. setup indicators, and fully adjustable 12 dB/octave crossovers simplify a full-range or front/rear-plus-bridged-sub install. A cast aluminum heat sink and 4 AWG power terminals support daily driving.
Product details

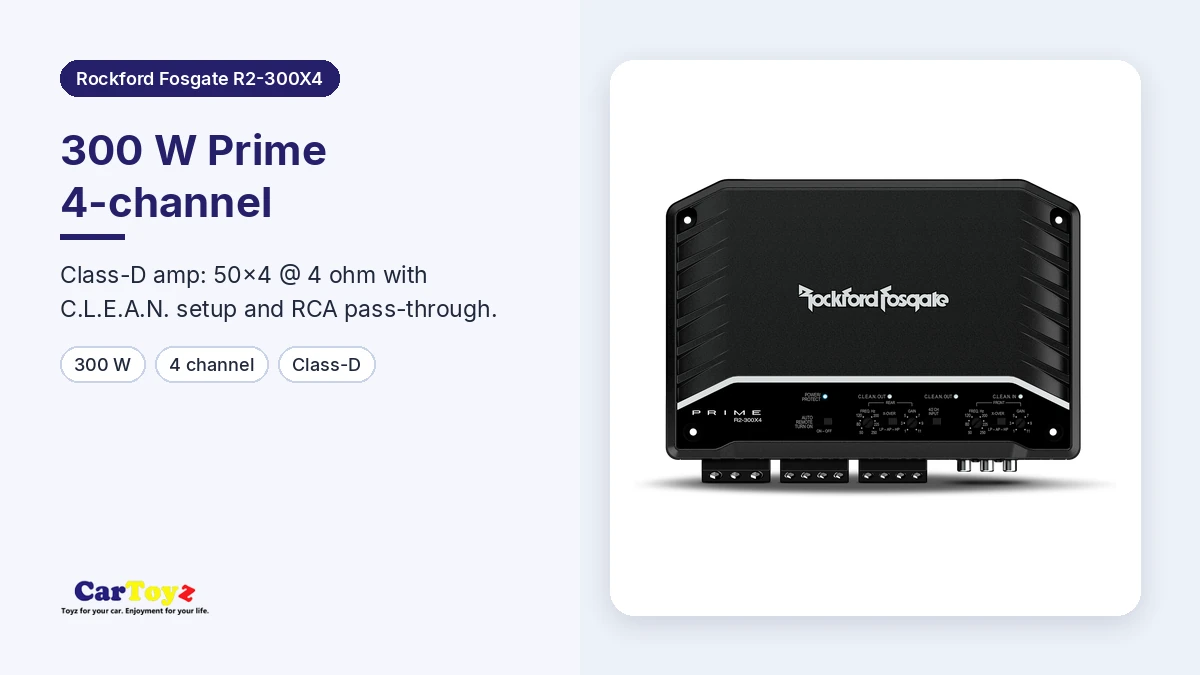

Prime 4-channel Class-D power
Rockford Fosgate rates the R2-300X4 at 50 watts x 4 into 4 ohms, 75 watts x 4 into 2 ohms, or 150 watts x 2 when bridged at 4 ohms. Total rated power is 300 watts. Frequency response covers 20 Hz to 20 kHz with THD+N under 1% at 4 ohm and 2 ohm loads. Class-D topology and a cast aluminum heat sink keep the chassis compact at about 1.9 by 6.8 by 10.1 inches.

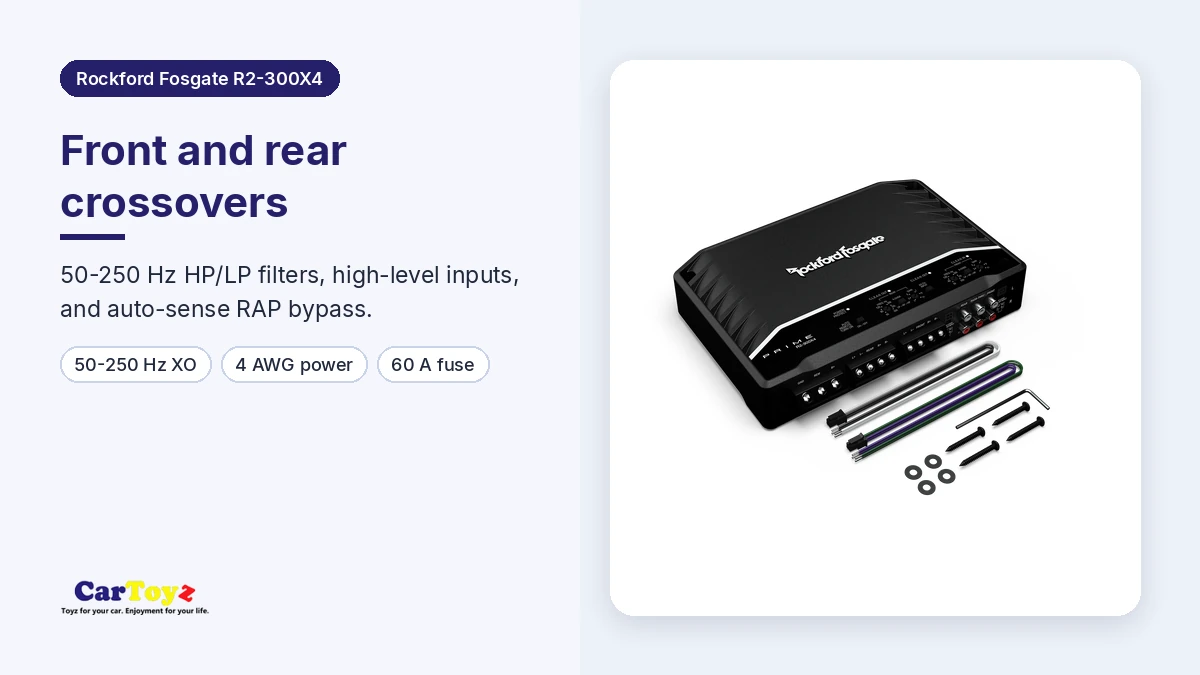

C.L.E.A.N. setup and crossovers
Front and rear variable input gains, a 2/4-channel input switch, and C.L.E.A.N. input/output indicators help set levels without a scope. Fully adjustable 12 dB/octave Butterworth high-pass and low-pass filters cover 50 Hz to 250 Hz on front and rear, with an all-pass option. Balanced differential RCA inputs include pass-through outputs, and high-level Molex inputs support factory radios. An auto-sense bypass switch helps with retained-accessory-power vehicles.
Wiring checklist
Power wire gauge is 4 AWG with a recommended 60 A fuse not included. Speaker outputs use 8 AWG compression terminals. Operating voltage is 9–16 VDC. Speakers and a remote bass knob are sold separately—this amp has no built-in Punch Level Control. Confirm bridge versus stereo loads before setting gains.
Key features
- Prime four channel Class D amplifier with 300 watts total rated power
- Fifty watts times four at 4 ohms or 75 watts times four at 2 ohms
- Bridgeable to 150 watts times two at 4 ohms for a subwoofer pair
- C.L.E.A.N. setup indicators help set input and output levels accurately
- Front and rear 50 Hz to 250 Hz crossovers at 12 dB per octave Butterworth
- Balanced differential RCA inputs with pass through outputs onboard
- High level Molex inputs and auto sense bypass for RAP equipped vehicles
- Cast aluminum heat sink with 4 AWG power and 8 AWG speaker terminals
Specifications
| Channels | 4 channel |
|---|---|
| Brand | Rockford Fosgate |
| Model | R2-300X4 |
| SKU | R2300X4 |
| Product type | Amplifier |
| Total Power | 300 Watts |
| Rated Power (RMS) | 50 W x 4 @ 4 ohm; 75 W x 4 @ 2 ohm; 150 W x 2 @ 4 ohm bridged |
| Circuit Topology Class | Class-D |
| Bridgeable | Yes |
| Frequency Response | 20 Hz – 20 kHz |
| Input Sensitivity | Low-Level 150 mV – 4 V; High-Level 450 mV – 12 V |
| THD+N | <1.0% @ 4 ohm and 2 ohm |
| Crossover Controls | Front/Rear HP & LP 50-250 Hz @ 12 dB/oct Butterworth; All-Pass Yes |
| Signal Input | Front/Rear low-level RCA and high-level 4-pin Molex; 2/4 input switch |
| Signal Output | Low-Level 2 RCA pass-through |
| Power Wire Gauge | 4 AWG |
| Speaker Wire Gauge | 8 AWG |
| Recommended Fuse | 60 A (not included) |
| Operating Voltage | 9 – 16 VDC |
| Dimensions (H x W x D) | 1.9" x 6.8" x 10.1" (4.9 x 17.3 x 25.5 cm) |
Important notes
- Recommended 60 A fuse is not included; install one at the battery.
- Speakers and any remote bass control are sold separately.
- Confirm stereo versus bridged speaker loads before setting gains.
- Plan 4 AWG power and ground runs for the listed 39 A max current draw.
What's in the box
- (1) R2-300X4 4-channel amplifier
- Mounting hardware
- High-level input harness (as supplied)
