Kenwood eXcelon Reference DAX1050XR 10.1″ Receiver
Direct Replacement floating 10.1-inch HD with wireless CarPlay and LDAC
$1,749.99
Overview
The Kenwood eXcelon Reference DAX1050XR is a Direct Replacement digital multimedia receiver with a floating 10.1-inch HD capacitive touchscreen and a separate 1-DIN chassis. It runs Apple CarPlay and Android Auto wirelessly or over USB, streams with Bluetooth 5.2 and LDAC, and adds four camera inputs, HDMI Type-D, an optical output and three 5-volt preouts. It is a mechless unit, so it does not play discs.
Product details
Floating 10.1-inch HD display

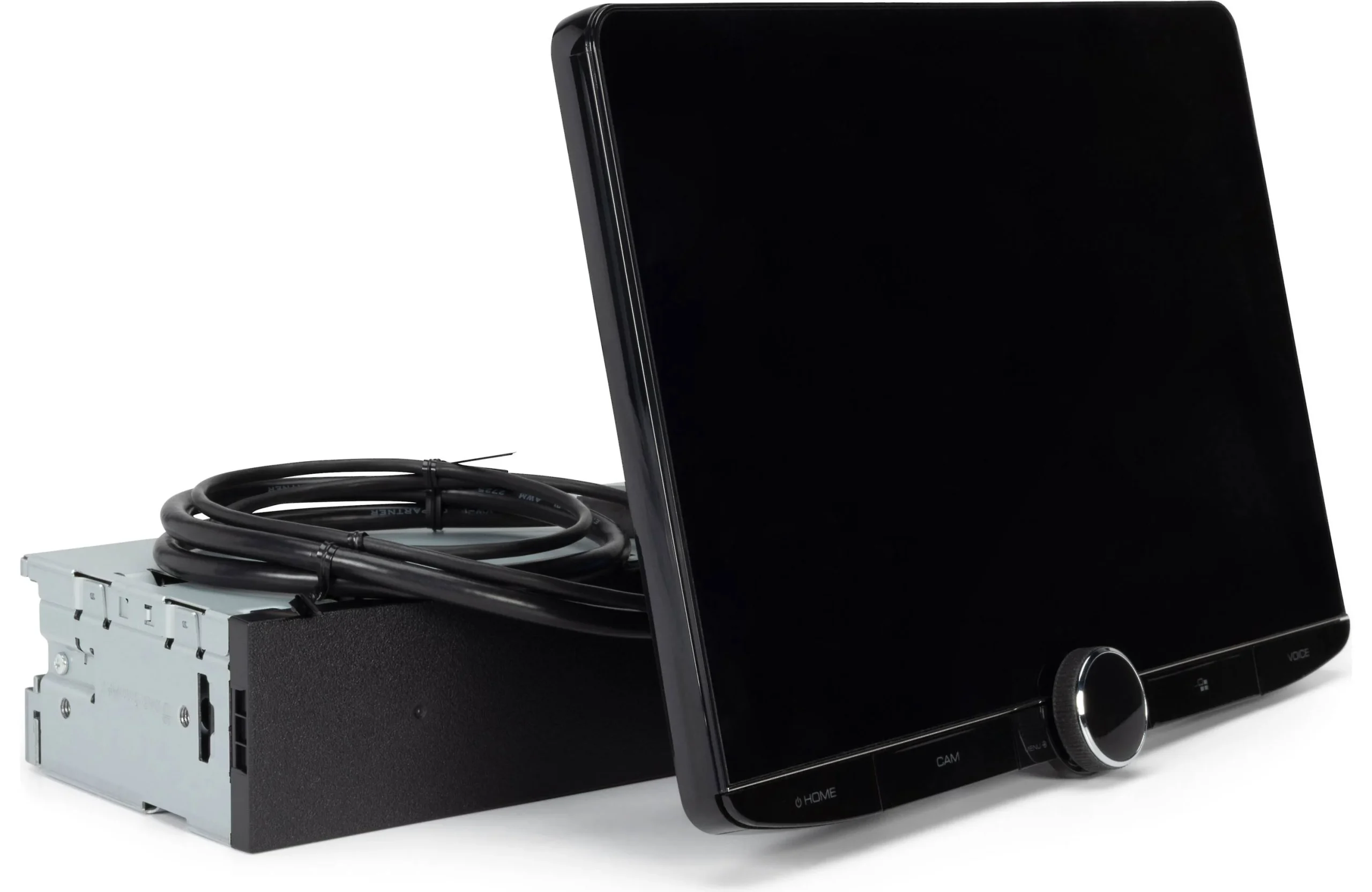

The DAX1050XR pairs a 10.1-inch HD (1280 x 720) capacitive touchscreen with optical bonding and about 170-degree viewing with a separate 1-DIN chassis that can sit horizontally or vertically. Monitor dimensions are 262 x 181 x 52 mm (10-5/16 x 7-1/8 x 2-1/16 in); the chassis is 178 x 50 x 105 mm (7 x 2 x 4-1/8 in). Combined weight is about 2.1 kg (4.5 lb).
Wireless phone apps and Hi-Res audio
Apple CarPlay and Android Auto work wirelessly over dual-band Wi-Fi or over USB. Bluetooth 5.2 supports SBC, AAC and LDAC. The USB Type-C port charges at up to 3.0 A. HDMI Type-D input is available with the optional KCA-HD200 cable. Built-in HD Radio covers AM and FM, and the receiver is SiriusXM Ready and SiriusXM 360L Ready.
Direct Replacement system expansion

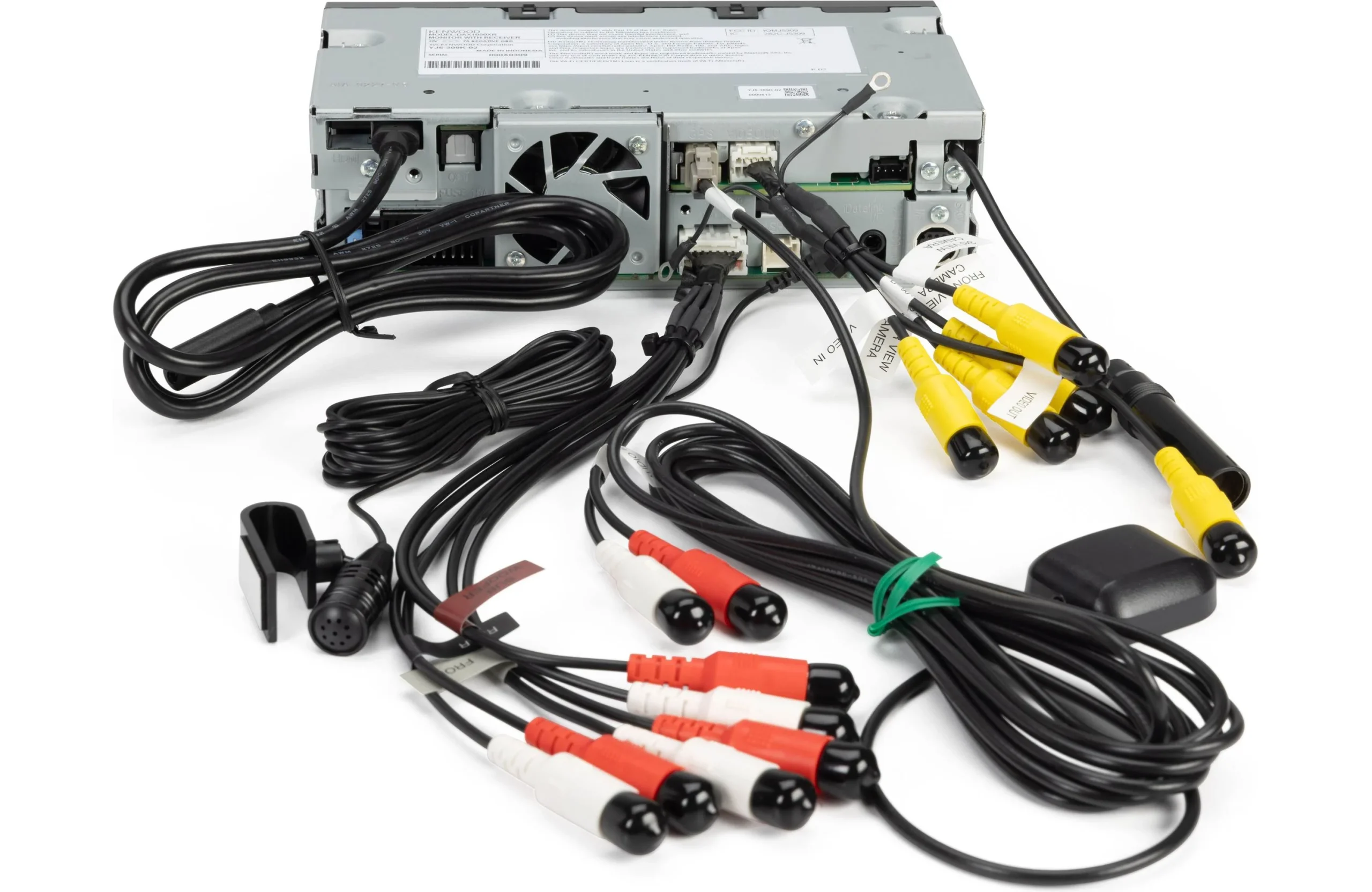

Four camera inputs accept HD front and rear cameras such as the CMOS-740HD. Three 5-volt preouts and an optical digital output (48/96 kHz, 24-bit) feed amplifiers or a processor. A 13-band graphic EQ, 14-point parametric EQ and digital time alignment tune the system. As a Direct Replacement unit it works with iDatalink Maestro RR/RR2 and vehicle-specific Maestro harnesses, sold separately – no general-purpose power/signal harness is included.
Key features
- Floating 10.1-inch HD (1280 x 720) capacitive touchscreen with optical bonding
- Separate 1-DIN chassis for horizontal or vertical mounting
- Wireless and wired Apple CarPlay and Android Auto
- Bluetooth 5.2 with LDAC, SBC and AAC; dual-band Wi-Fi
- USB Type-C charging up to 3.0 A; HDMI Type-D with optional KCA-HD200
- Four camera inputs; HD front and rear camera ready
- Three 5-volt preouts and optical digital output (48/96 kHz, 24-bit)
- 13-band graphic EQ, 14-point parametric EQ and digital time alignment
- Built-in HD Radio; SiriusXM Ready and SiriusXM 360L Ready
- iDatalink Maestro Direct Replacement compatible (module and harness sold separately)
Specifications
| Weight | 4.5 lbs |
|---|---|
| Dimensions | 10.31 × 7.12 × 2.06 in |
| Stereo Type | Mechless, Video |
| Brand | Kenwood |
| Series | eXcelon Reference |
| Model | DAX1050XR |
| Product type | Direct Replacement digital multimedia receiver |
| Chassis | Single-DIN with floating monitor |
| Screen | 10.1-inch HD 1280 x 720 capacitive touch, optically bonded |
| Apple CarPlay | Wireless and wired |
| Android Auto | Wireless and wired |
| Bluetooth | 5.2 (SBC, AAC, LDAC) |
| Wi-Fi | 802.11 a/b/g/n/ac dual band |
| USB | Type-C, USB 2.0, up to 3.0 A |
| HDMI | Type-D (KCA-HD200 cable sold separately) |
| Camera inputs | 4, HD front and rear camera ready |
| Preamp outputs | 3 pairs, 5 V |
| Digital output | Optical, 48/96 kHz, 24-bit |
| Equalizer | 13-band graphic, 14-point parametric, digital time alignment |
| Maximum power | 50 W x 4 |
| Tuner | AM/FM with built-in HD Radio |
| SiriusXM | Ready and 360L Ready (tuner/subscription needed) |
| iDatalink Maestro | Direct Replacement / RR/RR2 compatible (module sold separately) |
| Monitor dimensions | 262 x 181 x 52 mm (10-5/16 x 7-1/8 x 2-1/16 in) |
| Chassis dimensions | 178 x 50 x 105 mm (7 x 2 x 4-1/8 in) |
| Weight | 2.1 kg (4.5 lb) total |
| Chassis Size | Custom |
| Screen Style | Halo |
Important notes
- iDatalink Maestro RR/RR2 (or APX) module and the vehicle-specific Direct Replacement harness are sold separately and required for power, ground and signal in most installs.
- Cameras, the KCA-HD200 HDMI cable, SiriusXM tuner/subscription and any display extension cable are sold separately.
- This receiver does not play CDs or DVDs. Wireless mirroring works with select smartphones only.
What's in the box
- Kenwood eXcelon Reference DAX1050XR chassis and monitor
- USB Type-C cable (1 m)
- Microphone (3 m)
- GPS antenna (3.5 m) with metal plate
- Mounting hardware
