Kenwood eXcelon Reference DMX1058XR 10.1″ Wireless CarPlay Receiver
Floating 10.1-inch HD receiver with wireless CarPlay, Android Auto and LDAC
$1,549.99$1,649.99 (-6%)
Overview
The Kenwood eXcelon Reference DMX1058XR is a digital multimedia receiver with a floating 10.1-inch HD capacitive touchscreen that fits a single-DIN dash opening. It runs Apple CarPlay and Android Auto wirelessly or over USB, streams Hi-Res Audio Wireless with LDAC, and adds built-in HD Radio, four camera inputs, a digital optical output and three 5-volt preouts. It is a mechless unit, so it does not play discs.
Product details

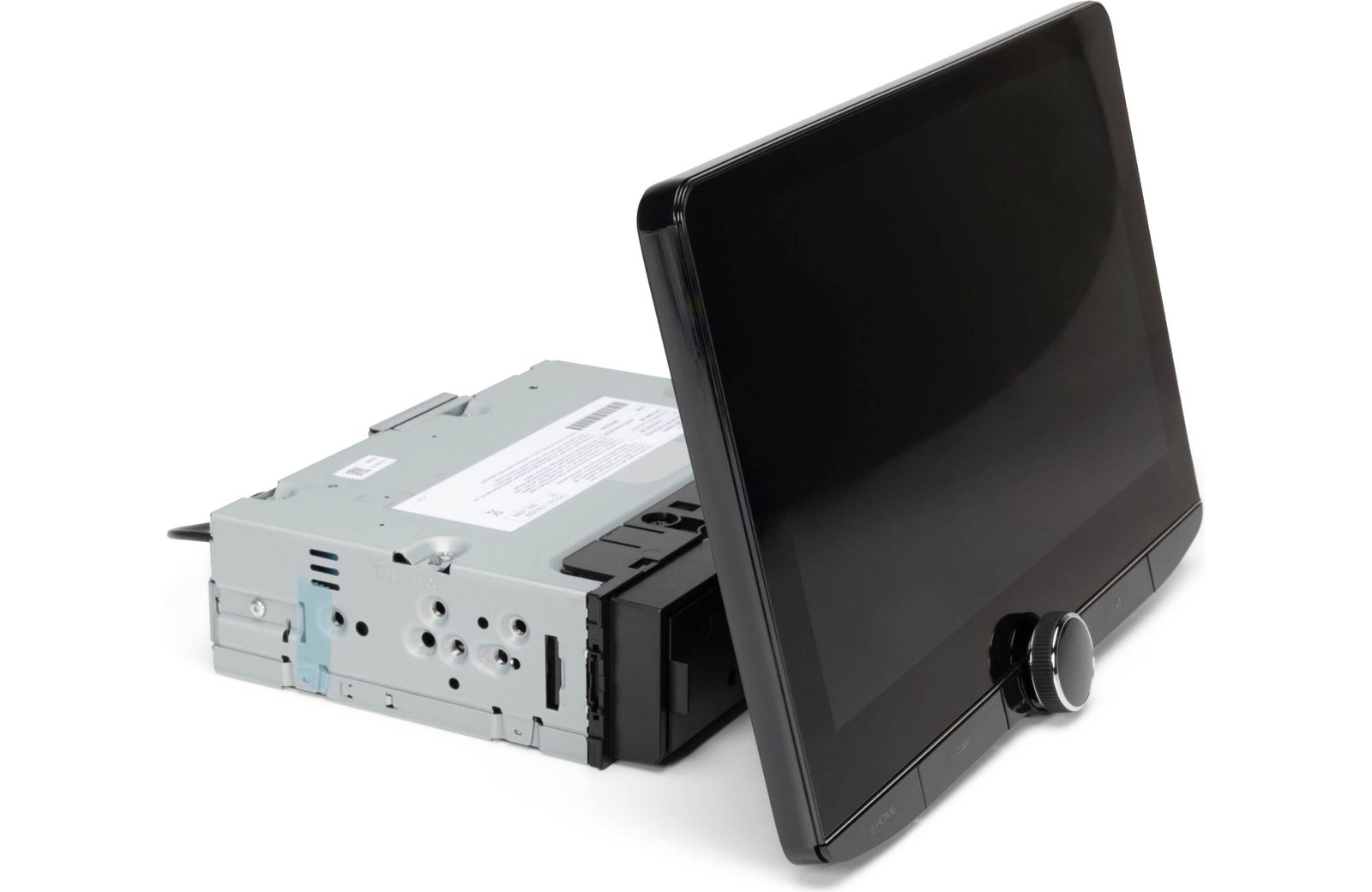

Floating 10.1-inch HD display
The DMX1058XR mounts in a single-DIN opening and holds a 10.1-inch HD (1280 x 720) capacitive touchscreen in front of the dash. The optically bonded panel cuts reflections and offers viewing angles up to 170 degrees. Kenwood’s 4-way adjustment sets depth in 2 steps, height in 4 steps, left and right position in 3 steps, and tilt from -10 to +45 degrees. The home screen can show driving widgets, and a Pitch and Roll screen uses the built-in gyro.
Wireless smartphone connections
Apple CarPlay and Android Auto work wirelessly over dual-band 802.11ac Wi-Fi or over USB, with split-screen views. Select smartphones can mirror wirelessly, and HDMI mirroring is available with the KCA-HD200 cable, sold separately. Bluetooth 5.2 supports SBC, AAC and LDAC for Hi-Res Audio Wireless, and the USB Type-C port charges at up to 3.0 amps. The KENWOOD Portal app adds more features from your phone.
Sound tuning and expansion
A 14-point parametric EQ, a 13-band EQ and digital time alignment let you tune the sound, and a digital optical output (up to 96 kHz/24-bit) feeds an external processor. Three 5-volt preouts connect amplifiers. Four camera inputs accept HD front and rear cameras such as the CMOS-740HD, and Dash Cam Link works with the DRV-N520 (both sold separately). The receiver is iDatalink Maestro RR and RR2 compatible, has built-in HD Radio, and is SiriusXM Ready and SiriusXM 360L Ready.
Key features
- Floating 10.1-inch HD (1280 x 720) capacitive touchscreen on a single-DIN chassis
- 4-way screen adjustment for depth, height, side position and tilt from -10 to +45 degrees
- Wireless and wired Apple CarPlay and Android Auto with split-screen views
- Bluetooth 5.2 with LDAC for Hi-Res Audio Wireless, plus dual-band 802.11ac Wi-Fi
- Wireless mirroring for select smartphones and HDMI mirroring with an optional KCA-HD200 cable
- 14-point parametric EQ, 13-band EQ and digital time alignment
- Digital optical output up to 96 kHz/24-bit and three 5-volt preouts
- Four camera inputs, HD camera ready, with Dash Cam Link for the DRV-N520
- Built-in HD Radio, SiriusXM Ready and SiriusXM 360L Ready
- USB Type-C port with 3.0 A charging and iDatalink Maestro RR/RR2 compatibility
Specifications
| Weight | 5.6 lbs |
|---|---|
| Dimensions | 10.31 × 7.12 × 2.06 in |
| Stereo Type | Mechless, Video |
| Brand | Kenwood |
| Series | eXcelon Reference |
| Model | DMX1058XR |
| Product type | Digital multimedia receiver |
| Chassis | Single-DIN with floating monitor |
| Screen | 10.1-inch HD 1280 x 720 capacitive touch, optically bonded |
| Screen adjustment | Depth 2 steps, height 4 steps, side 3 steps, tilt -10 to +45 degrees |
| Apple CarPlay | Wireless and wired |
| Android Auto | Wireless and wired |
| Bluetooth | 5.2 (SBC, AAC, LDAC) |
| Wi-Fi | 802.11ac dual band |
| Mirroring | Wireless for select phones; HDMI with KCA-HD200 (sold separately) |
| USB | Type-C, up to 3.0 A |
| Audio formats | MP3, WMA, AAC, WAV, FLAC, Vorbis |
| Video formats | MPEG-1/2/4, WMV, H.264, MKV |
| Equalizer | 14-point parametric EQ, 13-band EQ, digital time alignment |
| Digital output | Optical, 48/96 kHz, 24-bit |
| Preamp outputs | 3 pairs, 5 V |
| Maximum power | 50 W x 4 |
| Camera inputs | 4, HD front and rear camera ready |
| Tuner | AM/FM with built-in HD Radio |
| SiriusXM | Ready and 360L Ready (tuner/subscription needed) |
| iDatalink Maestro | RR/RR2 compatible (module sold separately) |
| Chassis dimensions | 7 x 2 x 6-1/4 in (178 x 50 x 158 mm) |
| Monitor dimensions | 262 x 181 x 52 mm |
| Weight | 5.6 lb (2.5 kg) total |
| Chassis Size | 1 DIN |
| Screen Style | Halo |
Important notes
- Cameras, the DRV-N520 dash cam, the KCA-HD200 HDMI cable and iDatalink Maestro modules are sold separately.
- SiriusXM needs a tuner and subscription; SiriusXM 360L also needs a Wi-Fi connection.
- Wireless mirroring works with select smartphones only. This receiver does not play CDs or DVDs.
- A vehicle-specific dash kit and wiring harness adapter may be needed for your vehicle and are not included.

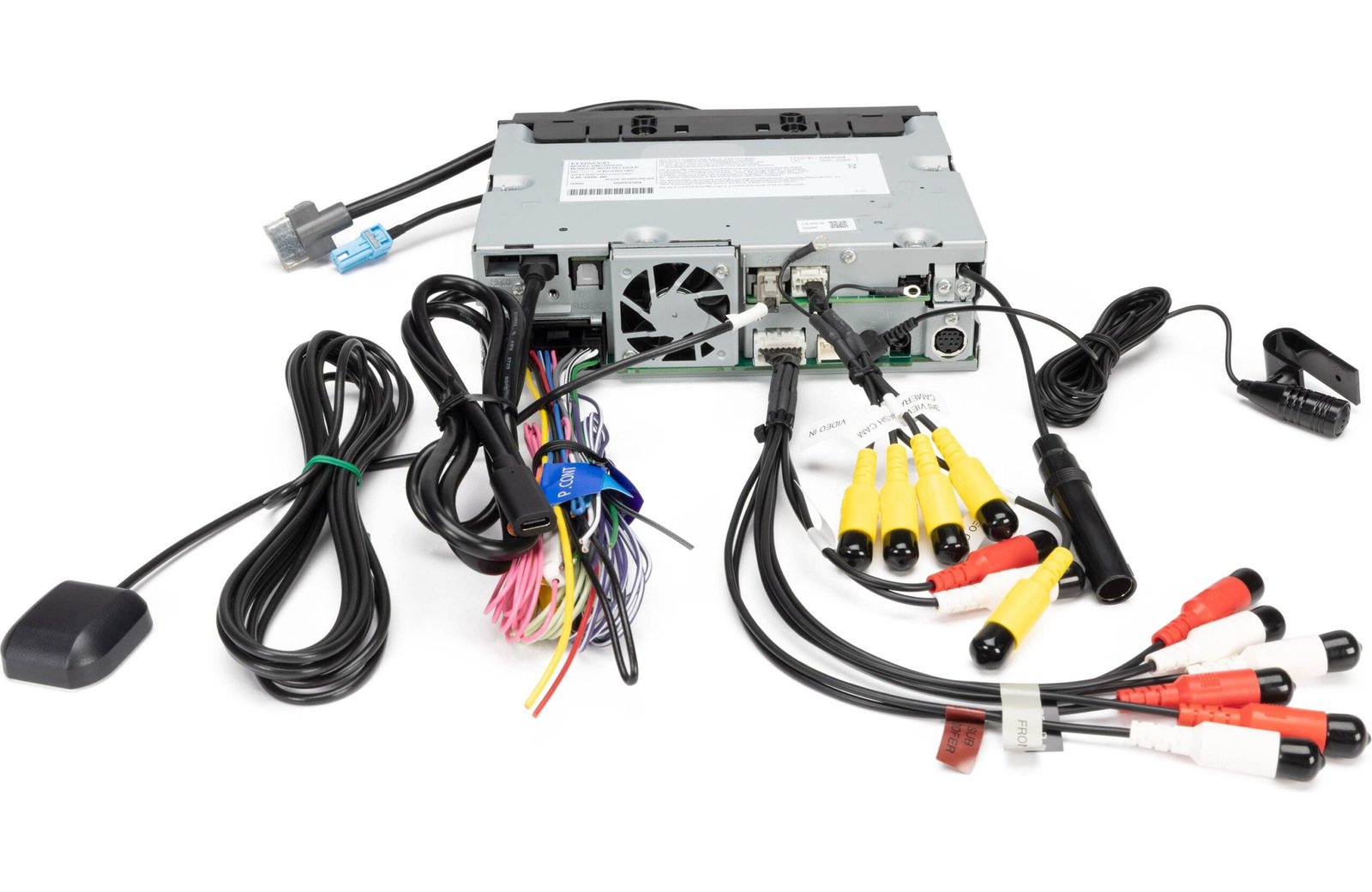

What's in the box
- Kenwood eXcelon Reference DMX1058XR receiver with monitor
- Wiring harness
- GPS antenna (3.5 m)
- Microphone (3 m)
- USB Type-C cable (1 m)
- USB-A adapter
- Mounting hardware and screws
