Kenwood eXcelon Reference XR-1701 6-1/2″ 2-Way Hi-Res Speakers
High-Resolution Audio certified 6-1/2-inch coaxial speakers with glass fiber cones
$239.99
Overview
The Kenwood eXcelon Reference XR-1701 is a pair of 6-1/2-inch 2-way coaxial car speakers certified for High-Resolution Audio. Each one pairs a glass fiber woofer cone with a 1-3/16-inch titanium hard dome tweeter. They handle 100 watts RMS (300 watts peak) at 3 ohms with 87 dB sensitivity, and a multi-bracket plus grilles are included for easier installs in many vehicles.
Product details
Built for High-Resolution Audio

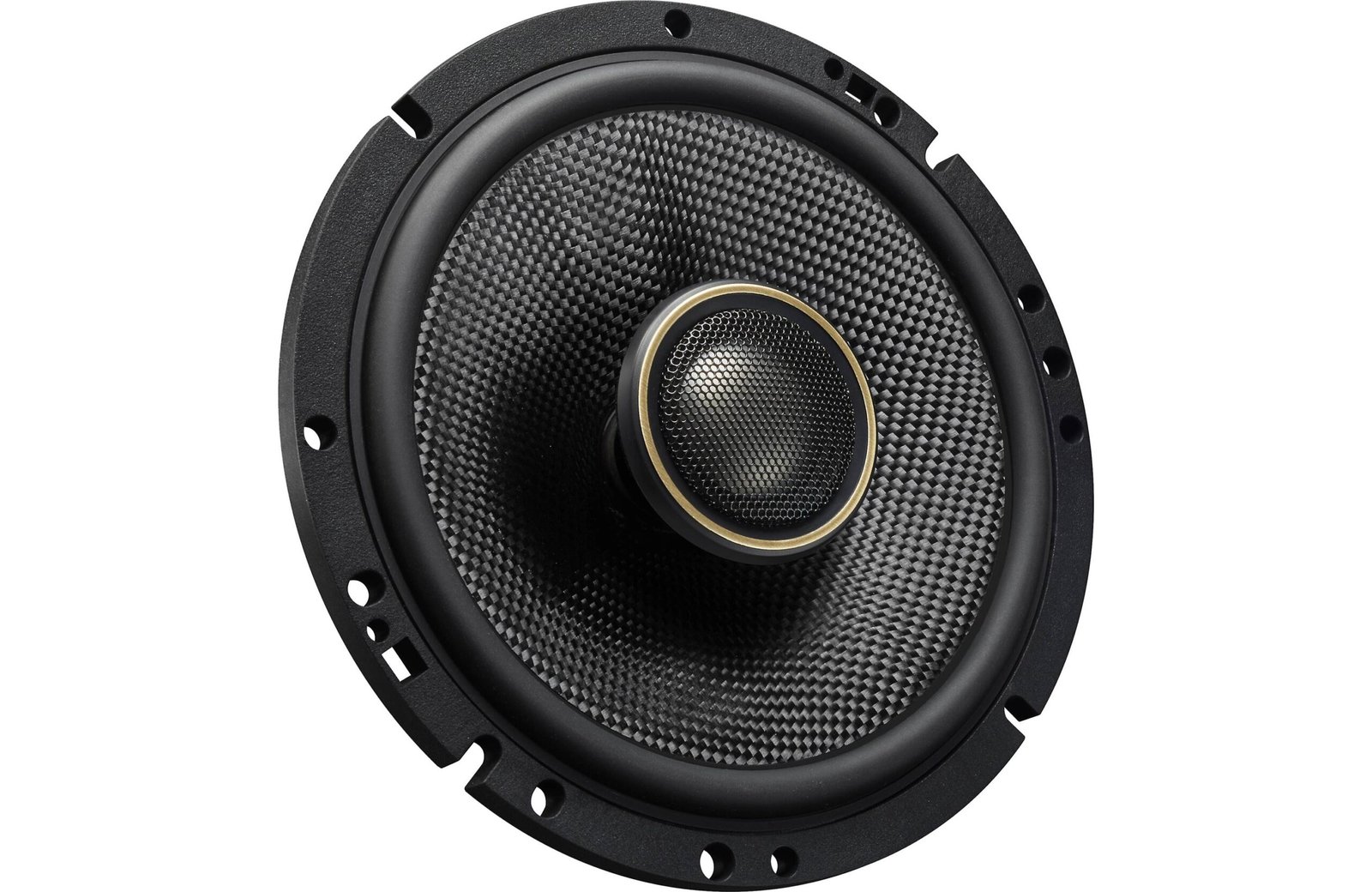

The XR-1701 carries the High-Resolution Audio logo defined by the Japan Audio Society, and its response reaches 40 kHz. The 6-1/2-inch woofer uses a glass fiber cone with a rubber surround and a ferrite magnet. Rated frequency response runs from 45 Hz up to 40 kHz at -10 dB, so the speaker covers both deep bass notes and the very top of the treble range that Hi-Res recordings can contain.
Large titanium tweeter

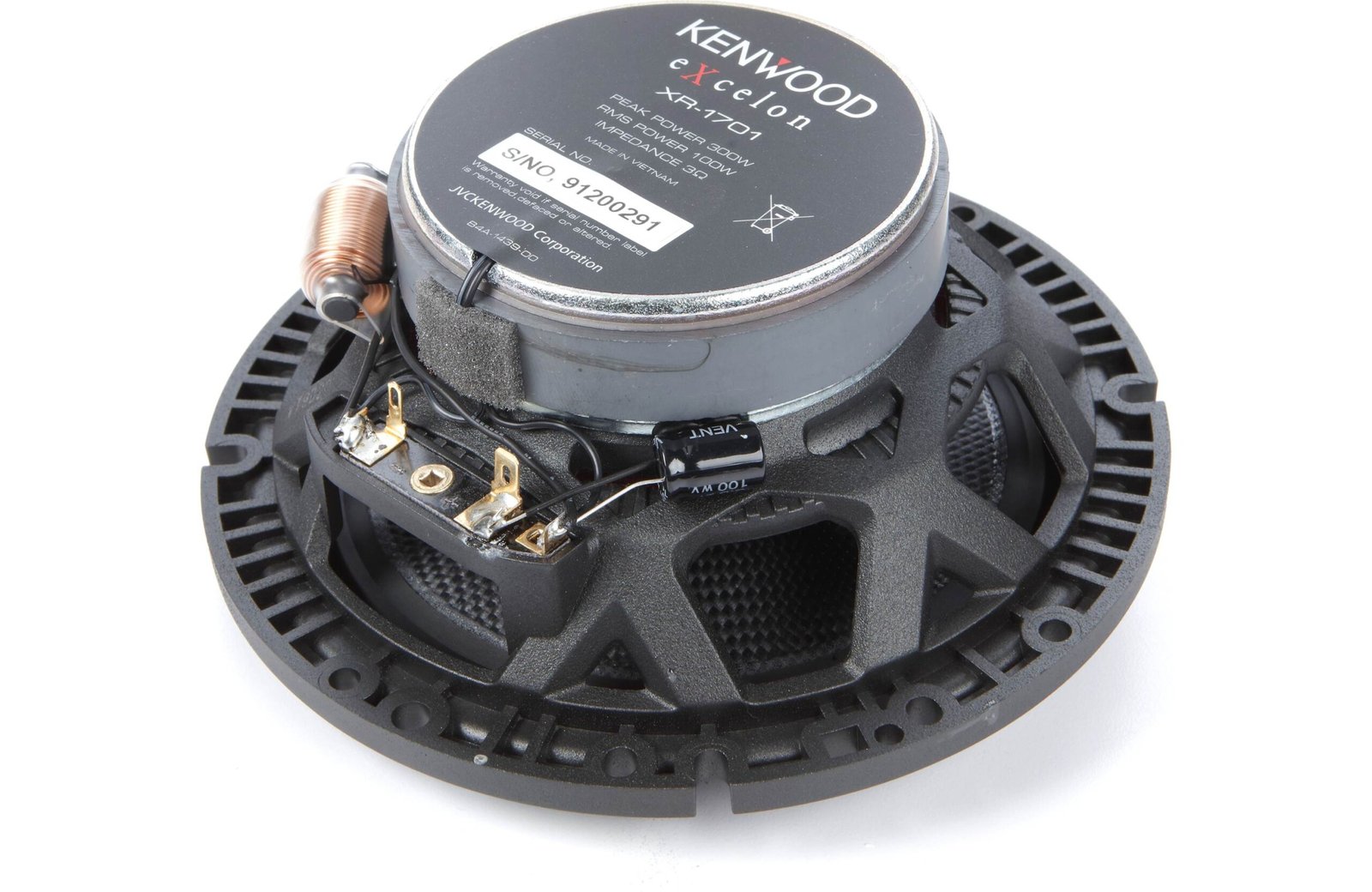

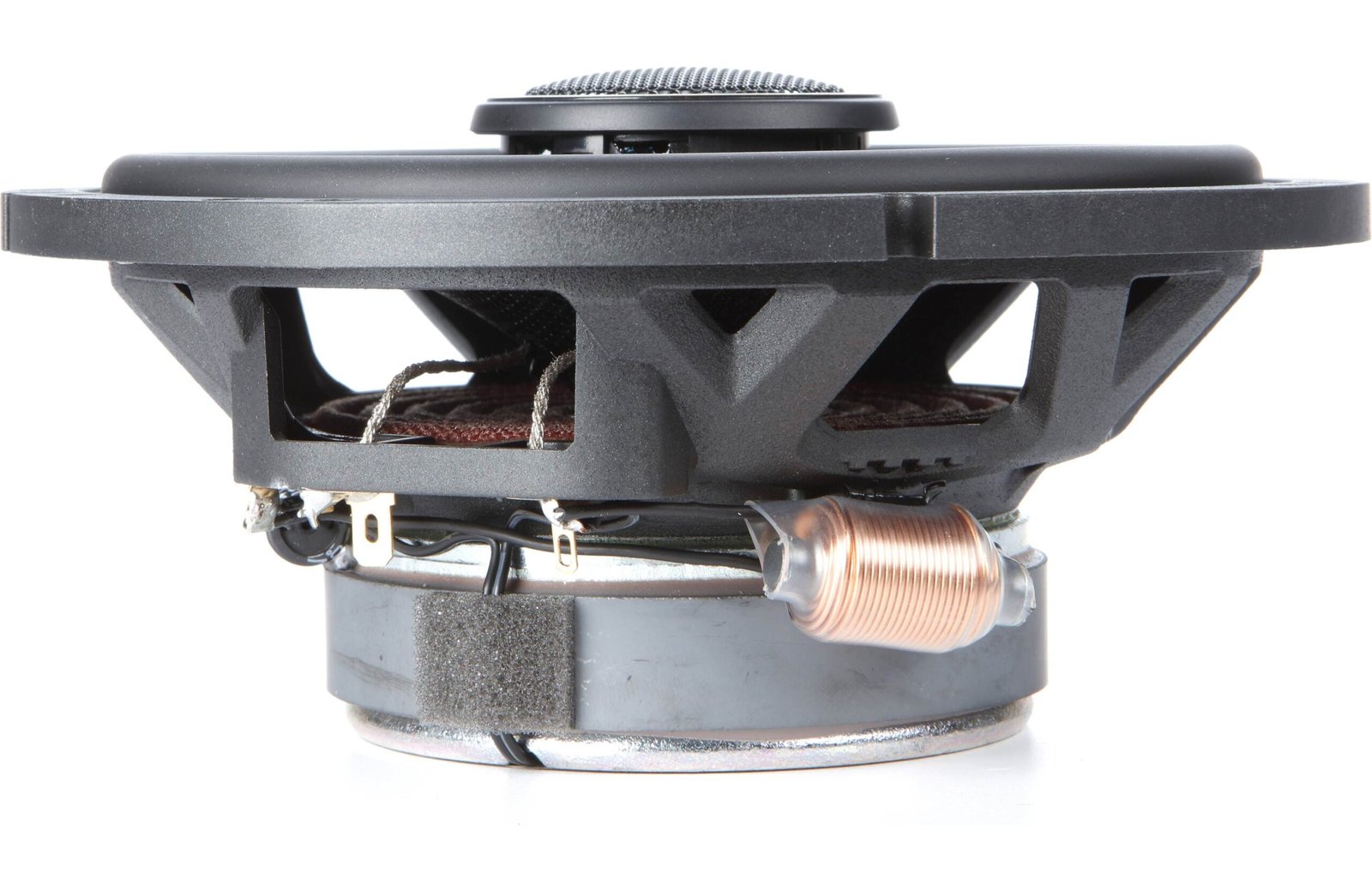

Mounted at the center of each woofer, a 1-3/16-inch (30 mm) titanium hard dome tweeter with a neodymium magnet handles the high frequencies. A built-in high-pass network with a 12 dB per octave slope feeds the tweeter, so the tweeter receives only the high frequencies while the woofer covers the rest.
Power and fit

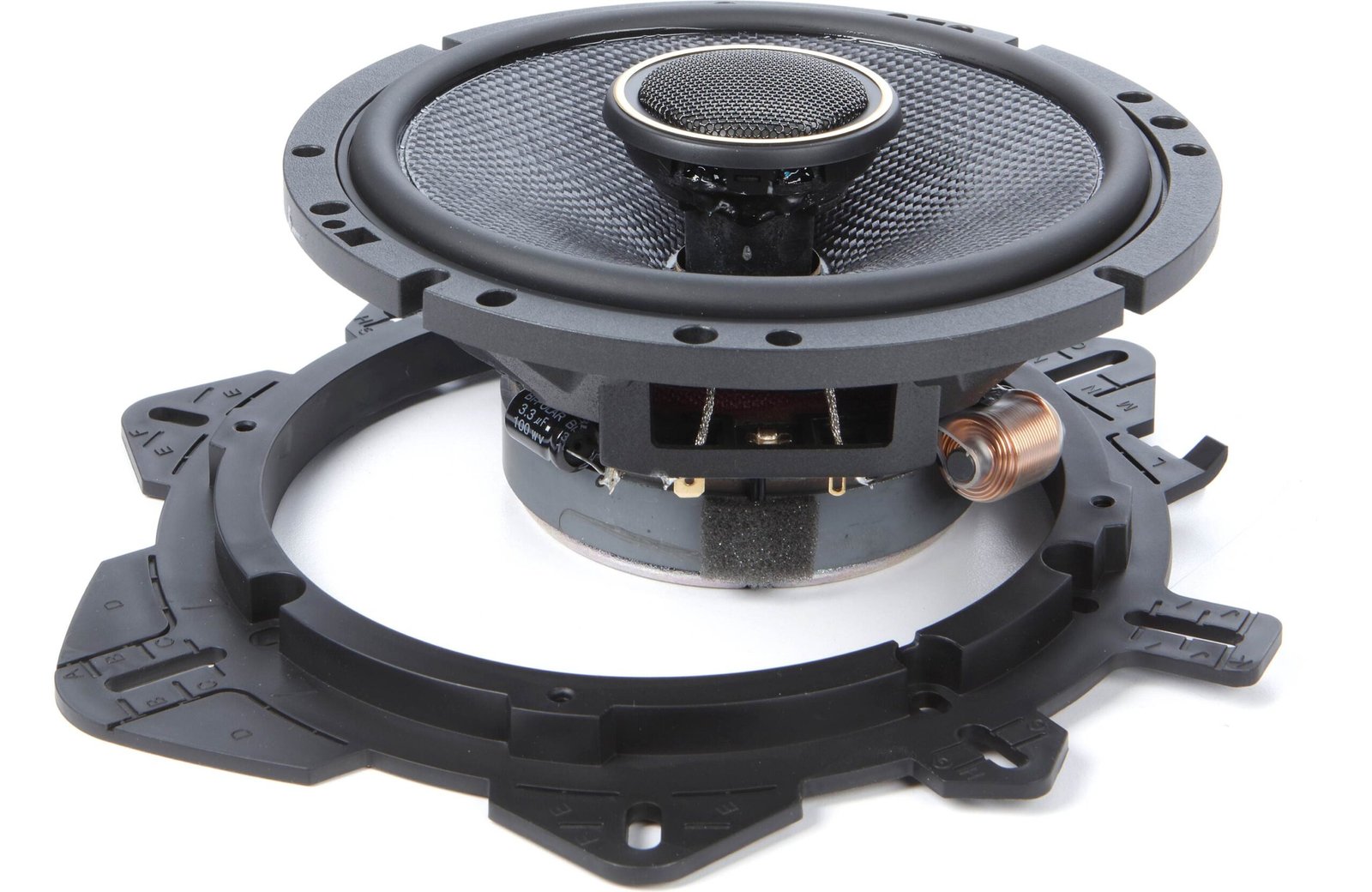

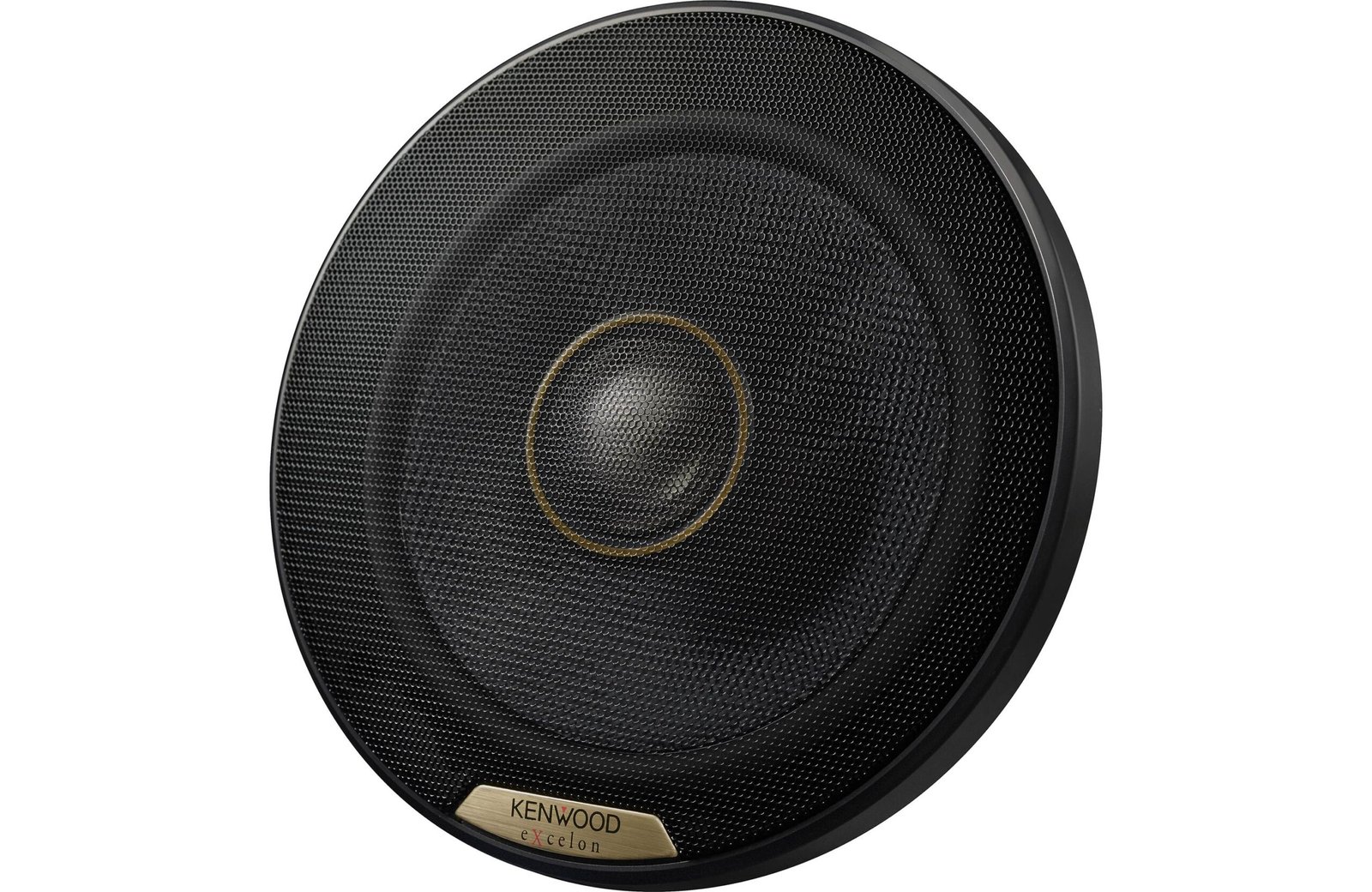

Each speaker handles 100 watts RMS and 300 watts peak at 3 ohms, with 87 dB sensitivity. Response is 64 Hz to 35 kHz (-3 dB) under CTA standards, or 45 Hz to 40 kHz (-10 dB). The cutout is 5-1/2 inches and the mounting depth is 2-5/16 inches. Kenwood includes woofer multi-brackets, including GM fitment, along with grilles, screws, speed nuts, adhesive tape and a mounting template. Each speaker weighs 2.5 pounds with its grille.
Key features
- High-Resolution Audio certified 6-1/2-inch 2-way coaxial speakers, sold as a pair
- 6-1/2-inch glass fiber woofer cone with a rubber surround and ferrite magnet
- 1-3/16-inch (30 mm) titanium hard dome tweeter with a neodymium magnet
- Handles 100 watts RMS and 300 watts peak per speaker at 3 ohms
- Sensitivity of 87 dB and response from 45 Hz to 40 kHz (-10 dB)
- Needs a 5-1/2-inch cutout and 2-5/16 inches of mounting depth
- Woofer multi-bracket, grilles, screws and speed nuts included
Specifications
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 18.1 × 5.4 × 9.7 in |
| Size | 6.5 inch |
| Speaker Type | Coaxial |
| Brand | Kenwood |
| Series | eXcelon Reference |
| Model | XR-1701 |
| Product type | 6-1/2" 2-way coaxial speakers (pair) |
| Hi-Res Audio | Certified (Japan Audio Society) |
| Woofer | 6-1/2 in (165 mm) glass fiber cone, rubber surround |
| Tweeter | 1-3/16 in (30 mm) titanium hard dome, neodymium |
| RMS power | 100 W |
| Peak power | 300 W |
| Impedance | 3 ohms |
| Sensitivity | 87 dB (1 W/1 m) |
| Frequency response | 64 Hz – 35 kHz (-3 dB); 45 Hz – 40 kHz (-10 dB) |
| Crossover | Tweeter high-pass, 12 dB/octave |
| Cutout diameter | 5-1/2 in (140 mm) |
| Mounting depth | 2-5/16 in (59 mm) |
| Outer dimensions | 7-1/16 x 7-1/16 in (180 x 180 mm) |
| Weight | 2.5 lb (1,130 g) each with grille |
| Grilles | Included |
Important notes
- Impedance is 3 ohms. Check that your receiver or amplifier is rated for the load.
- Kenwood recommends 12-22 AWG speaker wire. Check depth behind the mounting location before cutting.
- Kenwood supplies a mounting template with the speakers to help mark the cutout and screw holes.
What's in the box
- Kenwood eXcelon Reference XR-1701 speakers (pair)
- Grilles (2)
- Woofer brackets (2)
- Adhesive tape set
- Tapping screws 4 x 25 mm (12)
- Tapping screws 4 x 18 mm (8)
- Speed nuts (16)
- Instruction manual
