Pioneer DMH-341EX 6.8″ Double-DIN Digital Receiver with WebLink
6.8-inch WVGA receiver with WebLink 2.0, Bluetooth, and five-channel preouts
$199.99$299.99 (-33%)
Overview
The Pioneer DMH-341EX is a double-DIN digital media receiver with a 6.8-inch WVGA touchscreen, WebLink 2.0 phone-app mirroring, and Bluetooth for calls and streaming. It does not include Apple CarPlay or Android Auto. Five RCA preouts at 2 volts and a camera input support an amp and backup camera.
Product details
WebLink receiver without CarPlay
DMH-341EX puts a 6.8-inch WVGA display in a double-DIN chassis for USB media, Bluetooth audio, and WebLink 2.0 app mirroring over a wired USB connection. Choose this model when you want Pioneer touchscreen control without Apple CarPlay or Android Auto licensing.
Sound tuning and camera input
Five-channel RCA preouts at 2 volts feed an external amplifier, and the 13-band EQ plus crossovers help balance speakers and a powered sub. The MOSFET section is rated 14 W RMS x 4 (CTA-2006). A dedicated camera input accepts a compatible backup camera, and Amazon Alexa works through Pioneer Vozsis when your phone is online.
Install notes
Confirm double-DIN fitment and mounting depth. Steering-wheel adapters, dash kits, and cameras are sold separately. Pioneer includes the remote and microphone with the receiver.
Key features
- 6.8-inch WVGA touchscreen in a double-DIN chassis
- WebLink 2.0 smartphone app mirroring over USB
- No Apple CarPlay and no Android Auto on this model
- Bluetooth hands-free calling and A2DP streaming
- 5-channel RCA preouts at 2 volts
- 13-band graphic EQ with crossover control
- Dedicated backup-camera input
- Amazon Alexa via Pioneer Vozsis app pairing
- MOSFET power: 14 W RMS x 4 CTA-2006; 50 W x 4 max

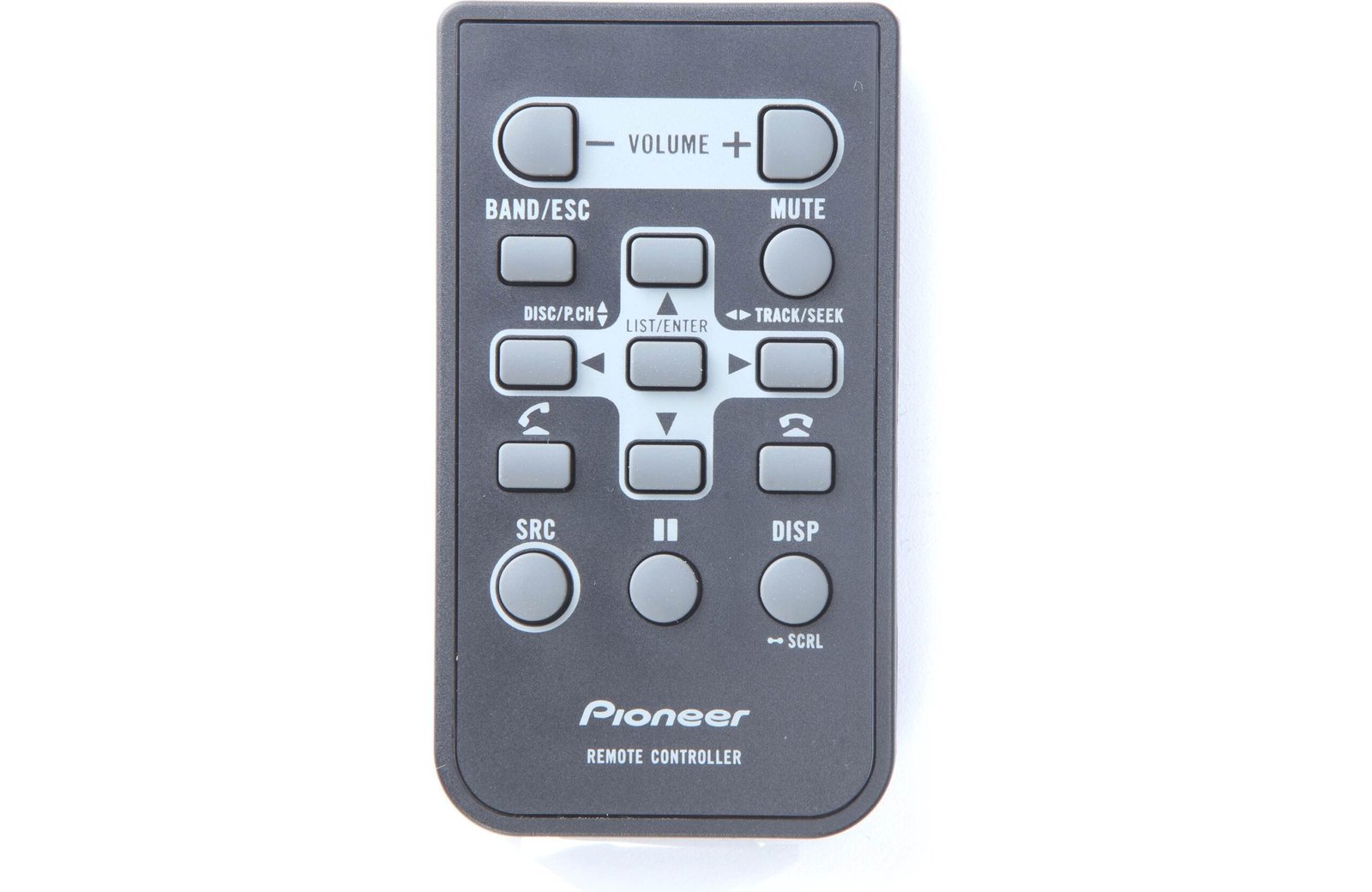

- Remote control and microphone included
Specifications
| Weight | 6 lbs |
|---|---|
| Dimensions | 7 × 3.9375 × 3.375 in |
| Brand | Pioneer |
| Model | DMH-341EX |
| SKU | DMH341EX |
| Product type | Digital Media Receiver |
| Screen Size | 6.8"/16:9 |
| Resolution | WVGA 800 x 480 |
| DIN Size | Double DIN (2-DIN) |
| Apple CarPlay | Not supported |
| Android Auto | Not supported |
| WebLink | 2.0 |
| Bluetooth | Yes |
| RCA Preamp Outputs | 5-ch |
| RCA Preout Voltage | 2V |
| EQ Bands | 13 Band |
| Camera Input | Ready |
| Built-in Amplifier | MOSFET 50 W x 4 |
| RMS Power Output (CTA-2006) | 14 W RMS x 4-ch 4 ohm |
| Max Power Output | 50 W x 4-ch 4 ohm |
| Continuous Power Output | 22 W x 4-Channel |
| USB | Single Rear Type-A (5V, 1.5 A) |
| Remote Control | Included |
| Microphone Included | Included |
| Steering Wheel Control Ready | Yes (adapter sold separately) |
| Stereo Type | Mechless, Video |
| Chassis Size | 2 DIN |
| UPC | 884938479196 |
| Screen Style | Standard |
Important notes
- Does not support Apple CarPlay or Android Auto; use WebLink 2.0 for phone apps.
- Backup camera, dash kit, harness adapters, and SWC interface are sold separately.
- Alexa requires a compatible phone with Pioneer Vozsis and internet access.
- Check double-DIN opening and depth for your vehicle before purchase.
What's in the box
- Pioneer DMH-341EX digital media receiver
- Wiring harness
- Remote control with battery
- Microphone with clip
- USB extension cable
- Mounting screws
- Printed installation guide and quick-start sheet
