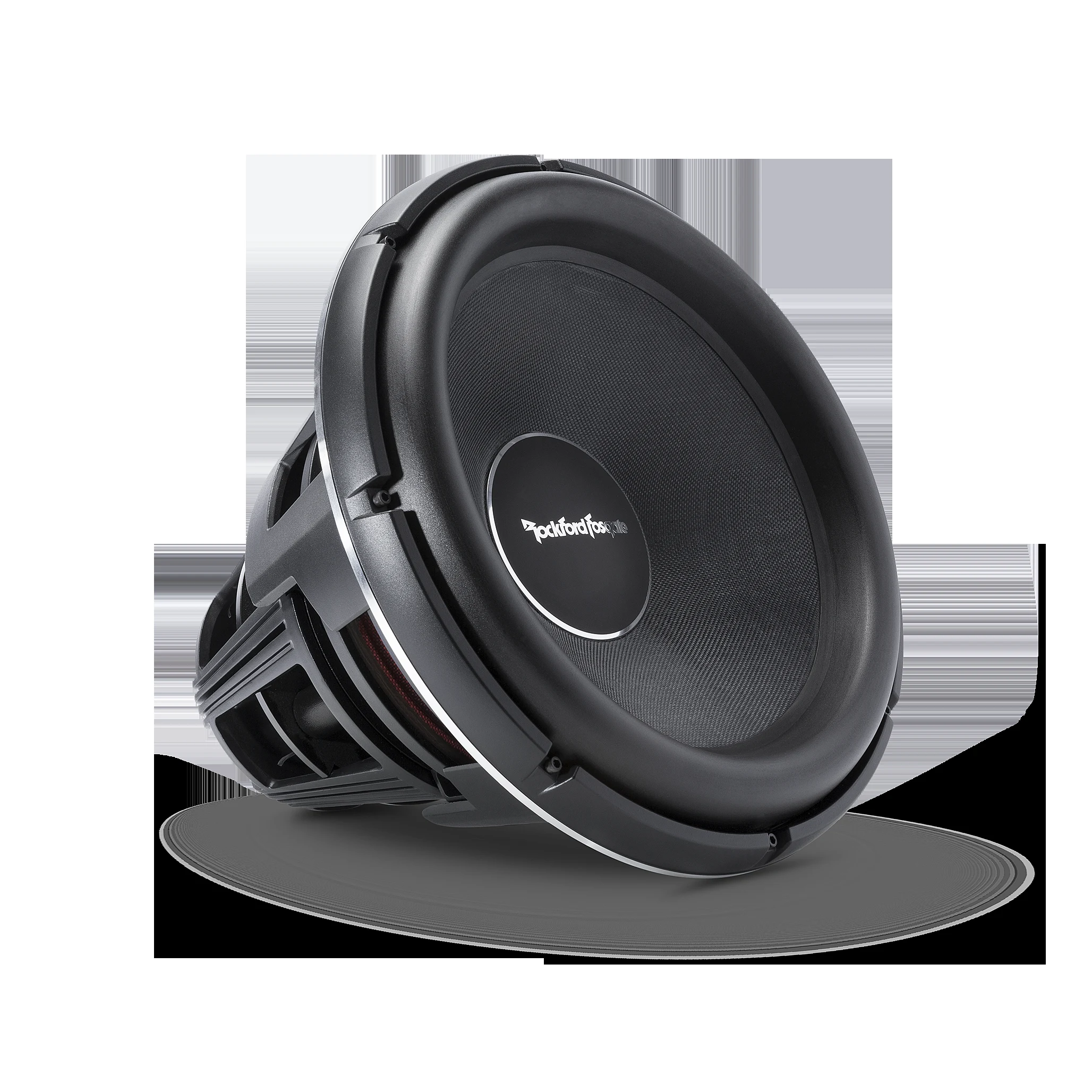

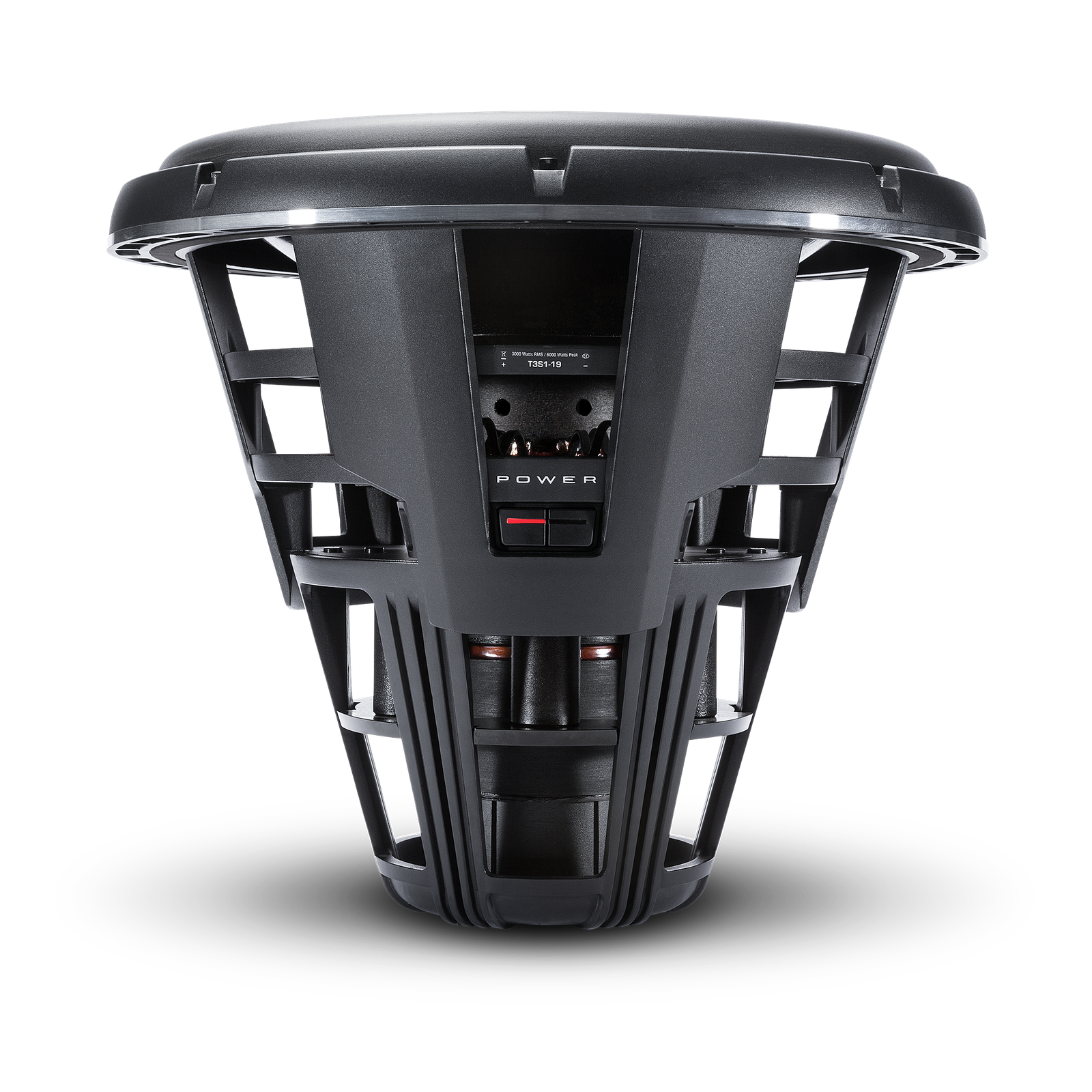

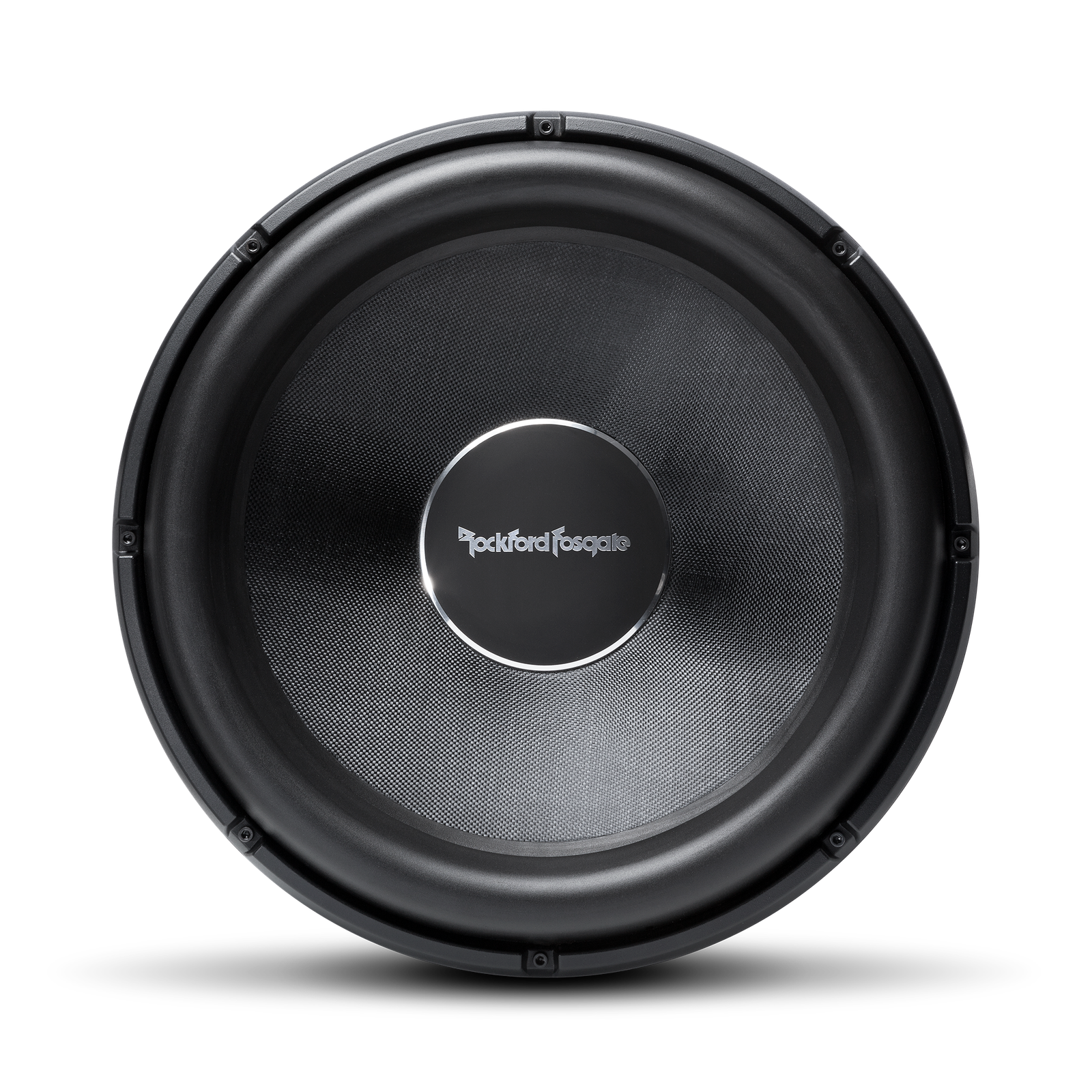

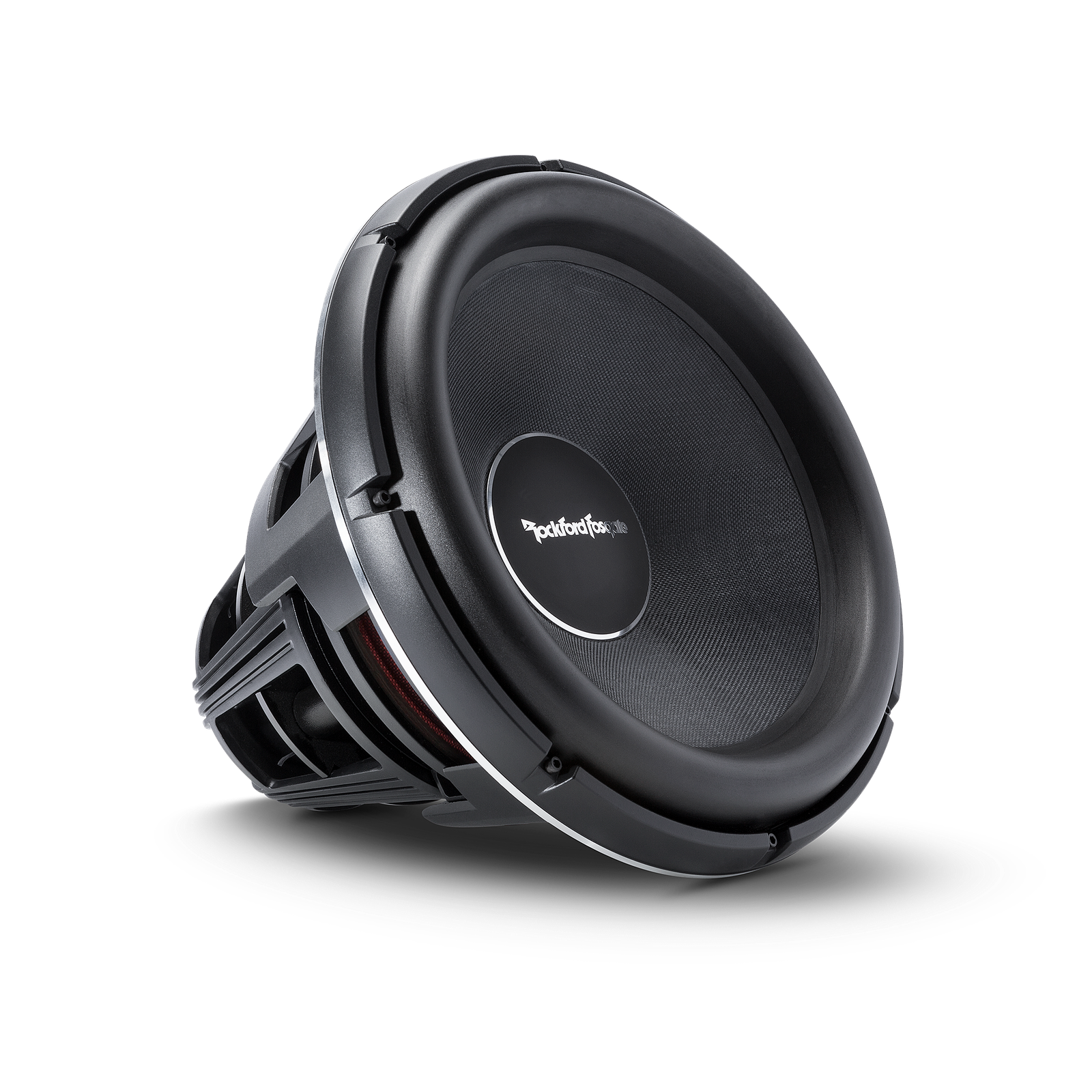

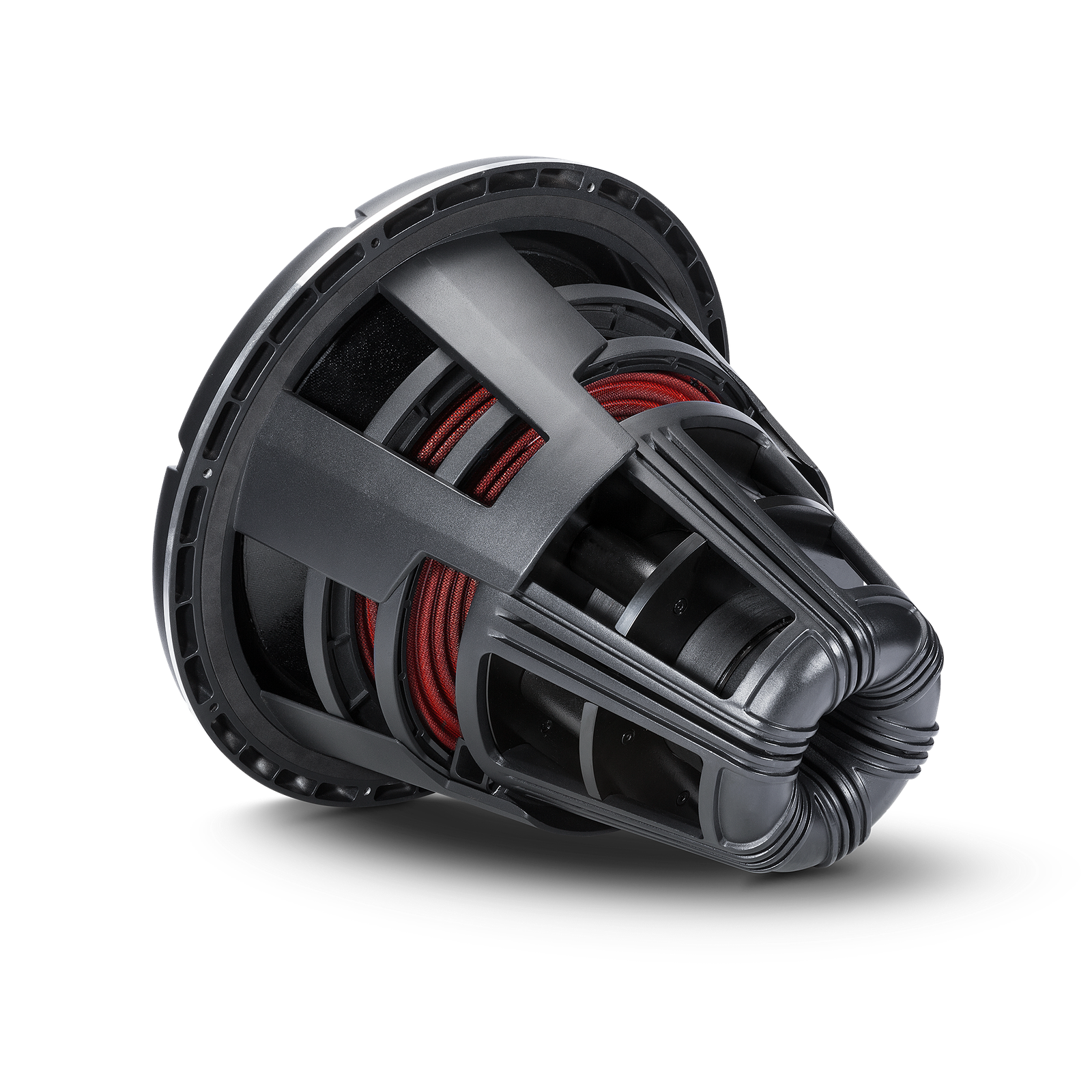

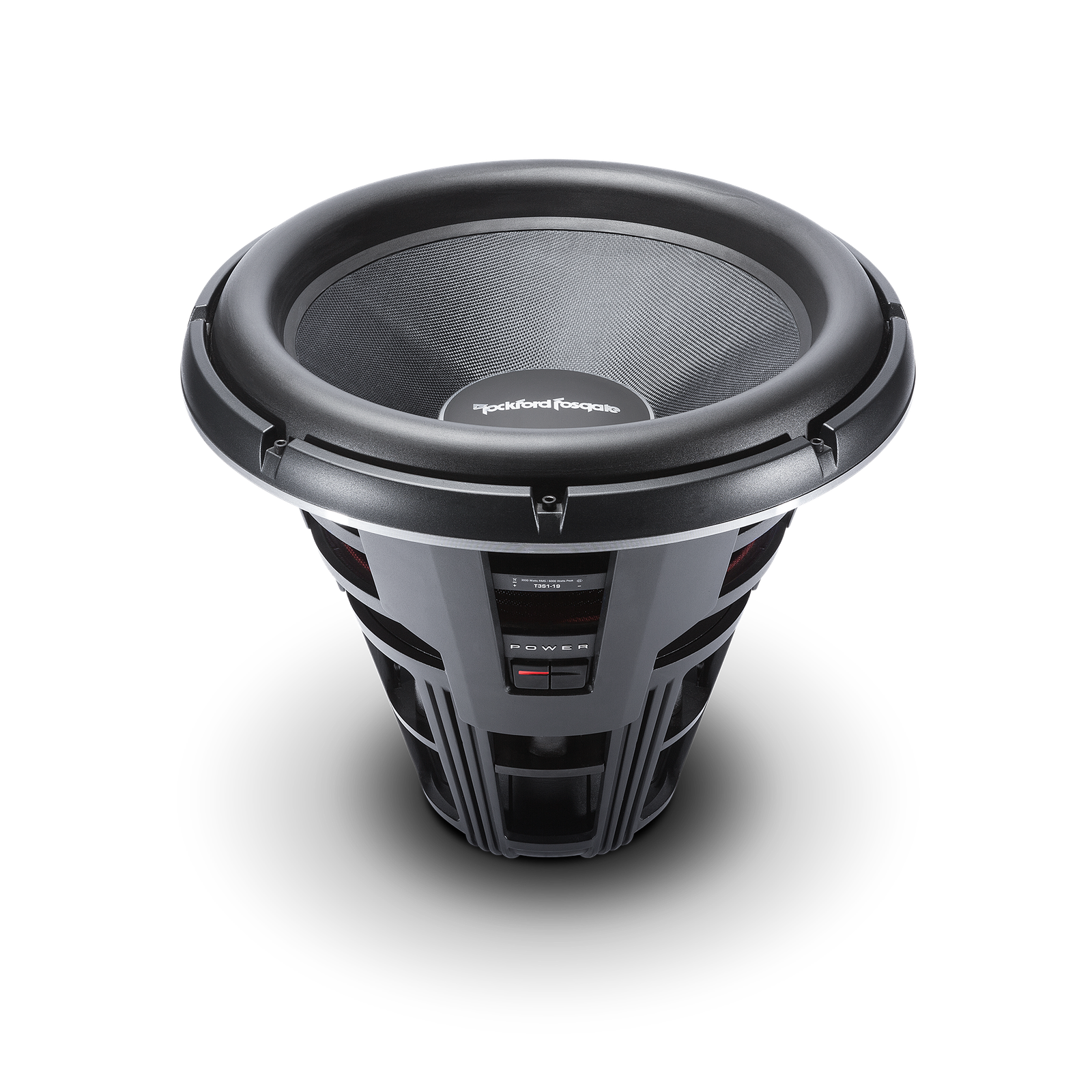

Rockford Fosgate T3S1-19 Power 19″ Superwoofer
Power T3 19-inch single 1-ohm superwoofer for vented enclosures
$2,199.99
Overview
The Rockford Fosgate T3S1-19 is a Power T3 19-inch single 1-ohm superwoofer rated at 3000 watts RMS and 6000 watts max. It is intended for large vented enclosures around 8.0 cubic feet—sealed boxes are not recommended by the manufacturer. Mounting depth is 15.62 inches with a 17.72-inch cutout, and sensitivity is 91 dB (1 W/1 m) with 34 mm of Xmax.
Product details
Power T3 19-inch superwoofer
Rockford Fosgate rates the T3S1-19 at 3000 watts RMS and 6000 watts max into a single 1-ohm voice coil. Sensitivity is 91 dB (1 W/1 m) with Fs near 27 Hz and Xmax of 34 mm. This driver is built for competition-style vented systems that can supply serious current and a large box—not for sealed trunk builds or compact daily-driver enclosures.
Enclosure and fitment
Recommended vented volume is 8.0 cubic feet (226.5 L). Sealed enclosures are not recommended. Mounting depth is 15.62 inches (396 mm) with a 17.72-inch (440 mm) cutout that needs a wide baffle. Woofer displacement is about 0.339 cubic feet. A 4 AWG compression terminal accepts heavy speaker wire. Shipping weight is over 100 pounds, so plan bracing and two-person handling.
Amplifier and install reality
Plan a mono amplifier stable at 1 ohm with appropriate alternator, battery, and wiring upgrades. An enclosure, amplifier, and wiring kit are sold separately. Confirm vehicle space for a 19-inch cutout and 15.62-inch depth before ordering—this is a specialty competition driver, not a simple drop-in trunk woofer for everyday street use. Expect custom fabrication for any vehicle that can house this driver. Plan electrical upgrades early. in the build.
Key features
- Power T3 nineteen inch single one ohm superwoofer for large vented systems
- Rated 3000 watts RMS and 6000 watts max continuous and peak handling
- Sensitivity 91 dB at one watt per meter with 34 mm Xmax excursion
- Recommended vented enclosure volume of 8.0 cubic feet; sealed not recommended
- Mounting depth 15.62 inches with 17.72 inch cutout diameter listed
- Four AWG compression terminal accepts heavy gauge speaker wire connections
- Fs near 27 Hz for deep bass in properly designed vented enclosures
- Shipping weight exceeds 100 pounds; plan two person handling and bracing
Specifications
| Size | 19 inch |
|---|---|
| Brand | Rockford Fosgate |
| Model | T3S1-19 |
| SKU | T3S119 |
| Product type | Subwoofer |
| Voice Coil Type | Single Voice Coil |
| Nominal Impedance | 1 ohm |
| Power Handling (RMS) | 3000 Watts RMS |
| Power Handling (Max) | 6000 Watts Max |
| SPL (dB @ 1W/1M) | 91 dB |
| Fs | 27 Hz |
| Xmax | 34 mm |
| Mounting Depth | 15.62" (396 mm) |
| Cutout Diameter | 17.72" (440 mm) |
| Sealed Box Volume | Not Recommended |
| Vented Box Volume | 8.0 cu. ft. (226.5 L) |
| Speaker Connector | 4 AWG compression |
| Woofer Displacement | 0.339 cu. ft. (9.6 L) |
| Shipping Weight | 106.30 lbs (48.2 kg) |
Important notes
- Sealed enclosures are not recommended; design for about 8.0 cubic feet vented.
- Requires a mono amplifier stable at 1 ohm plus significant vehicle electrical upgrades.
- Confirm 15.62-inch mounting depth and 17.72-inch cutout clearance before ordering.
- Enclosure, amplifier, and wiring kit are sold separately.
What's in the box
- (1) T3S1-19 19-inch superwoofer
