Kenwood DMX5710S 6.8″ Wireless CarPlay & Android Auto Receiver
Double-DIN media receiver with wireless CarPlay, Android Auto and phone mirroring
$459.99
Overview

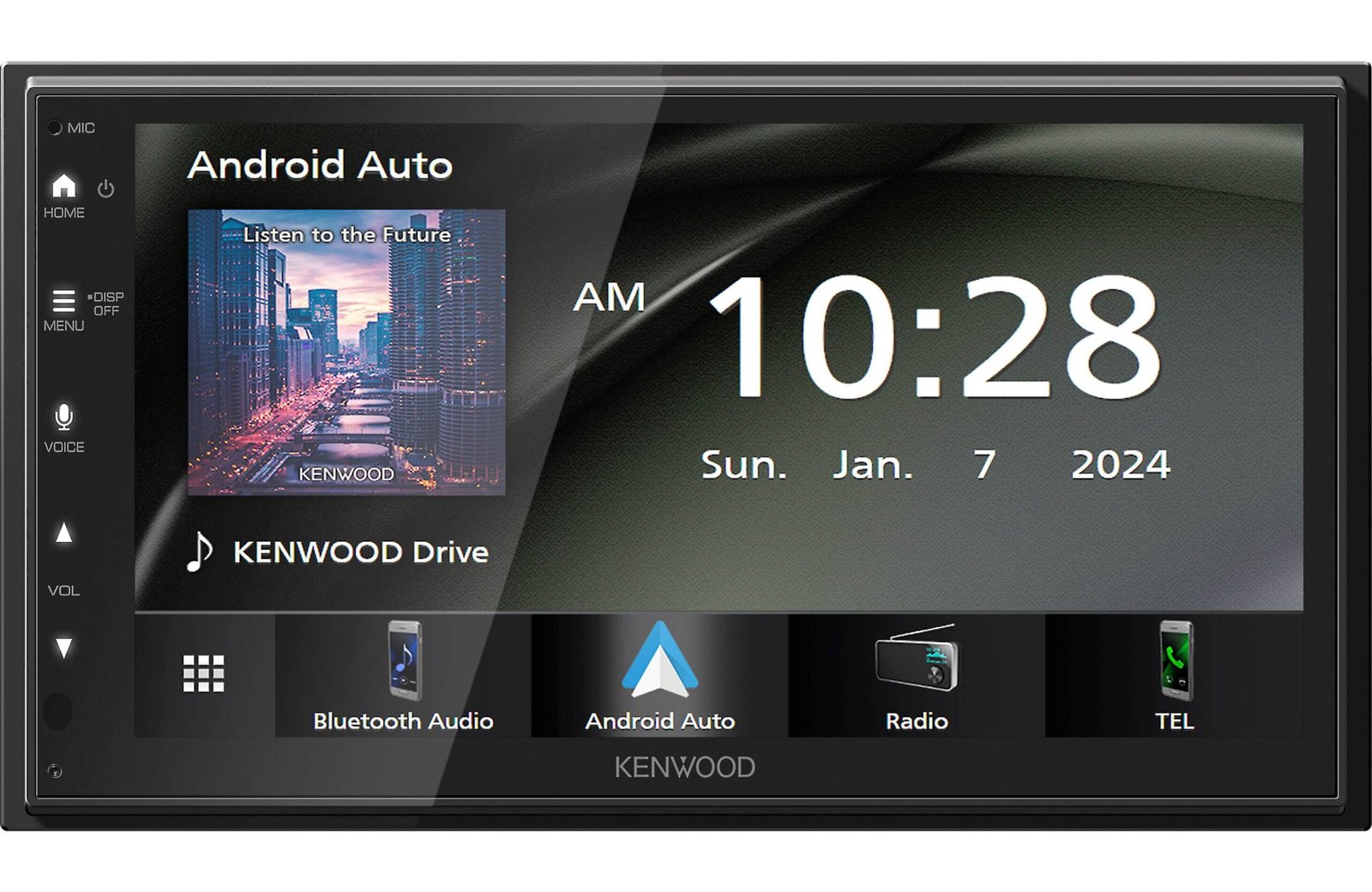

The Kenwood DMX5710S is a double-DIN digital multimedia receiver with a 6.8-inch WSVGA capacitive touchscreen. It runs Apple CarPlay and Android Auto wirelessly or over USB, and can mirror select iPhone and Android phones wirelessly with MirrorAPP+. Built-in Bluetooth, a 13-band EQ with time alignment, a rear camera input, two 2.5-volt preouts plus a subwoofer output and iDatalink Maestro compatibility make it a flexible upgrade. It is a mechless unit, so it does not play discs.
Product details
Wireless CarPlay and Android Auto

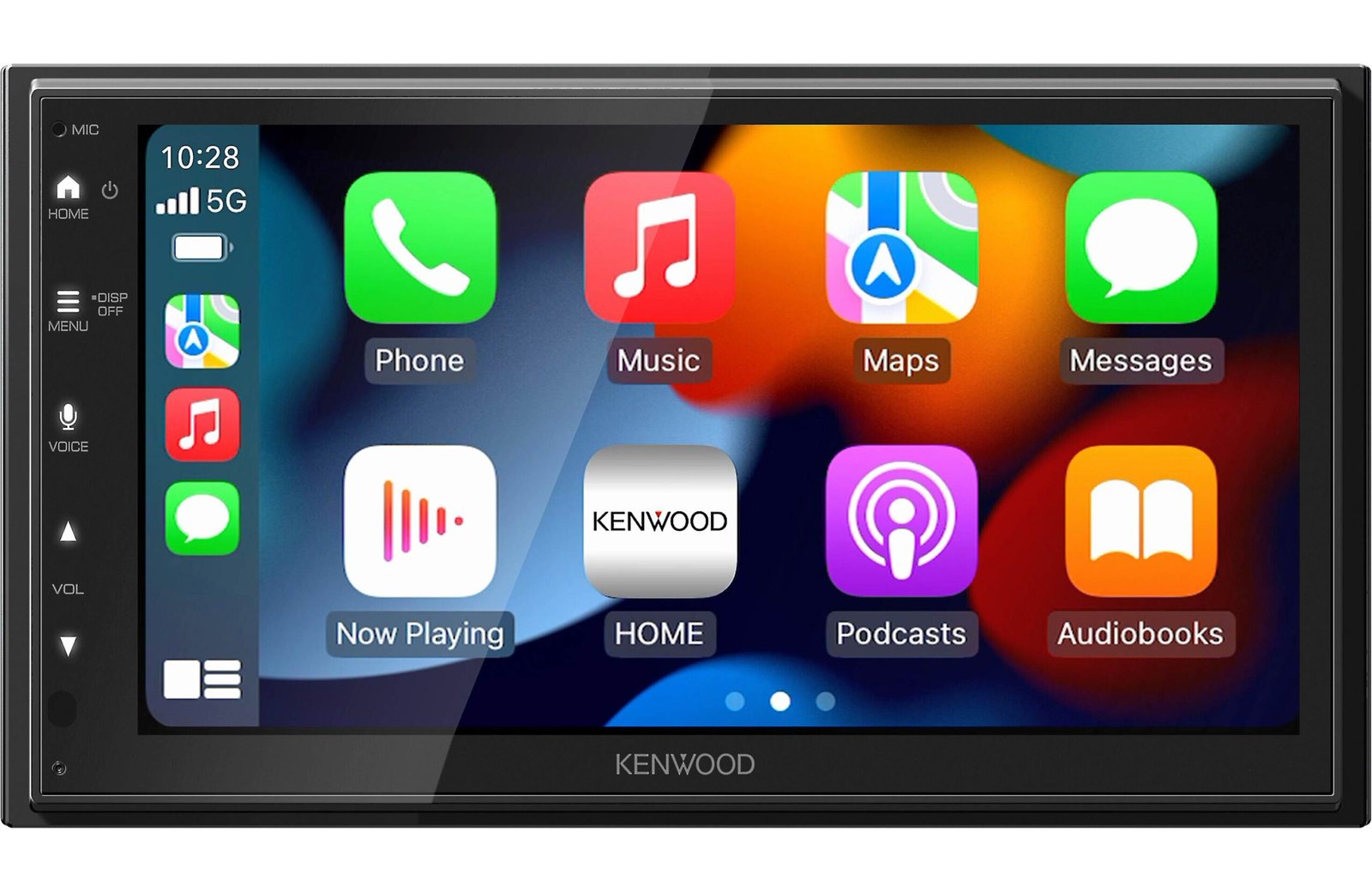

The DMX5710S supports Apple CarPlay and Android Auto both wirelessly and over a USB cable, so maps, calls, messages and music apps appear on the 6.8-inch screen without plugging in for every trip. Wireless connections use built-in 5 GHz Wi-Fi (802.11a/n/ac). With the MirrorAPP+ app, select iPhone and Android phones can also mirror their screen wirelessly. Bluetooth 5.0 handles hands-free calling and audio streaming, and an external Bluetooth microphone comes in the box.
Screen, media and sound tuning
The 6.8-inch WSVGA (1024 x 600) capacitive touch panel uses LED backlighting. The USB connection charges a compatible phone at up to 2.1 amps and plays MP3, WMA, AAC, WAV, FLAC and OGG audio files, plus MPEG, H.264, MKV and WMV video, through a 24-bit DAC. A 13-band graphic EQ and digital time alignment let you tune the sound to your vehicle, and the high-pass and low-pass filters adjust from 30 to 250 Hz with slopes up to 24 dB per octave.
Ready to grow with your system
Two 2.5-volt preouts and a subwoofer output make it simple to add amplifiers, and the rear camera input supports a backup camera with adjustable parking guidelines. The receiver is iDatalink Maestro Ready: with a Maestro RR or RR2 module, sold separately, Kenwood says you can retain factory steering wheel controls, a factory amplifier and secondary displays, and view vehicle information on compatible vehicles. It is also SiriusXM Ready (tuner sold separately) and works with the optional KCA-RCDV340 remote.
Installation
The short-chassis main unit measures 7 x 3-15/16 x 3-3/8 inches (178 x 100 x 85.7 mm) and weighs 2.31 lb. It fits a double-DIN opening, and Kenwood’s manual also explains a single-DIN install by removing the side brackets. A wiring harness, GPS antenna, Bluetooth microphone, parking extension cable and mounting screws are included; a vehicle-specific dash kit and harness adapter are not.
Key features
- 6.8-inch WSVGA capacitive touchscreen with 1024 x 600 resolution and LED backlighting
- Wireless and wired Apple CarPlay for maps, calls, messages and music on screen
- Wireless and wired Android Auto for compatible Android phones with a data plan
- Wireless screen mirroring for select iPhone and Android phones through the MirrorAPP+ app
- Built-in Bluetooth 5.0 for hands-free calls and audio streaming, with an external microphone supplied
- 13-band graphic EQ and digital time alignment for tuning the sound to your car
- Two 2.5-volt preouts plus a subwoofer output for adding amplifiers
- Rear camera input with adjustable parking guidelines for an optional backup camera
- iDatalink Maestro Ready and SiriusXM Ready; Maestro module and SiriusXM tuner sold separately
- USB charging at up to 2.1 amps with audio and video file playback
Specifications
| Weight | 2.31 lbs |
|---|---|
| Dimensions | 7 × 3.9375 × 3.375 in |
| Stereo Type | Mechless, Video |
| Brand | Kenwood |
| Model | DMX5710S |
| Product type | Digital multimedia receiver |
| Chassis | Double-DIN, short chassis |
| Screen | 6.8 in WSVGA capacitive touch, 1024 x 600 |
| Apple CarPlay | Wireless and wired |
| Android Auto | Wireless and wired |
| Screen mirroring | Wireless via MirrorAPP+ (select phones) |
| Bluetooth | 5.0, SBC/AAC |
| Wi-Fi | 802.11a/n/ac, 5 GHz |
| Maximum power | 50 W x 4 |
| Full-bandwidth power | 22 W x 4 (under 1% THD) |
| Preamp outputs | 2 preouts (2.5 V) plus subwoofer out |
| Equalizer | 13-band graphic EQ, digital time alignment |
| Crossover | HPF/LPF 30 – 250 Hz, -6 to -24 dB/oct |
| USB | USB 2.0 Type-A, up to 2.1 A charging |
| Audio formats | MP3, WMA, AAC, WAV, FLAC, OGG |
| Video formats | MPEG1/2/4, H.264, MKV, WMV |
| Camera input | Rear camera with parking guidelines |
| iDatalink Maestro | Ready (RR/RR2 sold separately) |
| SiriusXM | Ready (tuner sold separately) |
| Optional remote | KCA-RCDV340 |
| Main unit dimensions | 7 x 3-15/16 x 3-3/8 in (178 x 100 x 85.7 mm) |
| Weight | 2.31 lb (1.05 kg) |
| Chassis Size | 2 DIN |
| Screen Style | Standard |
Important notes
- A vehicle-specific dash kit, wiring harness adapter and antenna adapter may be needed for your vehicle and are not included.
- Wireless CarPlay and Android Auto need a compatible phone. Mirroring works only with select iPhone and Android models using MirrorAPP+.
- The iDatalink Maestro RR/RR2 module, SiriusXM tuner and subscription, backup camera and KCA-RCDV340 remote are sold separately.
- This is a mechless digital multimedia receiver. It does not play CDs or DVDs.
- Main unit depth is 3-3/8 inches (85.7 mm). Check the space behind your dash opening before installing.
What's in the box
- Kenwood DMX5710S receiver
- Wiring harness
- Parking extension cable, 2 m
- M5 x 8 mm flat-head screws (4)
- M5 x 8 mm screws (4)
- GPS antenna, 3 m
- Double-sided tape and metal plate for the GPS antenna
- Bluetooth microphone, 3 m
- Double-sided tape for the microphone
