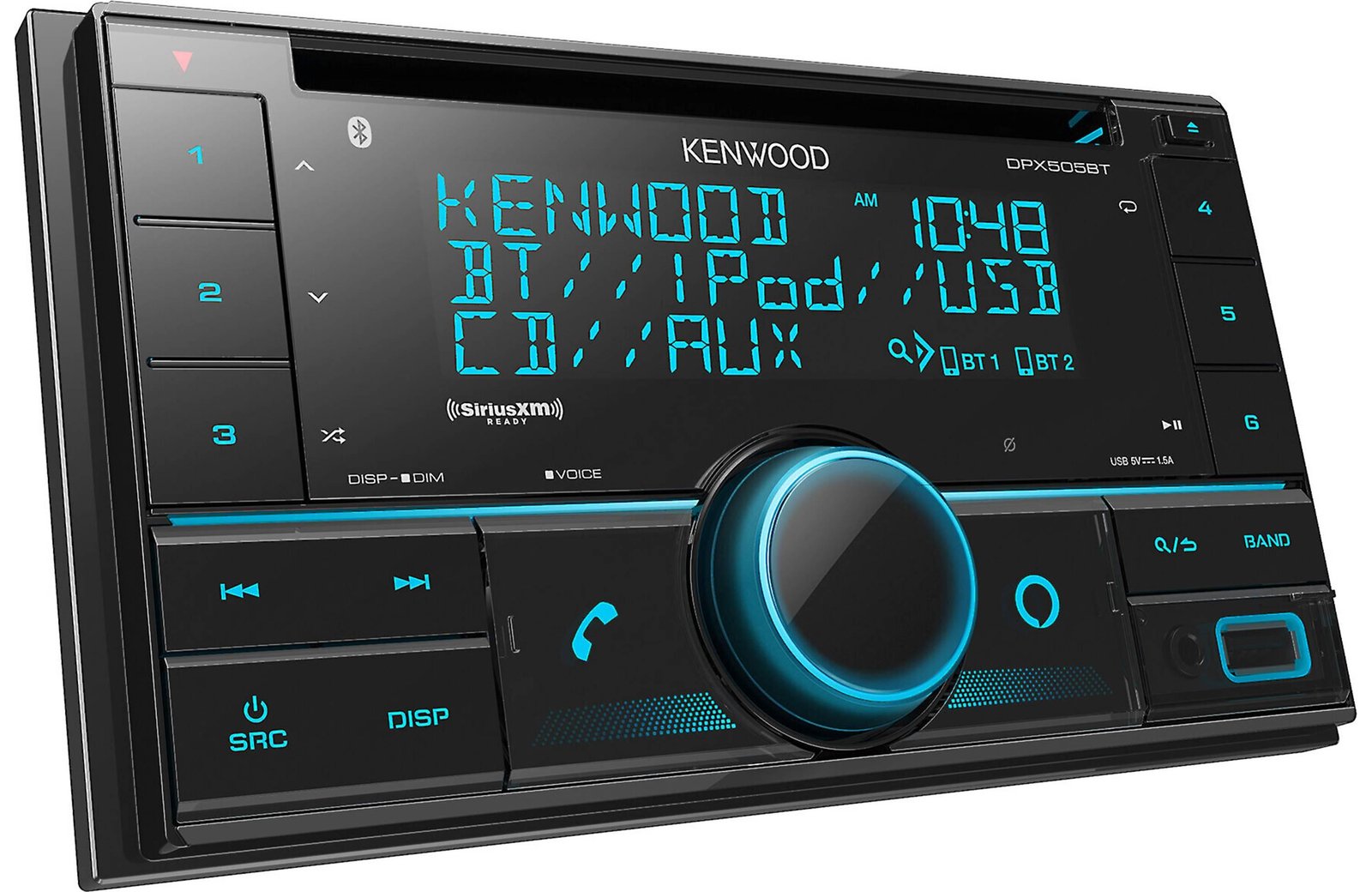

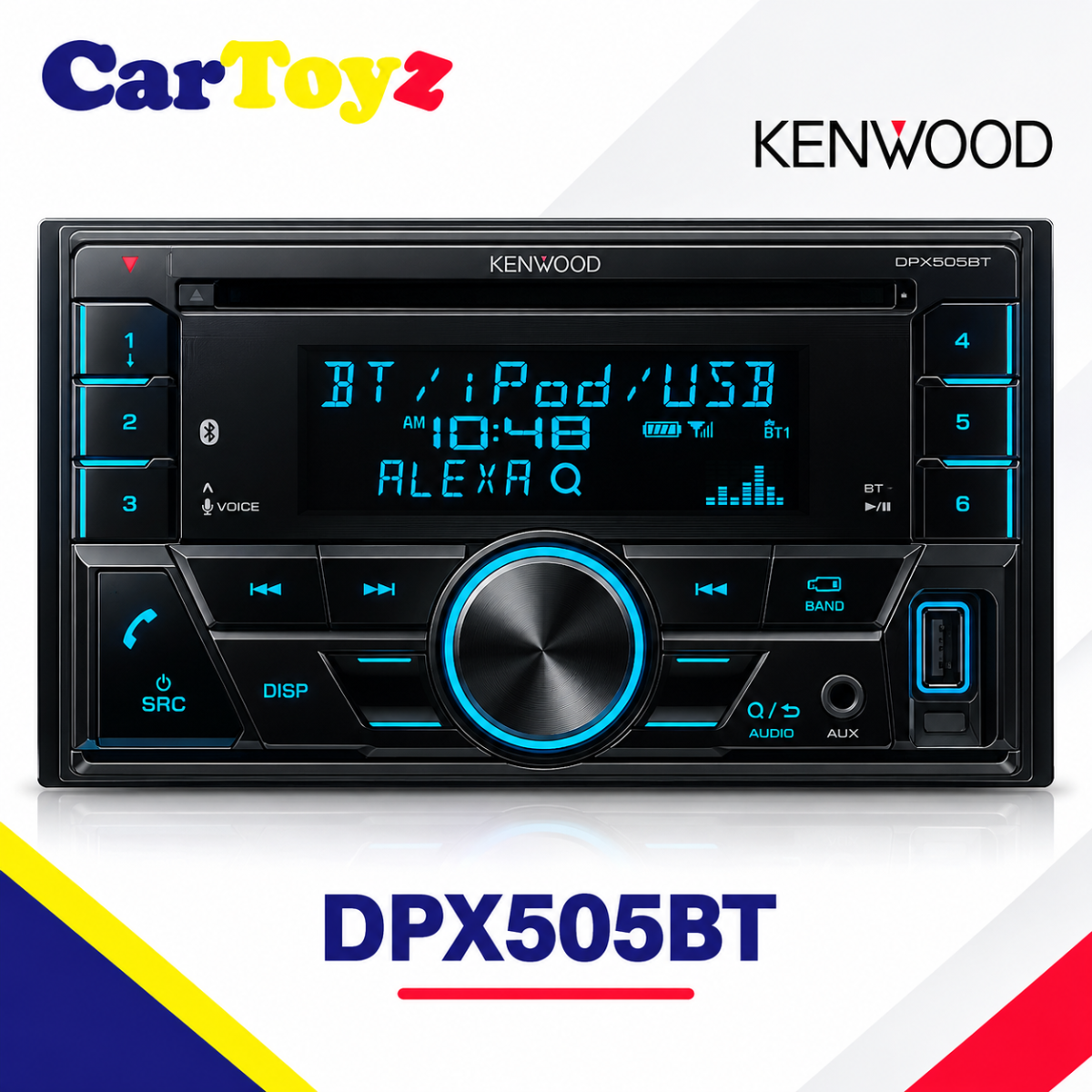

KENWOOD DPX505BT Double DIN CD Receiver Overview

Enjoy the perfect combination of familiar controls and modern entertainment with the Kenwood DPX505BT Double DIN CD Receiver. Designed for drivers who want dependable audio performance without sacrificing convenience, this receiver brings together wireless Bluetooth connectivity, voice assistance, customizable sound settings, and multiple music sources.

Whether you’re streaming your favorite playlists, listening to CDs, making hands-free calls, or tuning your system for better sound, the DPX505BT puts the essential controls within easy reach.

Its large 3-line text display, dedicated physical buttons, and adjustable illumination make it a practical upgrade for compatible vehicles with a Double DIN dashboard opening.

Wireless Bluetooth Connectivity

Connect your smartphone wirelessly using built-in Bluetooth 4.2 for convenient music streaming and hands-free phone calls.

The Kenwood DPX505BT offers several useful Bluetooth functions:

• Hands-Free Calling: Make and receive calls using the included external microphone.
• Dual Phone Connection: Keep two compatible phones connected and switch between them for calling.
• Kenwood Music Mix: Pair up to five compatible Bluetooth devices and take turns streaming music.
• Bluetooth Audio Streaming: Play music from compatible iPhone and Android smartphones.
• Dedicated Bluetooth Control: Access Bluetooth functions through the receiver’s front controls.

Perfect for everyday driving, road trips, and vehicles shared by multiple drivers.

Amazon Alexa Voice Control

Bring convenient voice assistance into your car with Amazon Alexa support.

When connected to a compatible smartphone running the Alexa app, the Kenwood DPX505BT allows you to use voice commands for supported features, including:

• Playing and changing music
• Requesting weather information
• Getting news updates
• Accessing supported Alexa functions
• Adjusting compatible music playback

Activate Alexa using the supported wake word or the receiver’s Alexa control.

Note: Alexa functionality requires a compatible smartphone, the Alexa app, Bluetooth connectivity, and an internet connection. Availability of individual features may vary.

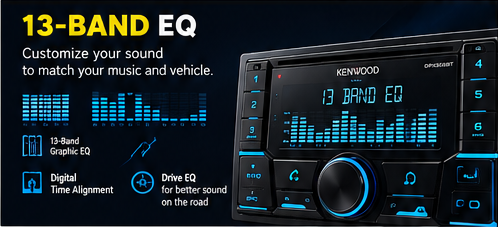

13-Band Equalizer & Digital Time Alignment

Customize the way your music sounds with Kenwood’s advanced audio adjustments.

The built-in 13-band graphic equalizer allows you to fine-tune different frequency ranges to suit your music preferences and vehicle’s speaker setup.

Digital Time Alignment (DTA) provides additional control over speaker timing, helping create a more balanced listening experience from the driver’s seat.

Drive EQ Technology

Road and engine noise can make certain parts of your music harder to hear. Kenwood’s Drive EQ adjusts selected audio frequencies to help compensate for typical vehicle noise.

Combined with the 13-band EQ and Digital Time Alignment, these tools allow greater control over sound quality than a basic factory stereo.

High-Contrast 3-Line LCD Display

The DPX505BT includes a high-contrast, 420-segment, 3-line text display that makes essential listening information easier to read.

View supported information such as the audio source, track details, station information, and playback status.

Its traditional button-based design also offers direct access to frequently used functions without navigating a touchscreen menu.

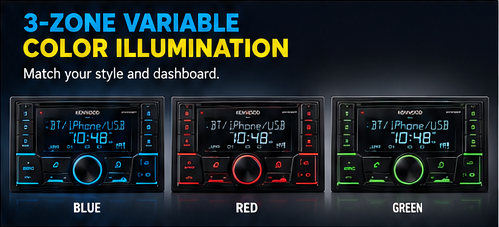

Customizable 3-Zone Illumination

Personalize the receiver’s appearance to complement your dashboard lighting.

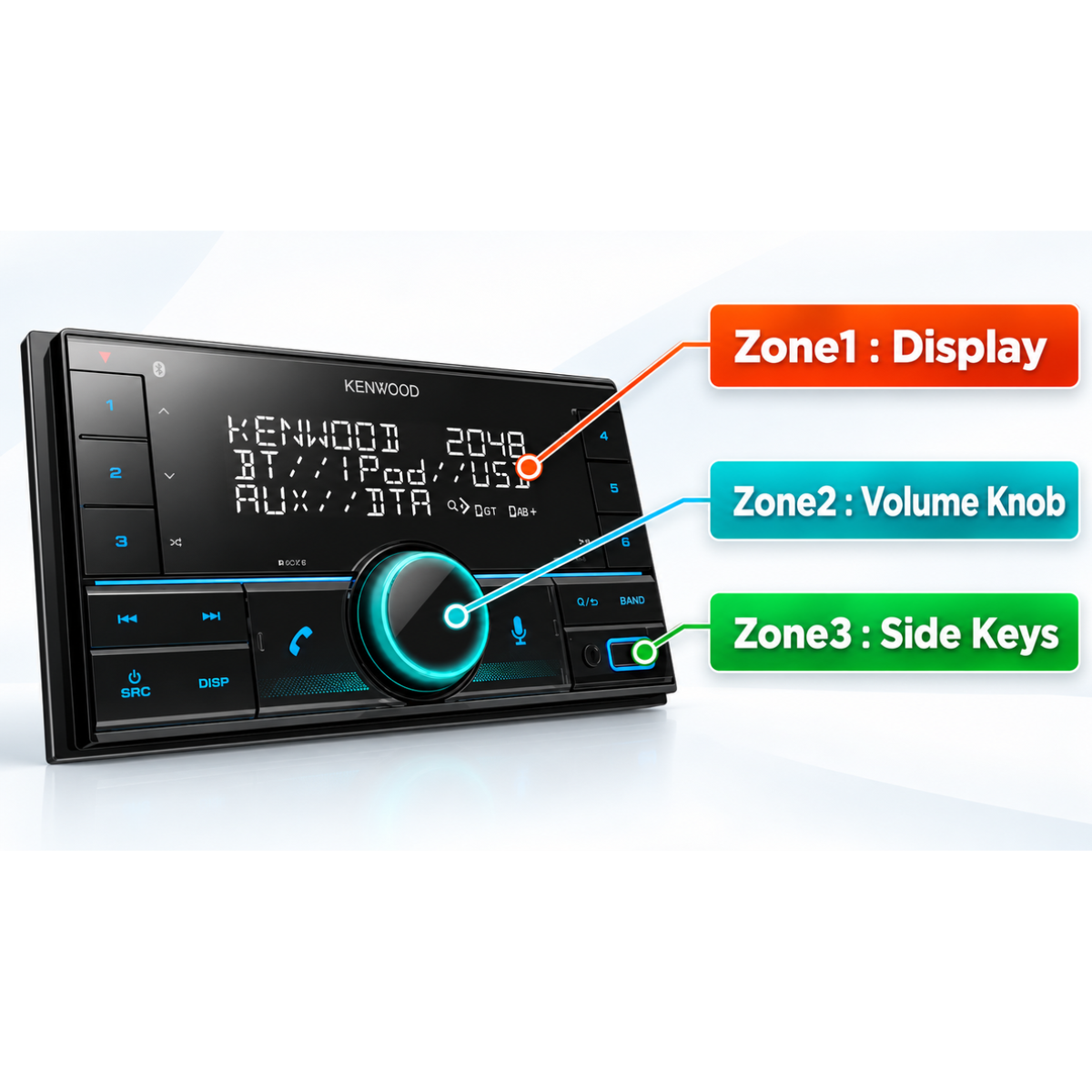

The DPX505BT offers variable-color LED illumination with three independently adjustable color zones on the front panel.

Choose lighting that suits your dashboard or create a distinctive look for your car’s interior.

Multiple Ways to Enjoy Your Music

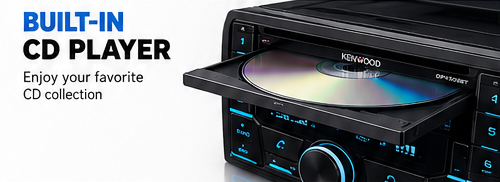

Built-In CD Player

Keep your favorite CD collection on the road.

The receiver supports standard audio CDs and compatible recordable or rewritable discs, including supported MP3, WMA, and AAC recordings.

Front USB Port

Connect a compatible USB flash drive or supported device to access stored music files.

The receiver supports several popular digital audio formats, including:

• FLAC (up to 24-bit/96kHz)
• WAV
• MP3
• WMA
• AAC

The USB connection also offers up to 5V/1.5A power output for supported devices.

Front Auxiliary Input

Connect compatible portable audio players or other devices with an analog audio output using the front AUX connection.

AM/FM Radio

Listen to local stations using the built-in AM/FM tuner, with convenient station presets.

SiriusXM Satellite Radio Ready

Expand your entertainment choices with compatible SiriusXM satellite radio equipment.

SiriusXM provides access to additional music, news, sports, and entertainment channels through a compatible connected tuner and active subscription.

Important: A SiriusXM Connect Vehicle Tuner and subscription are required and sold separately.

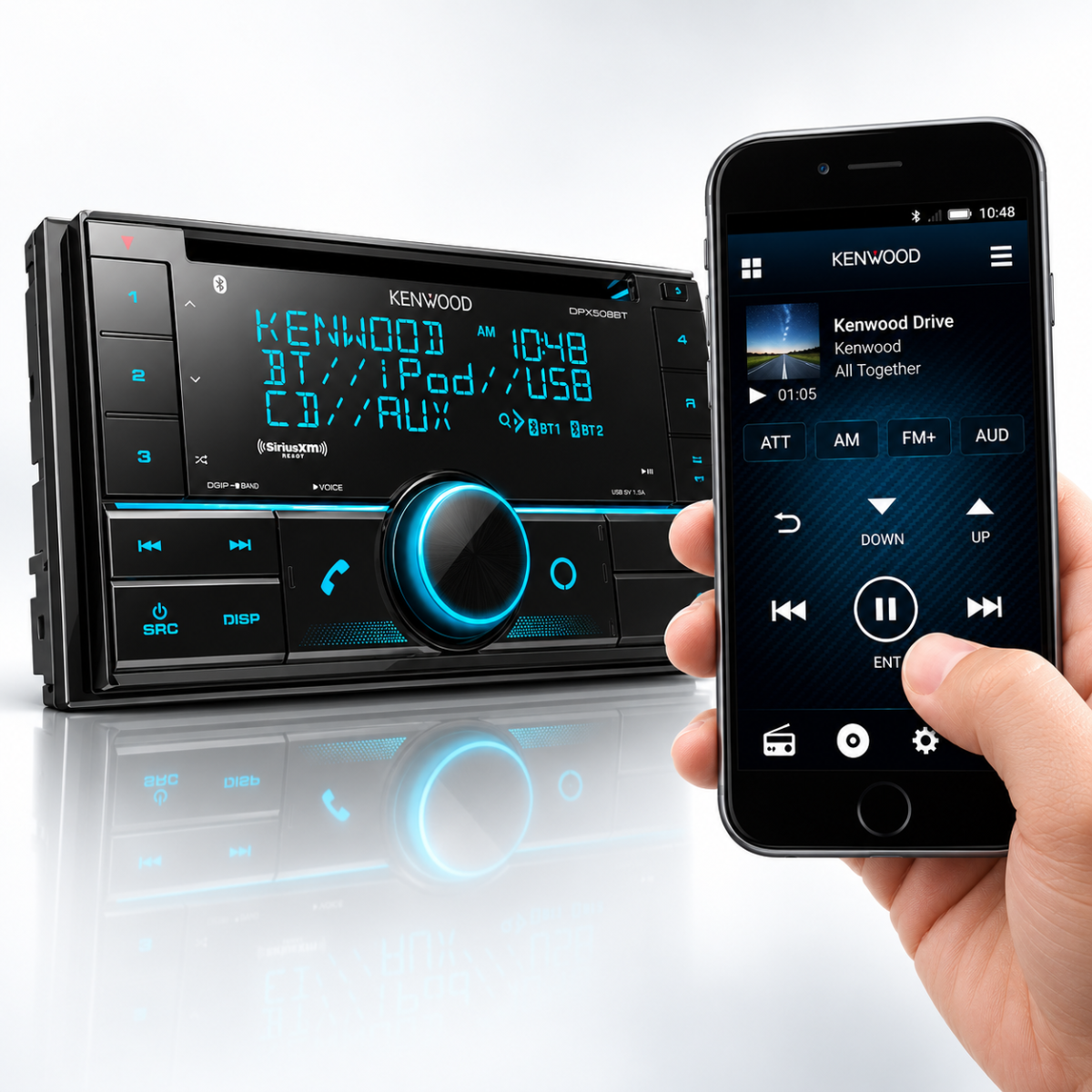

Kenwood Remote App Control

Take control of supported receiver functions directly from your compatible smartphone with the Kenwood Remote app.

Using Bluetooth, the app allows adjustment of many basic stereo controls without relying exclusively on the receiver’s front panel.

Available functions depend on smartphone and app compatibility.

Built-In MOSFET Amplifier

The Kenwood DPX505BT incorporates a 4-channel amplifier with:

• 50 watts maximum power per channel
• 22 watts RMS per channel

This allows the receiver to power compatible vehicle speakers directly.

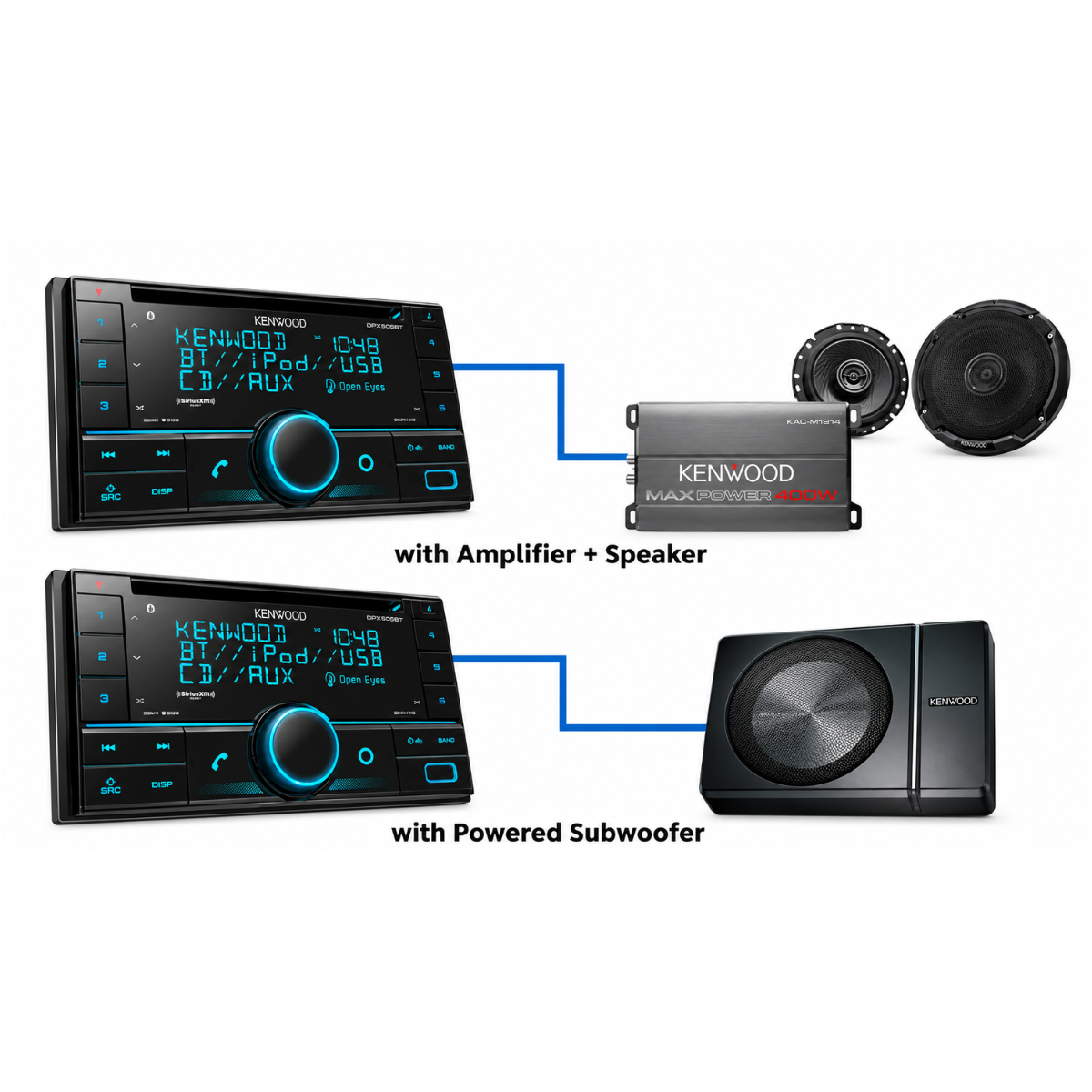

For customers planning a more powerful audio system, the DPX505BT also includes three pairs of 2.5V RCA preamp outputs for front, rear, and subwoofer connections.

These outputs support connection to compatible external amplifiers or powered subwoofers.

Steering Wheel Audio Control Compatibility

The DPX505BT can work with many vehicles equipped with factory steering-wheel audio controls.

Retaining those functions requires a compatible aftermarket steering-wheel control interface, which is generally sold separately.

Compatibility varies by vehicle make, model, and year.

Additional Convenience Features

• Front-panel Bluetooth access
• Compatible smartphone audio control
• English, Spanish, and French display-language options
• Adjustable sound and display settings
• FM/AM station presets
• Optional wireless remote control support
• RCA outputs for aftermarket audio expansion
• Traditional physical volume and source controls

Why Choose the Kenwood DPX505BT?

The Kenwood DPX505BT is an excellent option for drivers who prefer a traditional CD receiver but still want modern smartphone connectivity and detailed sound adjustments.

Its combination of Bluetooth calling, voice assistance, flexible audio inputs, and an adjustable 13-band EQ makes it a versatile replacement for many factory car stereos.

For compatible vehicles, it offers a straightforward way to improve music playback and audio control without requiring a touchscreen-based entertainment system.

Installation & Vehicle Compatibility

Will the Kenwood DPX505BT Fit My Vehicle?

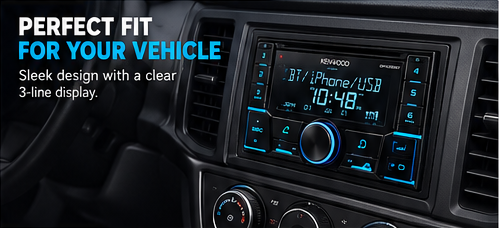

The Kenwood DPX505BT features a Double DIN chassis designed for installation in compatible vehicle dashboards.

However, a Double DIN opening alone does not guarantee installation compatibility.

Depending on your vehicle, additional installation accessories may be required, including:

• Vehicle-specific dash installation kit
• Wiring harness adapter
• Antenna adapter
• Steering-wheel control retention module
• Factory amplifier integration interface

These accessories are not necessarily included with the receiver.

Installation Dimensions

• Width: 7 inches
• Height: 3-15/16 inches
• Depth: 6-1/8 inches

Installation Recommendations

For safe and reliable operation:

• Use a compatible 12V negative-ground electrical system.
• Confirm the dashboard opening and available mounting depth.
• Select the correct wiring and antenna adapters.
• Securely install and position the supplied Bluetooth microphone.
• Connect external amplifiers through the appropriate RCA outputs.
• Follow the manufacturer’s installation instructions.

Professional installation is recommended, especially in vehicles with factory amplifiers, steering-wheel controls, or integrated electronic systems.

Important Fitment Note: Contact CarToyz with your vehicle’s year, make, and model if you need help confirming compatibility and identifying required installation accessories.

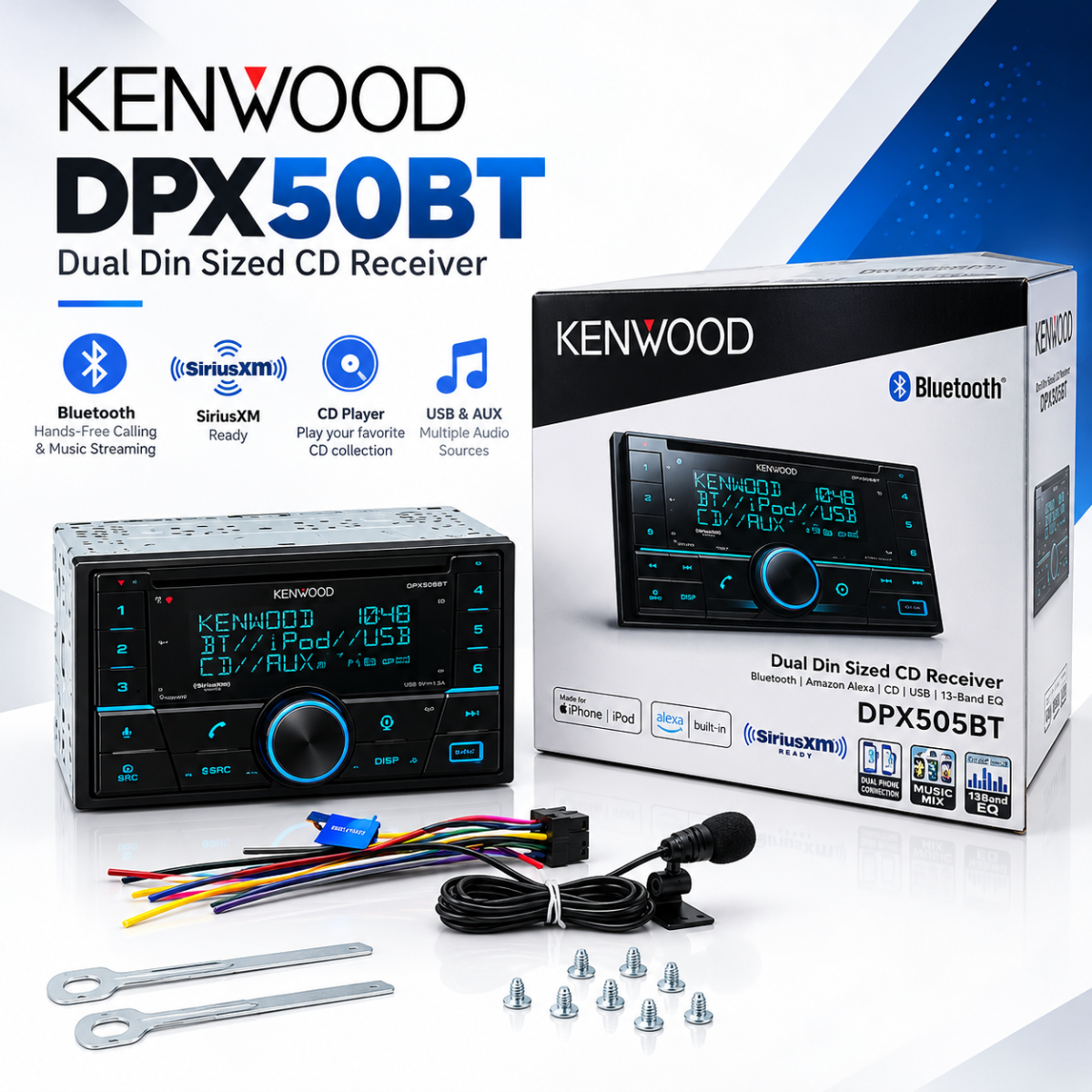

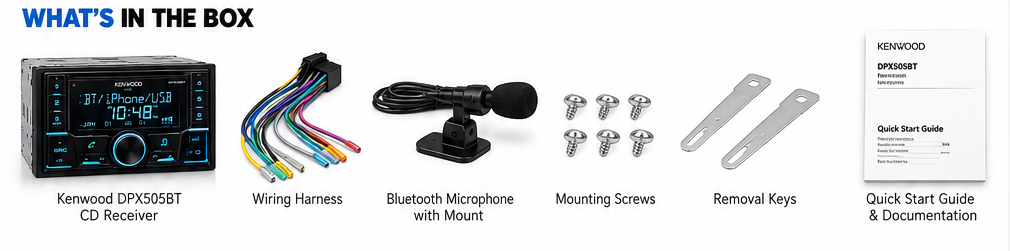

What’s Included

• 1 × Kenwood DPX505BT CD Receiver
• 1 × Wiring Harness
• 1 × Bluetooth Microphone with Mounting Bracket
• 6 × M5 × 8mm Round-Head Screws
• 6 × M5 × 8mm Flat-Head Screws
• Quick Start Guide
• Warranty Documentation

Sold Separately: SiriusXM tuner, compatible wireless remote, vehicle-specific dash kits, wiring adapters, and steering-wheel control adapters.

Package contents should be confirmed against the actual retail box before publishing.

Frequently Asked Questions

Does the Kenwood DPX505BT support Bluetooth?

Yes. The receiver includes Bluetooth 4.2 for wireless music streaming and hands-free phone calls using compatible smartphones.

Does the Kenwood DPX505BT have Apple CarPlay or Android Auto?

No. The DPX505BT does not support Apple CarPlay or Android Auto smartphone projection. It provides Bluetooth connectivity, supported USB/iPhone audio functions, and Amazon Alexa compatibility instead.

Does the Kenwood DPX505BT have a touchscreen?

No. It features a 3-line LCD text display with traditional physical controls.

Does the Kenwood DPX505BT play CDs?

Yes. It includes a built-in CD player that supports standard audio CDs and compatible CD-R/CD-RW discs, including supported digital audio recordings.

Can I connect two phones at the same time?

Yes. The dual-phone feature allows two compatible Bluetooth phones to remain connected for convenient switching during calls.

Can multiple people stream music through Bluetooth?

Kenwood Music Mix supports pairing up to five compatible Bluetooth devices, allowing users to switch between devices for music playback.

Does the Kenwood DPX505BT support Amazon Alexa?

Yes. With a compatible smartphone, the Alexa app, and an active internet connection, you can access supported voice-assistant features through the receiver.

Does it support SiriusXM?

Yes. The DPX505BT is SiriusXM Ready. A compatible SiriusXM tuner and active subscription must be purchased separately.

Can I connect a subwoofer or amplifier?

Yes. The receiver has three pairs of 2.5V RCA preamp outputs, including a dedicated subwoofer output, for compatible external audio equipment.

Can I change the button and display colors?

Yes. The receiver offers customizable variable-color illumination divided into three adjustable zones.

Does the Kenwood DPX505BT support FLAC audio?

Yes. Compatible FLAC files can be played through USB at resolutions up to 24-bit/96kHz.

Will it work with my steering-wheel controls?

Many factory steering-wheel audio controls can be retained using a compatible aftermarket interface. Support and required accessories depend on the vehicle.

Does it have a backup camera input?

No. The DPX505BT is a traditional audio receiver without a video display or backup camera input.

Will it fit my car?

The receiver uses a Double DIN chassis. Exact fitment depends on your vehicle’s dashboard space, mounting configuration, and factory electronics. Additional adapters or installation components may be necessary.

Is a remote control included?

No. A compatible wireless remote control is available separately.

Does it come with a manufacturer warranty?

Kenwood receivers may qualify for a limited manufacturer warranty when purchased through an authorized retailer, subject to applicable warranty terms. Confirm warranty eligibility and coverage with CarToyz before purchase.
