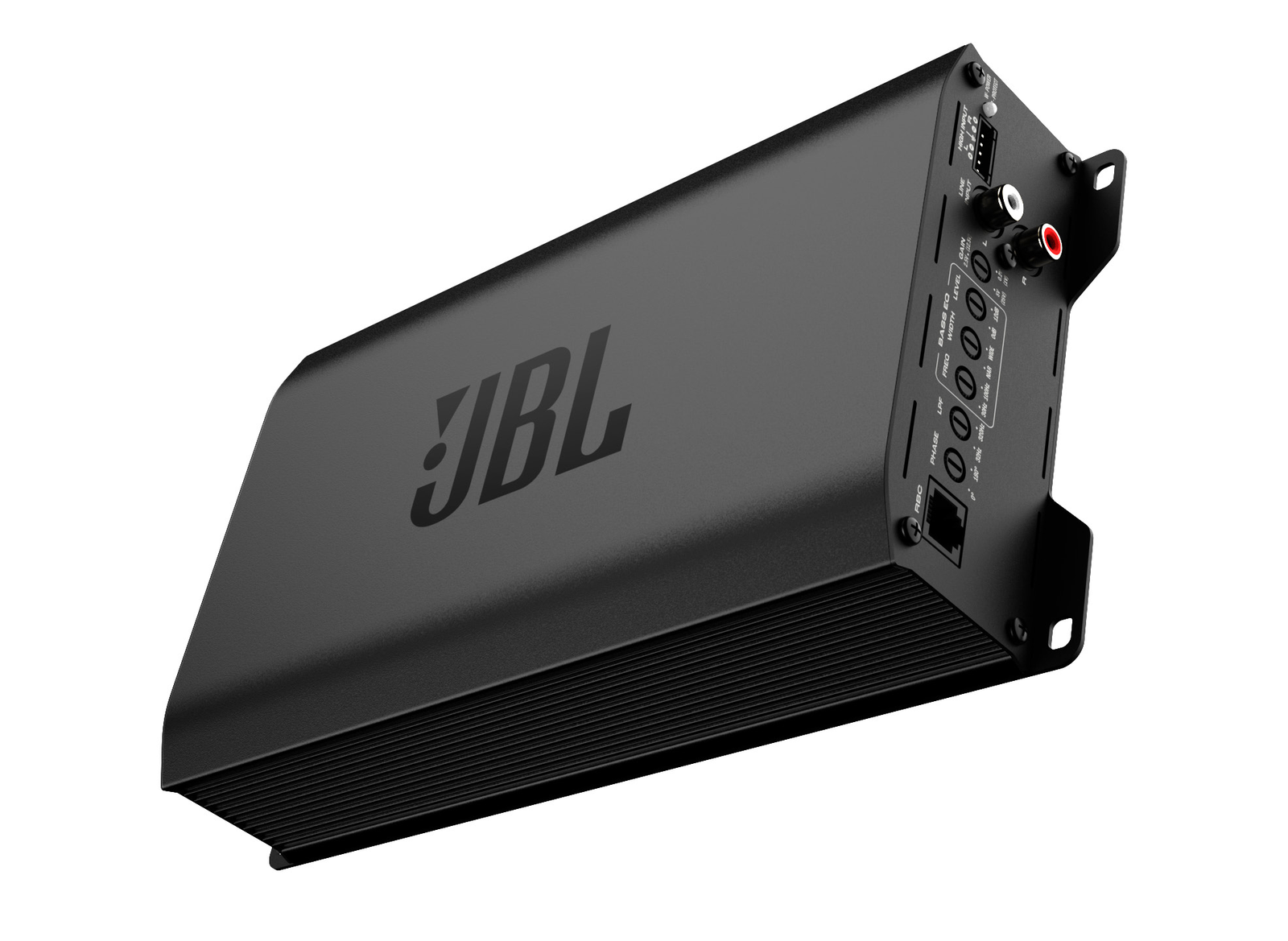

JBL Stage GT 50011 Mono 500 W Amplifier with Bass Remote
500 W RMS @ 2 Ω Class-D mono with RLC and tunable bass EQ
$249.95
Overview
Stage GT 50011 is a mono Class-D subwoofer amplifier rated 500 W RMS at 2 ohms and 300 W RMS at 4 ohms. A wired remote, variable phase, and bass EQ with adjustable level, width, and frequency (30–100 Hz) help tune the enclosure. Start/stop and OEM load detect support modern vehicles. Five hundred watts RMS at 2 ohms drives many single or dual-coil subs.
Product details
Half-kilowatt mono punch
Five hundred watts RMS at 2 ohms drives many single or dual-coil subs. At 4 ohms the amp still makes 300 W RMS for simpler wiring. Mount the chassis to solid metal with the supplied hardware and keep cooling fins in free air. Size power and ground cable for the fuse rating, and set input sensitivity with a multimeter or oscilloscope after the speakers are connected.
Bass EQ beyond a fixed boost
Level, width, and frequency controls (30–100 Hz) plus 0–180° phase let you shape the cabin boom without a separate processor. Mount the chassis to solid metal with the supplied hardware and keep cooling fins in free air. Size power and ground cable for the fuse rating, and set input sensitivity with a multimeter or oscilloscope after the speakers are connected.
Remote included
Wired bass remote and cable ship in the carton so level stays reachable from the front seat. Mount the chassis to solid metal with the supplied hardware and keep cooling fins in free air. Size power and ground cable for the fuse rating, and set input sensitivity with a multimeter or oscilloscope after the speakers are connected.
Key features
- Mono Class-D subwoofer amplifier
- 500 W RMS × 1 @ 2 Ω
- 300 W RMS × 1 @ 4 Ω
- Max power 1220 W peak
- Frequency response 10 Hz – 320 Hz ±1 dB
- Bass EQ level 0–12 dB with width and 30–100 Hz freq
- Phase 0°–180° variable
- Wired remote bass control included
- Fuse 30 A × 2
Specifications
| Brand | JBL |
|---|---|
| Model | Stage GT 50011 |
| SKU | STAGEA50011 |
| UPC | 050036412742 |
| Product type | Mono amplifier |
| Power @ 2 Ω | 500 W RMS × 1 |
| Power @ 4 Ω | 300 W RMS × 1 |
| Max power | 1220 W peak |
| Frequency response | 10 Hz – 320 Hz ±1 dB |
| Bass EQ | 0–12 dB; width narrow–wide; 30–100 Hz |
| Phase | 0°–180° variable |
| Fuse | 30 A × 2 |
| Remote | Wired bass remote included |
| Start/stop | Compatible |
| Channels | Mono |
Important notes
- Size power cable for 30 A × 2 fusing.
- Designed for subwoofer duty — not a full-range multi-channel amp.
- Start/stop and OEM load detect compatible.
What's in the box
- 1x Amplifier
- 1x Remote bass control
- 1x Remote bass control cable
- 2x Spare fuses
- 1x High-level input cable
- Mounting hardware per carton
- 2x JBL stickers
- QR owner manual
- Safety sheet
